SG-CB-2000A-100 - Genius - 7 Pin Controller For Bobcat® Loaders - 2 Port | Skid Steer Genius
This adapter is specially designed to plug into any Bobcat® 7 Pin connector and allow the operator to run up to 2 x 12 volt solenoids directly from the left and right paddle controls of your Bobcat®. Works on Bobcat® skid steer loaders as well as Toolcat® and Versahandler® machines.
What is amazing about this is that we have taken our engineering to another level. This controller features a unique latching circuit so that you do not have to hold your thumb down for 8 hours for continuous operation.
It works like this: Plug in our controller and your switching paddles will be transformed. On your left paddle, touch the bottom part of the paddle and it works in a momentary fashion. Touch the top and it latches. Touch either the top or bottom and it releases. The same goes for the right paddle. Amazing, right? This was all done because of feedback from customers like you. Now you can run accessories like sprayers, lighting and accumulators without holding your thumb down for hour after hour while trying to run your machine. Genius, pure Genius!!!
Toolcat and Versahandler owners: Plug it in the same way as on a skidsteer and use the console switchs (Olders Models) or the handle control switches to operate your attachments. It's that easy.
Takes about 1 minutes to install. Is 100% plug and play. This configuration is a plug mount so you can use it over and over on any attachment that has one or two solenoids to control. This is complete and ready for plug and play directly into any Bobcat® branded machine. It has an indicator LED to show you that you have power and that it is receiving commands from the Bobcat® machine as well as when the paddles are operating correctly.
What is included:

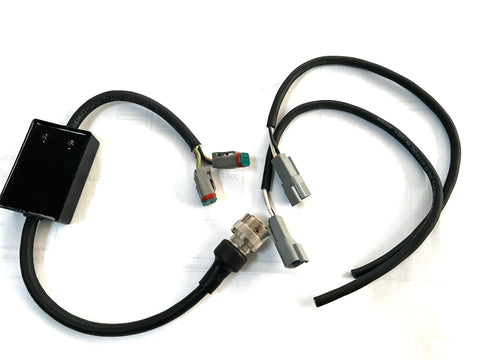

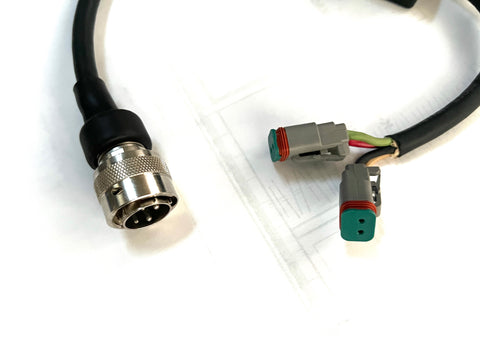

- CanBus Controller with 2 outputs via 2 x Deutsch DT06 Plugs. Up for latching or down momentarily control from your left stick for plug A. Up for latching or down momentarily control from your right stick for plug B.

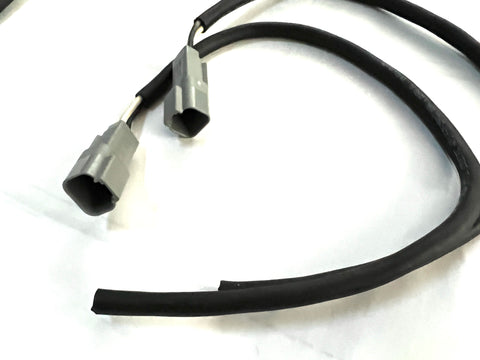

- 2 x 2 Pin DT06 Deutsch receptacles with an 18" pigtail to connect to your attachment solenoids from the controller.
- Easy to Follow Instructions
- Incredible factory support that is not available anywhere but from Genius.
Read more about how this product functions here.
This is not just a plug in adapter. There is a microprocessor with software loaded along with a IC driver circuit that enables this to work. That is why it costs more than just a plain old connector.
Bobcat Versahandler 923 - DOES NOT WORK WITH THIS MODEL BECAUSE IT DOES NOT HAVE AN ACD CONTROLLER.
This is not a Bobcat® product. This product is not endorsed by Bobcat®. We are in no way attempting to make you think this is a Bobcat® product. This product is optically isolated from the controls of your machine and can in no way damage your machine or controls. It is perfectly safe to use and will not damage a thing. If a dealer is attempting to tell you that your warranty will be voided if you use this product or that it will damage your machine, please call and report it to us. Skid Steer Genius is a specialty controls company. Our goal is to make anything you buy for your machine work on any machine. Others design and build in such a way as to stop you from doing this.
Bobcat®, the Bobcat logo and the colors of the Bobcat machine are registered trademarks of Bobcat Company in the United States and various other countries.
Bobcat Company is a subsidiary of Doosan Infracore Bobcat Holdings Co., Ltd., a wholly owned subsidiary of Doosan Infracore Co., Ltd.
All rights reserved.
We Also Recommend
SG-CB-4000A-100 - Genius 7 Pin Controller For Bobcat® Loaders, Toolcat & Versahandler - 4 Port | Skid Steer Genius
SG-CB-4008 - Genius 7 Pin (4 Output) | 8 Pin Output Controller For Bobcat® Loaders, Toolcat & Versahandler - 4 Port | Skid Steer Genius
QUESTIONS & ANSWERSAsk a Question
I have a Bobcat T590 with 7 pin. I'm need a harness for Bobcat 6 way dozer blade which has 14 pin harness.
You require 4 solenoid drivers.
CLICK HERE FOR THE CORRECT CONTROLLER
What product would I need to operate a wolverine power angle broom with a 2016 T595 Bobcat ( w/ 7 Pin )? I believe this is correct, just want to make sure.
my dealer code is not working trying to get some harnesses on order Central Nebraska Bobcat
All codes were cancelled for this year. You need to send your reseller certificate in and you you will receive a new code.
I have a Erskine 2010 Snow blower and it came with a pistal grip connection cord. Would like to convert the snowblower to a Bobcat 7 pin to run on my T595 Bobcat. Do you offer a harness that will work for this?
Here is the harness for the blower.
Here is the controller for the machine.
would this be able to run a 12v motor for snow blower chute direction (New holland Blower). Just needs full power 12 feeds as far as I know. The blower has a polarity reversing relay on it. I would need constant power and ground then 2 signal wires to work as is. If you have another way to make it work that would be grreat. I would need extra ends to hook up 3 attachments with single solenoids as well.
I built this product for bi-directiona controlled power.
I HAVE A 2005 T90 BOBCAT 7 pin and have 2022 TOPCAT Tree Shear model # ECSSRB that has a 7pin harness but not the same size. Do you have an adapter for this?
No. You have to either chop off the connector and install a 14 pin or change out the harness altogether. For the machine, you need a 6014. Hurry as we are down to our last few and we have been waiting for 2 years for parts with no end in sight.
I have a 324g john deere, will this work for my ffc snowblower? Has 2 electronic hook ups but they need to be able to reverse current
This product is not related to your question in any way. Please do not buy this item for your application. We have a new product which will be available soon for your application but it is not ready yet. Send us your contact information and we will contact you when they are ready to ship.
I have an 84” harley rake that I used with a case TR270 using a 14 pin connector. I now have a bobcat T66 with a 7 pin. This is a 2 coil single stem valve attachment. I just want to make sure I am in fact ordering the right part. Thanks!
This will work but you have to modify the attachment connection.
This item is plug and play. CLICK HERE
hello would this work on my volvo mc 115c its for a lazer box blade form bobcat giveme acall at 575-642-4952
No it will not. This is backwards to what you want. This is designed to plug into a Bobcat machine.
For a box blade, you will need to convert it. We can sell you the harness but you will need to work with a laser delaer to figure out the rest because they are all different.
I have a 2009 bobcat T190 with a 7 pin. I need to mate it to an older erskine model 1812 snowblower attachment that has a 4-pin connector. What product will I need for that?
Can you send photos of the connections and the actuators.
I’m trying to connect my bobcat to an old 4 pin Erskine snowblower attachment that runs the shoot portion from my joystick. Is this the product I need in order to do that?
Send us photos of the snow blower and connections. I need to see what you are looking at.
I have a T590 with a 7 pin, I’m installing an FFC blower that has a electric rotation chute and an electric tip on the chute. Will your SG-CB-2000A-100 work for me? Thanks
No. This must be an old blower because the new ones use electric over hydraulic controls. For the older models, we have the following product available.
CLICK HERE FOR SETUP VIDEO
I have a bobcat t650 with the 7 pin connector but i bought a grouser 6 way dozer blade that someone cut the plug off of so i only have two wires now so i need a 7 pin connector with a controller on it i think so i can control the functions threw the two joysticks, will this work for that?
Yes this will work.
Can this be programmed to make the switches all momentary? I want to run a Metal Pless blade wings and not have latching on. Will I need to get the 6 function one with the 14pin output to do what I need?
The top latches while the bottom is momentary. There is no way to change that. The 6014 allows you to program what you want.
I Have a 2 function Tree shear Will this 2000 model make it work on my Bobcat with a 7 pin
Do y’all make this with one 12v output? I found it listed on skid steer solutions but not here
That's what this is for. CAN input and 12 volt output when you push a switch.
