Revolutionize Your Bobcat® Attachment Control

Product Overview

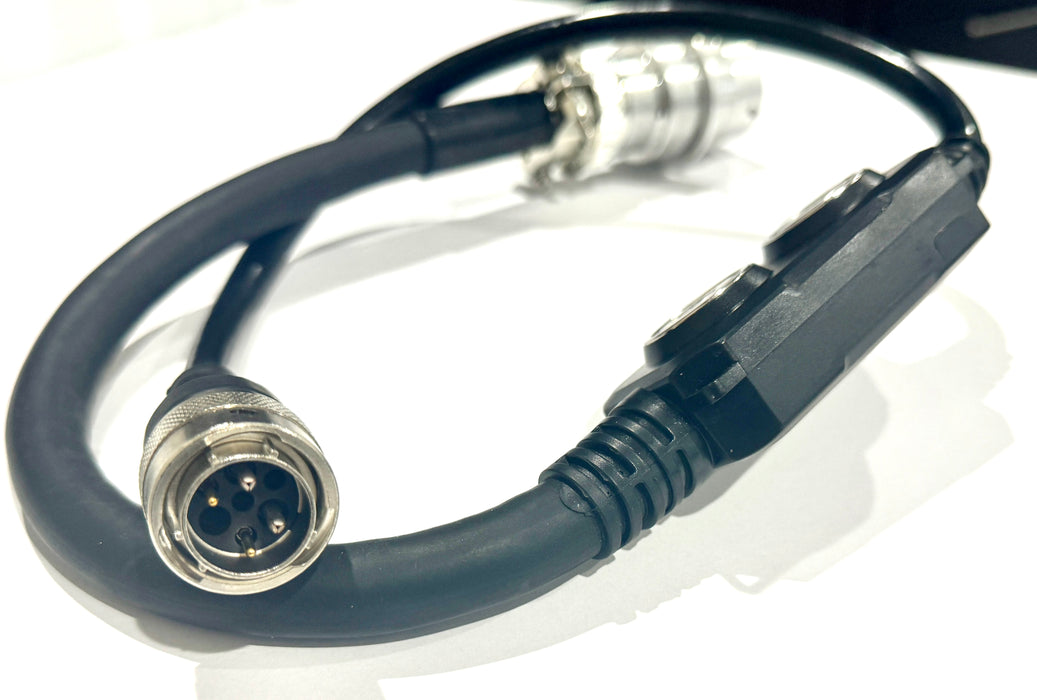

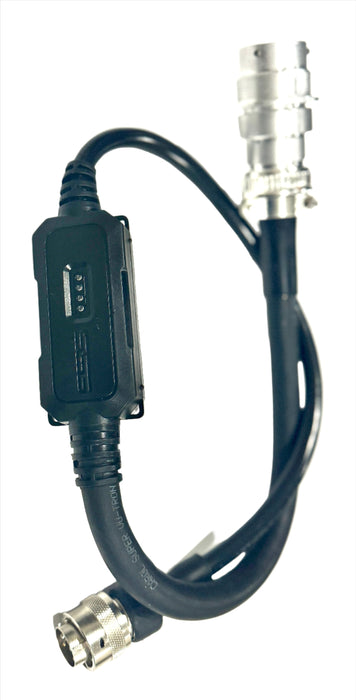

The SG-CAN60-14 is a premium CAN bus controller from Skid Steer Genius, built for modern Bobcat® machines with 7 pin CAN connectors. It bridges your machine's advanced CAN system to the traditional Bobcat® 14 pin attachment layout, giving you clean, machine integrated control of up to six solenoid functions directly from your joystick controls.

Model: SG-CAN60-14 (6 Output Configuration)
Compatibility: Bobcat® skid steer loaders, Toolcat®, and Versahandler® machines with 7 pin CAN connectors
Output: Standard Bobcat® 14 pin layout for broad attachment compatibility

The CAN60 features a six output configuration with a 14 pin connector designed around the traditional Bobcat® 14 pin layout. This permits compatibility with attachments from Takeuchi, Gehl, Kubota, Mustang, Case, and New Holland, supporting up to six control plugs with K pin power.

Key Features

  • Plug and play installation: Connects directly to your machine's 7 pin port with no wiring modifications needed.
  • Direct joystick control: Operate up to 6 x 12V solenoids using your existing stick buttons.
  • Industrial grade durability: Robust components for reliable performance in tough conditions.
  • Optically isolated design: Helps protect your machine electronics, safe and warranty friendly.
  • Versatile attachment support: Ideal for multi function attachments such as grapples, mulchers, snow blowers, and more.

CAN60 Features

  • Software compatibility with all Bobcat machines, including Pilot Control, Hand and Foot Control, Toolcat, Versahandler, and imported Bobcat machines from the Czech Republic.
  • Durable molded plastic housing with enhanced cable retention, no more resin.
  • Cable retention design allows connectors to detach first during accidents, making repairs easier.
  • Equipped with two 125 pound magnets for secure attachment to your machine frame in various locations.
  • Improved temperature tolerance for both high and low extremes.
  • 9 amp output per channel, regulated to a maximum of 15 amps to protect your machine fuse.
  • Two channels can be programmed to latch (C and D or A1 and A2).
  • Simplified latching programming for user convenience.
  • User friendly LED output for clear visibility of controller status.
  • Additional output protection against unreliable solenoids commonly found in overseas manufactured attachments.

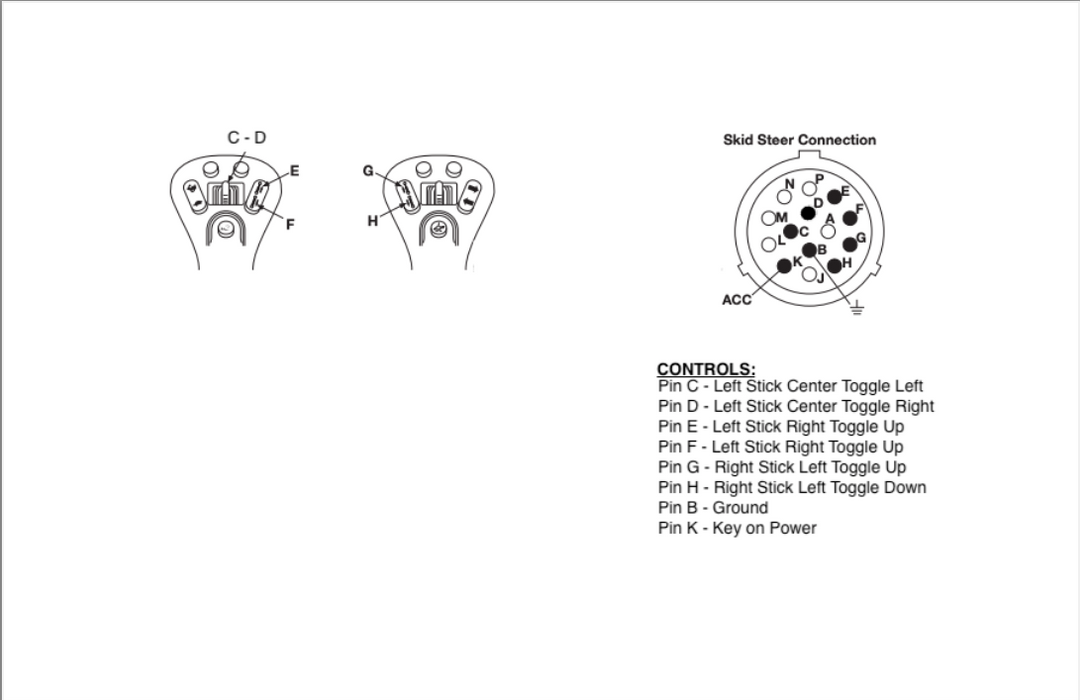

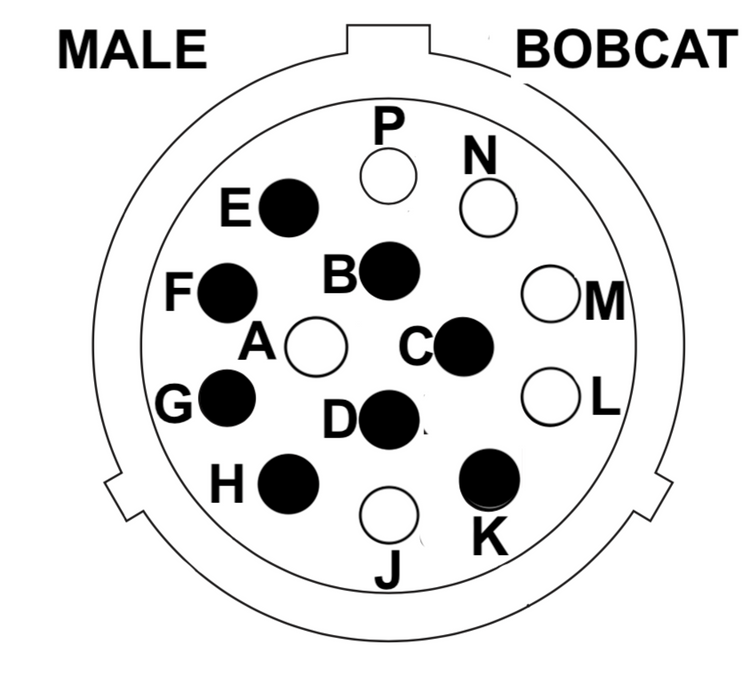

Outputs and Pin Notes (See Technical Specifications)

A1 / A2 (Pins C / D)

Programmable momentary or latching

B1 / B2 (Pins E / F)

Momentary operation only

C1 / C2 (Pins G / H)

Momentary operation only

Power and Ground

Ground: Pin B
K pin: Constant keyed power (Pin K)

Why Choose Skid Steer Genius

Skid Steer Genius specializes in solving attachment compatibility issues. The CAN60 series represents years of engineering to overcome supply chain challenges and deliver superior reliability. Upgrade from basic adapters to true machine integrated control.

Show full description +
Technical Information

Installation:

Installation takes approximately one minute and is 100% plug and play. This boom mount configuration allows the controller to be used repeatedly across any attachment with up to six solenoids. The adapter ships fully assembled and is ready to connect directly to any Bobcat® branded machine. It includes integrated power and communication features, plus a port status indicator LED to confirm the unit is powered and receiving commands from the Bobcat® machine.

Upgrade from the inferior control boxes supplied by attachment manufacturers and transition to reliable machine integrated controls.

Important Note for Cat D-Series Attachments:

To adapt, reposition pins G to A and H to J.

For high flow setups, be sure to push the K pin back to disconnect the high flow sense. This pin functions as a ground in Cat attachments, but it carries +12 volts in Bobcat machines. If connected incorrectly, it can blow your fuse.

Important Note:

The Bobcat 2020+ Versahandler 923 is NOT compatible with this model because it does not feature an ACD controller.

Programming Instructions:

Channels C and D are pre configured as momentary controls. If you would like them to function as locking switches, each channel can be individually programmed to latch.

To program:

  1. Turn off the key.
  2. Select either A1 or A2.
  3. Press and hold the selected button while turning on the machine.
  4. Continue holding the button for 5 seconds until the LEDs flash.

Your channels are now programmed and ready for use.

Product Outputs:

  • A1/A2 (Pins C/D): Configurable to latch. One or both can be set to latch while the remaining outputs stay momentary.
  • B1/B2 (Pins E/F): Designed for momentary operation only.
  • C1/C2 (Pins G/H): Designed for momentary operation only.
  • B (Ground) and K: Provides a constant output.

Operational Limitations:

Due to fuse and circuit constraints, only two outputs can operate simultaneously. Attempting to set three outputs to latch will reset the circuit and require reprogramming of the adapter. This adapter ships with all outputs configured for momentary operation by default.
