Genius 7 Pin (6 Output) Controller For Bobcat® Loaders, Toolcat & Versahandler - 6 Port | SG-CAN60-14
NEW: We have encountered persistent issues with our 6014 model related to parts sourcing for the past three years, as it was originally designed using automotive drivers and microprocessors. In contrast, the CAN60 utilizes industrial drivers and processors, which are readily available from multiple sources, ensuring that our shortages will soon be resolved. Additionally, we have switched to manufacturers capable of assembling these units in a more robust and efficient manner. We are thrilled to introduce the new version of one of our flagship products!
Watch the Video Here (Youtube)
This is a true Genius Controller specifically designed for solenoid controls only. Specifically designed to connect to any Bobcat® 7-pin connector, this adapter enables operators to control up to six 12-volt solenoids directly from the stick controls of their Bobcat®. It is compatible with Bobcat® skid steer loaders, as well as Toolcat and Versahandler machines.
The CAN60 is a six-output controller featuring a 14-pin connector, designed using the traditional Bobcat 14-pin layout. This allows compatibility with Takeuchi, Gehl, Kubota, Mustang, Case, and New Holland attachments, supporting up to six control plugs with K pin power.
For Cat D-Series attachments, you'll need to reposition pins G to A and H to J. If your attachment is set up for high flow, make sure to push the K pin back to disconnect the HF sense. While this pin functions as a ground wire in Cat attachments, it carries +12 volts in Bobcat machines, which could blow your fuse if left connected.
CAN60 Features:
- Software compatibility with all Bobcat machines, including Pilot Control, Hand/Foot Control, Toolcat, Versahandler, and the Imported Bobcat machines from the Czech Republic.
- A molded plastic housing with enhanced cable retention—no more resin!
- Designed with cable retention that allows connectors to detach first in the event of an accident, making repairs easier.
- Equipped with two 125-pound magnets for secure attachment to your machine's frame in multiple locations.
- Improved temperature tolerance for both high and low extremes.
- 9 Amp output per channel, regulated to a maximum of 15 amps to protect your machine's fuse.
- Two channels can be programmed to latch (C,D or A1/A2).
- Simplified latching programming for ease of use.
- User-friendly LED output for clear visibility of controller status.
- Additional output protection against unreliable solenoids often found on overseas manufactured attachments.

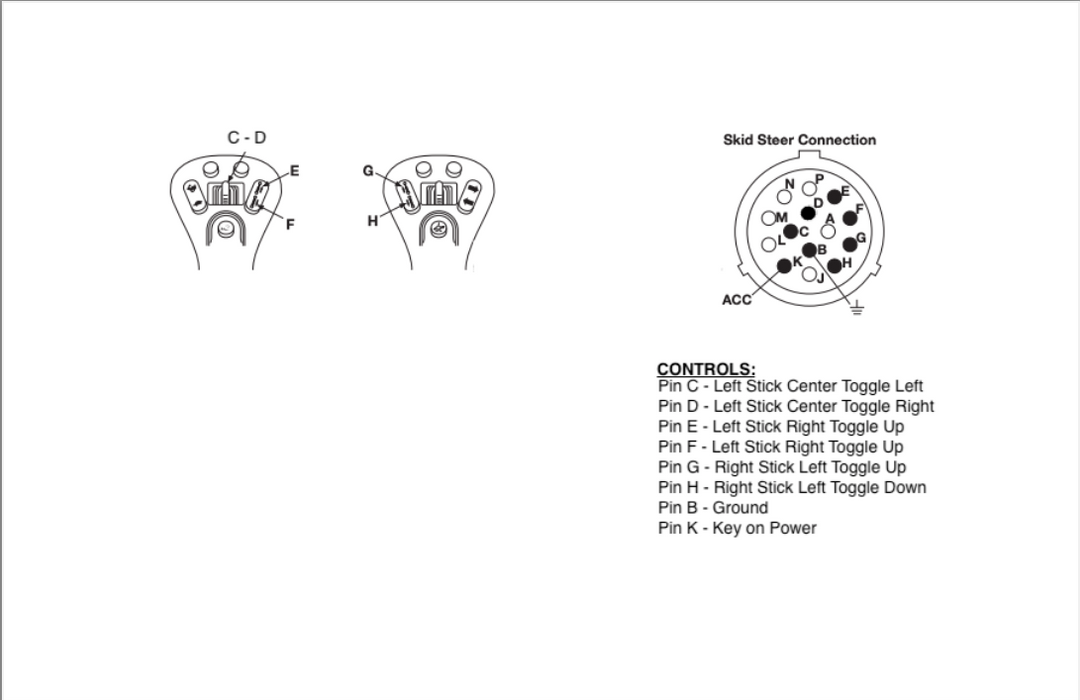

Outputs include:
- A1/A2 - Pins C/D: One or both can latch, while the others remain momentary.
- B1/B2 - Pins E/F: Momentary only.
- C1/C2 - Pins G/H: Momentary only.
- B - Ground & K: Constant output.
Due to limitations with fuses and circuits, only two outputs can operate simultaneously. Attempting to make three latch will reset the circuit, requiring reprogramming of the adapter. This adapter is shipped with all outputs configured for momentary operation only.
Installation takes about one minute and is 100% plug and play. This boom-mount configuration allows repeated use on any attachment with up to six solenoids to control. The adapter comes complete and ready to connect directly to any Bobcat® branded machine, featuring power, communication, and a port status indicator LED to confirm operation and command reception from the Bobcat® machine.
Say goodbye to the inferior control box provided by manufacturers and transition to true machine controls!
How to Program:
Channels C and D are configured and shipped as momentary controls by default. However, if you want them to function as locking switches, you can program each one individually to latch.
To do this, turn off the key and select either A1 or A2. Hold the selected button down while turning on the machine. Continue to hold the button for 5 seconds until you see the LEDs flash. Your channels are now programmed and ready for use.
CLICK HERE TO DOWNLOAD THE USER MANUAL
or Scan this QR
Important Note: The Bobcat 2020+ Versahandler 923 is NOT compatible with this model because it does not feature an ACD controller.
Disclaimer:
This is not a Bobcat® product. This product is not endorsed by Bobcat®. We are in no way attempting to make you think this is a Bobcat® product. This product is optically isolated from the controls of your machine and can in no way damage your machine or controls. It is perfectly safe to use and will not damage a thing. If a dealer is attempting to tell you that your warranty will be voided if you use this product or that it will damage your machine, please call and report it to us. Skid Steer Genius is a specialty controls company. Our goal is to make anything you buy for your machine work on any machine. Others design and build in such a way as to stop you from doing this.
Bobcat®, the Bobcat logo and the colors of the Bobcat machine are registered trademarks of Bobcat Company in the United States and various other countries.
Bobcat Company is a subsidiary of Doosan Infracore Bobcat Holdings Co., Ltd., a wholly owned subsidiary of Doosan Infracore Co., Ltd.
All rights reserved.
We Also Recommend
Customer Reviews
QUESTIONS & ANSWERS
Ask a Question-
We have a bobcat t590 2015 7pin machine and want to use a cat angle blade with a 14 pin input year 2017 which adapter do we require many thanks Richard
This is the correct kit. CLICK HERE
-
I just purchased a Edge tree shear with rotation. There is a two pin/wire connection to the solenoid. I have seven pin on my bobcat. I saw your video #110 for a single channel 7 pin controller, but I cannot find it to order on your website. I believe it is a cb1000 controler.
We did away with the single channel because they were 2 channel units with one less connector anyways. CLICK HEREfor the current model.
-
I work for a municipality. We typically order under a Purchase Order. Would it be possible to set you up as a vendor and order the following: Genius 7 Pin (6 Output) Controller For Bobcat® Loaders, Toolcat & Versahandler - 6 Port | SG-CAN60-14 We are looking to use a Bobcat T-66 Machine with a Caterpillar PC310 Cold Planer. Thank you
Our controllers will work for this. Sorry but we do credit cards only because we are a small company with no accounts receivable department. Maybe you could buy from a reseller that accepts PO's.
-
I have a kubota svl 97 and a couple bobcat attachments with 7 packs n connections. Will this work?
No it will not. It is the opposite. You need harnesses depending on which attachments you have. CLICK HERE FOR DETAILS
-
I have a T86 and just purchased a HLA snow wing with a 14 pin connector, will this adapter work to allow me to run all functions. Is there any setup I need to do or basically just plug it in a good to go? Thanks
Yes it will work. Just plug it in and go.
-
Greetings Does this unit turn a 7 pin into a 14 pin bobcat unit? I have a Halverson wood processor that that will run with the 14 pin bobcat plug.
Correct.
CLICK HERE FOR INSTRUCTIONS -
Good Morning, I am looking to run a Bobcat Saw with a module part# 6697961. I would like to know how I can make my new Case TR340B (14 pin) run my bobcat Saw. I currently have 7 pin on my attachment and my current Bobcat Skid Steer. I would like to be able to run my new Case and my older Bobcat. Would this part# SG-CAN60-14 and also part# SG-BPH-14-6-9DP/DT/DN eliminate the bobcat module on the attachment? Allow me to run both both my machine the Bobcat CTl and the Case? THANKS
YES. That is correct.
-
How long of a wait time to get two of these 6014 adapters
They are being shipped now.
-
I have a new 2024 Bobcat T-76, will this adapter work with my older 14 pin attachments?
Yes. Even pinned the same as the old attachments.
-
Do you offer a military discount? I want to connect my t630 to an S 24 stump grinder with a 14 pin connector.
Sorry bu we currently do not.
-
I have 2 older attachments. A bobcat 80 Dozer and a bobcat SB 200 Snowblower. Both have a 14 pin connector. Now I have a newer bobcat, a 2019 S595 with 7 pin. Wondering what I need to run both attachments on the newer machine. Is the SG-CAN60-14 truly plug and play? Thanks
Yes. The CAN60 is fully plug and play on all Bobcat models and provides up to 6 channels. It is all that you need. We will be shipping by the end of May 2024.
-
Do you already have it in stock?
Yes, but I can see the inventory dropping by the minute.
-
Is this what I would need in order to operate the attachment without having a joystick inside the machine?
Yes but please note the ship date. We have the older model in stock now. SG-CB-6014
