14 Pin Test Box (Break Out Box) | SG-TB14-100

14 Pin Test Box (Break Out Box) | SG-TB14-100

by Skid Steer Genius
Translation missing: en.product_price.item.price.range_html
$295.00
from $295.00
$295.00
SKU SG-TB14-100
Description

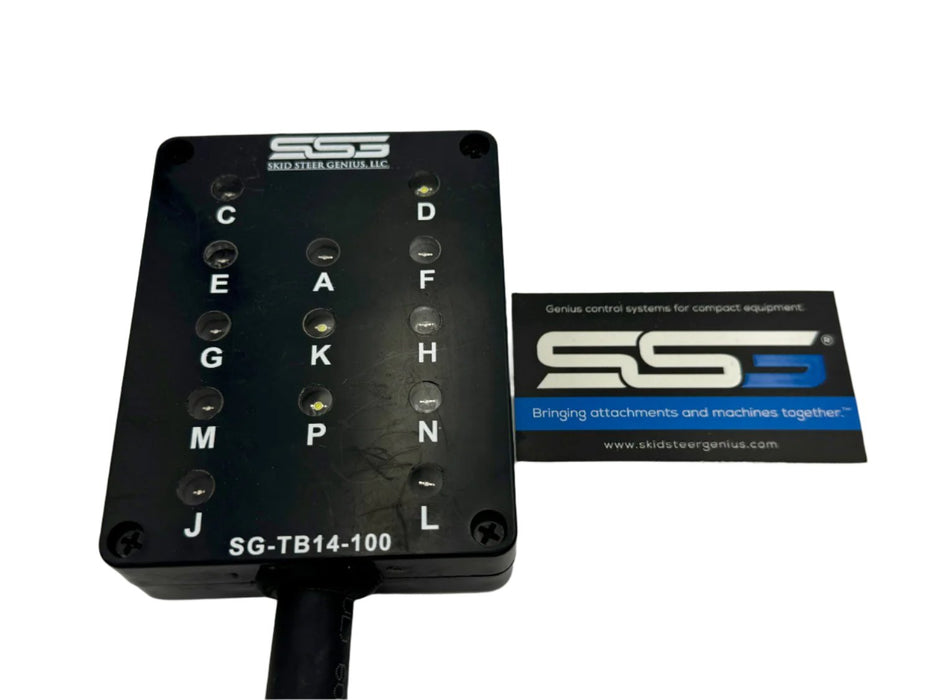

14-pin Deutsch HD break-out (test) box for diagnosing skid steer attachment control issues. Plugs inline between the machine's 14-pin port and the attachment harness — provides individual LED indicators and test points for each of the 14 pins so you can verify signal output and continuity without a meter.

  • Connector type: Deutsch HD 14-pin (male and female pass-through)
  • Function: inline break-out box with individual pin indicators and test points
  • Compatible with: Bobcat, John Deere, Kubota, Case, Takeuchi, and other 14-pin skid steer machines
  • Diagnostic use: verify pin signals, continuity, and wiring on 14-pin attachment circuits
  • SKU: SG-TB14-100
Technical Information

Compatible Models:

  • Kubota
  • Cat D Series
  • Gehl
  • Takeuchi
  • Case
  • New Holland
  • Old Bobcat (14 Pin)

Important Note:
For John Deere machines, you'll need to adjust the ground pin from position B to A. This modification allows exclusive compatibility with John Deere models but will make the adapter incompatible with other brands. Please ensure this product is suitable for your machinery needs.

Key Features:

  • Covers all main control pins, including extended ones for grader and side boom mower controls.
  • Simplifies operation by clearly defining button functions, removing guesswork.
  • Not compatible with 8-pin machines such as older Cat A, B, C Series ASV, and Terex models.

Shipped since September 2023, this product has been proven effective. Make sure this is the right product for your application.
