Bobcat 7-Pin Power Pin Removal Tool for Large-Gauge Trident Connector Pins | Skid Steer Genius

Bobcat® 7 Pin Power Removal | LI-0411-337-1205

by Skid Steer Genius
Translation missing: en.product_price.item.price.range_html
$5.00
from $5.00
$5.00
SKU LI-0411-337-1205
Description

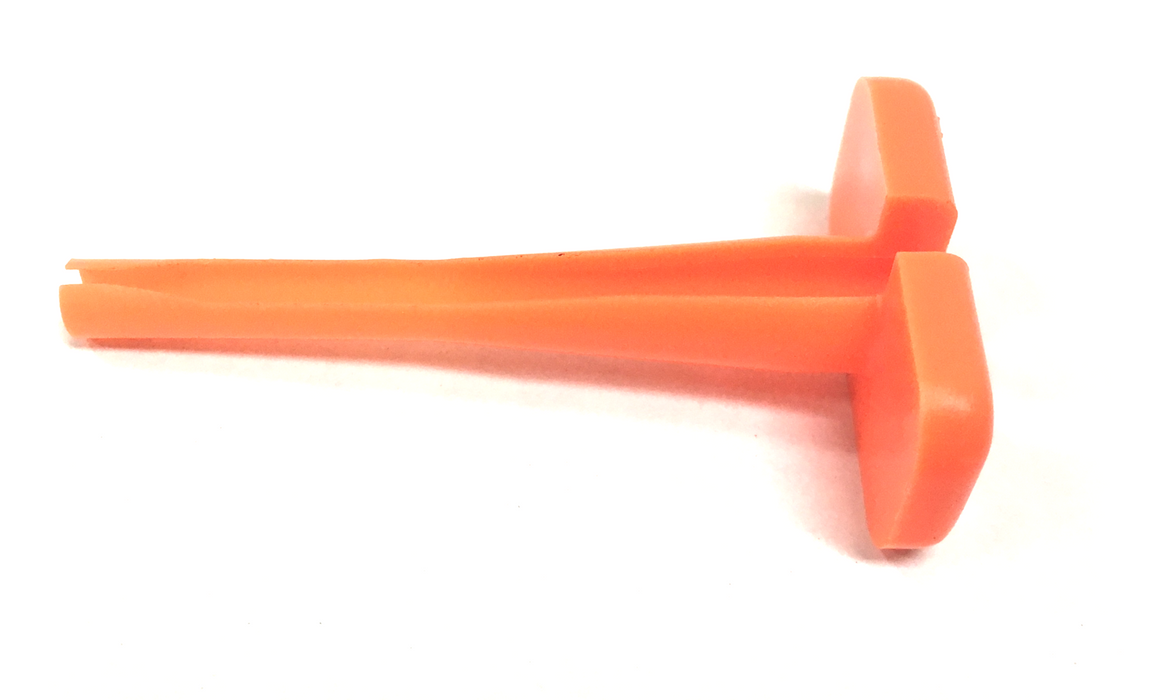

Individual Deutsch HD pin removal tool for the power (large-diameter) contacts in the Bobcat 7-pin Trident connector. Use to remove and reinsert power pins during harness repair or connector rebuild without damaging the pins or housing.

  • For: Power (large) pins in Bobcat 7-pin Trident connectors
  • Use case: pin removal and reinsertion during harness repair
  • Part number: LI-0411-337-1205
  • Note: CAN signal pins require a different removal tool (see LI-0411-240-2005)
Technical Information

How does it work?

On the face of the connector, carefully slide the tool over the pin or socket and give it a 1/4 turn until you feel it engage.  Carefully tug on the wire from behind the connector until it comes out of the connector.  If it is still stuck, then pull the tool out slightly and turn again as you push it back in.  This is because it does not always grab all of the barbs in the connector.  It does not take any muscle to do this, only technique.  Using muscle will only cause you to damage the connector or the tool.  Be careful.  Take your time.

Disclaimer

Disclaimer:

This is not a Bobcat® product.  This product is not endorsed by Bobcat®.  We are in no way attempting to make you think this is a Bobcat® product.

Bobcat®, the Bobcat logo and the colors of the Bobcat machine are registered trademarks of Bobcat Company in the United States and various other countries.
Bobcat Company is a subsidiary of Doosan Infracore Bobcat Holdings Co., Ltd., a wholly owned subsidiary of Doosan Infracore Co., Ltd.

All rights reserved.
