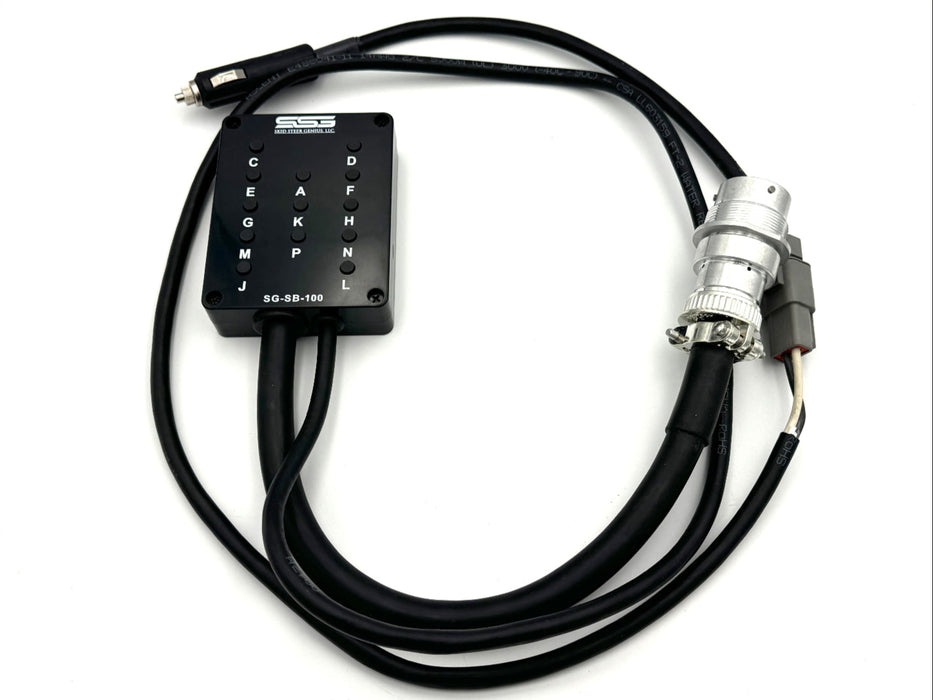

14 Pin Attachment Test Box | SG-SB-100

14 Pin Attachment Test Box | SG-SB-100

by Skid Steer Genius
Translation missing: en.product_price.item.price.range_html
$295.00
from $295.00
$295.00
SKU
Description

Breakout test box for Deutsch HD 14-pin attachment connectors. Plugs inline between a controller or machine port and the attachment harness, providing individual indicator lights and test points for each pin to diagnose wiring and signal issues without a multimeter.

  • Connector type: Deutsch HD 14-pin pass-through (attachment side)
  • Function: inline break-out test box with per-pin indicator lights and test points
  • Compatible with: Skid Steer Genius controllers with 14-pin output, and any 14-pin attachment harness
  • Use: diagnose solenoid wiring, verify controller outputs, test attachment circuits
  • SKU: SG-SB-100
Technical Information

Compatible Attachments made for:

  • Kubota
  • Cat D Series
  • Gehl
  • Takeuchi
  • Case
  • New Holland
  • Old Bobcat (14 Pin)

Important Note:
For John Deere machines, you'll need to adjust the ground pin from position B to A. This modification allows exclusive compatibility with John Deere models but will make the adapter incompatible with other brands. Please ensure this product is suitable for your machinery needs.

Key Features:

  • Covers all main control pins, including extended ones for grader and side boom mower controls.
  • Simplifies operation by clearly defining button functions, removing guesswork.
  • Not compatible with 8-pin machines such as older Cat A, B, C Series ASV, and Terex models.
  • 12 Outputs with corresponding buttons marked with the matching output pin in the 14 pin connector
