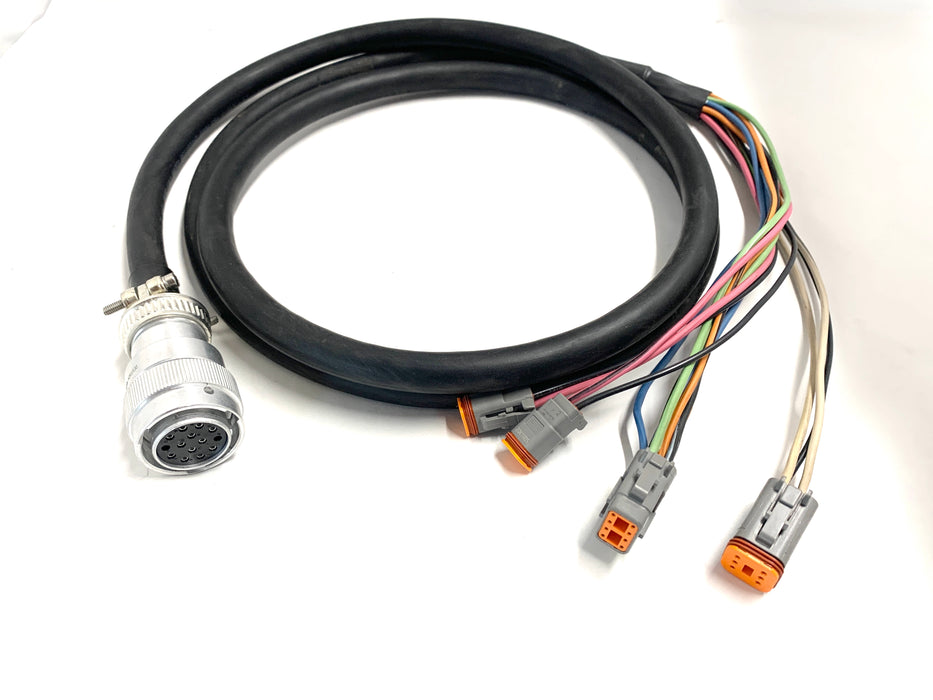

SG-BPH-GW-100 - Bobcat - Grader Adaptor Harness
NEW 96"/108" BOBCAT GRADER ONLY (Possibly some 84"). Check the Attachment Selector with serial number first to be sure this is correct one. Also check the connections on your grader box and verify the connectors.
These are harnesses made by Genius and enable you to operate the 96/108" grader with 14 pin standard controls. It was designed to operate with their rental box. That's not what we use it for.
How does it work?
Unplug your existing 7 pin harness on your attachment. Plug this harness back into the controller. Using one of our 10 Channel Super Controllers, you can directly plug your Bobcat grader into our controller and have 100% control on any brand of machine including laser receivers. You are no longer bound to the Bobcat® company to operate your attachment. Freedom at last!
This harness may work with other attachments, but gather your serial number and check with us first. If in doubt, call us.
Verify Your Grader Serial Number Here.
This harness is for graders with Serial #6480001631 and above. If your serial number is not in this range try P/N 6725383.
Some graders do not come readily adaptable for this harness and we have no way of knowing until we see your set-up as it all depends on how the original customer ordered the grader to be configured. You may require a replacement solenoid harness for this to connect to. Please check your connections or take a photo and send it to us before you order.
This is not a Bobcat® product. This product is endorsed by Bobcat®. We are not. We are not Bobcat® dealers and are not endorsed to sell their products. We are just people who try to help machine owners get their attachments to work. We are using this product for something they did not intend it for. They make this product so you can connect your grader to their rental box which is merely a $900 plastic box with switches. We use it on our Super Controller which is a digital controller that we specifically designed to alleviate the agony of using their box.
Bobcat®, the Bobcat logo and the colors of the Bobcat machine are registered trademarks of Bobcat Company in the United States and various other countries.
Bobcat Company is a subsidiary of Doosan Infracore Bobcat Holdings Co., Ltd., a wholly owned subsidiary of Doosan Infracore Co., Ltd.
All rights reserved.
We Also Recommend
SG-BPH-14-6-9DP/DT | 14 Pin Female to Delphi 2 Pin Harness - Attachment Side - 6 Output
SG-BPH-8-4-9DP/DT - 8 Pin Female to Delphi 2 Pin Harness - Attachment Side - 4 Output | Skid Steer Genius
QUESTIONS & ANSWERSAsk a Question
I have a new Takeuchi TL8R2 Hi Flow loader. I am needing the Bobcat Planer model number 24PLA to hook up and work on my Takeuchi machine. The S/N on the Planer is - AJN701362 I found the part number on your bobcat page but when clicked is does not work and says page unavailable. The part number is showed for the planer attachment and Takeuchi brand was: SG-BPH-14-7-9DP/DT If this part is not available do you have one that will work for what I am trying to do.
Sorry. This is the replacement harness. Instructions are on the video page.
I have a 2022 Takeuchi TL10V2 and would like to use my Bobcat Grader 96 with lasers on it. What Components will I need?
Will the BC-7196479 work on a bobcat broom to a Cat
Our products and Bobcat's can be found here.
We are not a Bobcat dealer so if you decide to go with their harness, you will need to contact them.
I have a 2018 t595 bobcat 7 pin hook up on machine... I bought a 2017 hla 3200w snow wing Looking for Harness to run this properly thru joysticks without separate toggle or other things Can you help
I am needing to run a Bobcat 40PSL milling head on John Deere 331G. What kit do I need to purchase?
Use the Mill/Planer harness found at this link.
In the future please use the guide that we designed just for this pupose.
