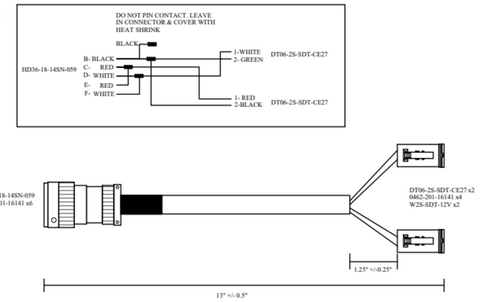

Chinese Auction 14 Pin Control Kit - Dual Control
Use this kit on 14 Pin machines like Kubota, New Holland, Cat D Series, John Deere, Gehl, Etc. Includes 2 x Din connection harnesses.

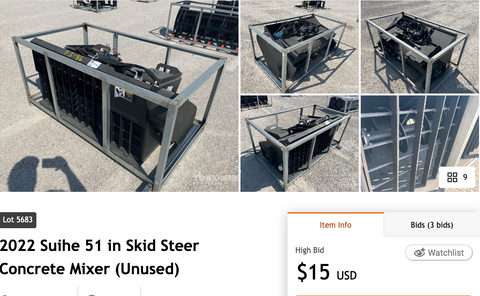

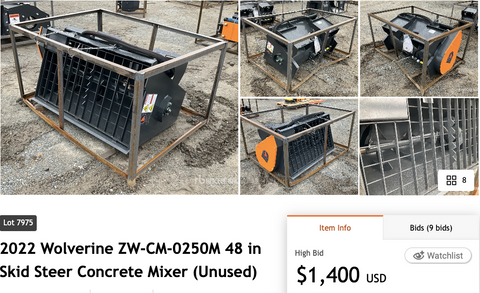

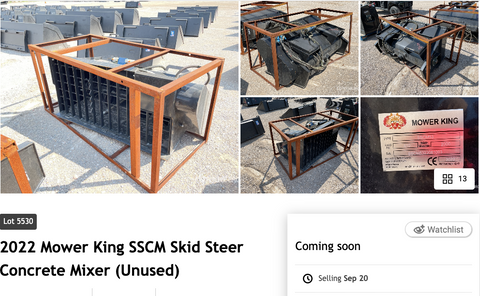

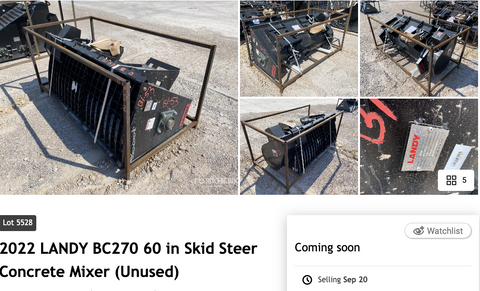

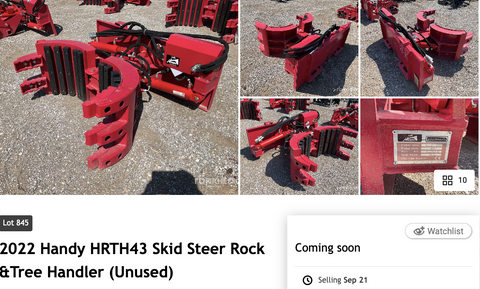

These are attachments generally sold through RB Auctions or on eBay.
Current Names Being Used that this kit is designed to fit. They add names as soon as people realize they are not real. There are no companies in the USA or parts.
Land Honor, Wolverine, Handy, Kit Containers (HAHA), All Star, Agrotk, TMG, Landy, Great Bear, Suihe, Great American Attachments, etc.,,etc.
It is your responsibility to verify that this will work because they constantly change the design to use whatever parts they have on hand. If you are not sure, send us photos of the attachment, solenoid control block and all connections including any kind of controller that they shipped. Most times we can help but sometimes we have to deliver the bad news and you will be on your own.
All of these attachments are notorious for not working out of the box or for falling apart after only a few hours. If your attachment does not work, we will troubleshoot our connection only to prove that it is working. The rest is on you to figure out.
This could mean that you need to change solenoids from 24 volt to 12 volt, bleed air out of the system, change couplers and move hoses around or even make replacement parts or modify the mounts to fit your machine.
One thing that you should do is to replace all of their crappy hardware with grade 8 and use blue Loctite to ensure that nothing falls apart at the first use. This is especially important for any kind of mower. I have had people comment about losing their blades immediately but it's ok because they saved thousands over an American brand. What they do not realize is that there are no parts available in this country because the brand names are just made up.
We Also Recommend
QUESTIONS & ANSWERS
Ask a Question-
I have a Land Honor Grader attachment. I am trying to set it up on Kubota SVL 75. It has a controller with it, I just need power. Do you have an adapter I can plug into the skid steer? Or do you have an adapter I can install to control the grader with the skid steer controls?
We have both.
CLICK HERE FOR A CONNECTOR
CLICK HERE FOR A HARNESS
Make sure of the connectors and that it only has 6 solenoids. If it has 7 it will require and additional harness. -
Yes, I fell for the AGT Tree Sheer at a Ritchie Brothers Auction. I will assume I have been lectured. I have a new 2023 Kubota SVL-75-3 with all kinds of not used joystick buttons and a 14 pin connector. I bought the TOPCAT ECSSRB 60 inch disk mulcher and realized I need to connect the (4) solenoids that come with a 7 pin connector. It looks like you have a kit but it does not have the same 7 pin on it? I am wondering if I need to convert the connectors to match your kit or chunk what they sent and start over. Any assistance would be appreciated. Cell 832-512-6935
There are so many people buying these that I created an FAQ. CLICK HERE
I have no access to the 7 pin Chinese connectors so you have to scrap their wiring and start over with our harnesses because at least we work to a specification where what they do is random. -
Have a 2013 Case SV300 with the 14 pin hook up. I have fours electrical rocker switches: one that looks like off/on, the other three have a picture of a hydraulic cylinder. I have two attachments I would like to operate: Edge snow blower with electric rotation and electric chute angle. Both are two wire electric actuators that change direction when you reverse polarity to them. The second attachment is an Landhonor grade blade with 6 solenoids set up in opposing pairs. Can you tell me which harness(s) I will need? Thanks, Alan
The Blower will require a harness and flip flop control box.
CLICK HERE FOR THE HARNESS
CLICK HERE FOR THE CONTROLLER
The graders are different every time because there is no quality control in China. This is usually the harness to use.
CLICK HERE FOR THE HARNESS
But you may require adapters if they are using DIN connections.
CLICK HERE FOR ADAPTERS
And you may need to change out the solenoids if they say 24 volt.
