Description

Virnig Attachment Controller - Introducing the New CAN60 Genius Controller for Bobcat 7 Pin machines to Paladin attachments which includes FFC, Bradco and Sweepster.

Use this adapter to plug in directly into FFC, Bradco and Sweepster attachments custom connector:

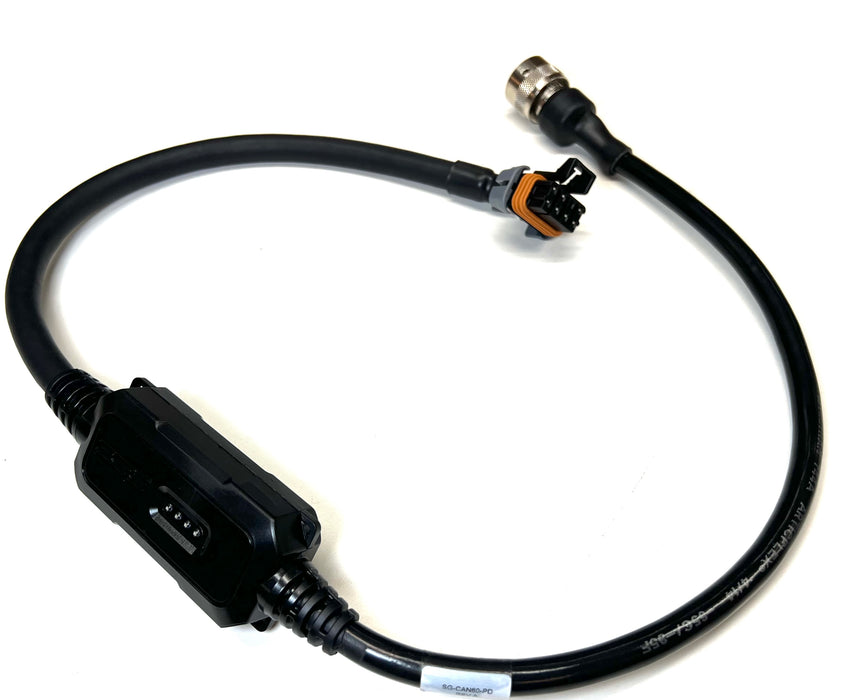

SG-CAN60-PD - Paladin 6 Channel Output - 8 Pin Delphi Connection

The CAN60 is a true Genius Controller specifically designed for solenoid controls. This adapter connects seamlessly to any Bobcat® 7-pin connector, allowing operators to control up to six 12-volt solenoids directly from the stick controls of their Bobcat® machines. It is compatible with Bobcat® skid steer loaders, as well as Toolcat and Versahandler machines.

The CAN60 features a six-output configuration with a 14-pin connector, designed using the traditional to use the Paladin custom connector layout.

CAN60 Features:

  • Software compatibility with all Bobcat machines, including Pilot Control, Hand/Foot Control, Toolcat, Versahandler, and imported Bobcat machines from the Czech Republic.
  • Durable molded plastic housing with enhanced cable retention—no more resin!
  • Cable retention design allows connectors to detach first during accidents, facilitating easier repairs.
  • Equipped with two 125-pound magnets for secure attachment to your machine's frame in various locations.
  • Improved temperature tolerance for both high and low extremes.
  • 9 Amp output per channel, regulated to a maximum of 15 amps to protect your machine’s fuse.
  • Two channels can be programmed to latch (A1/A2).
  • Simplified latching programming for user convenience.
  • User-friendly LED output for clear visibility of controller status.
  • Additional output protection against unreliable solenoids commonly found in overseas-manufactured attachments.

CLICK HERE TO DOWNLOAD THE USER MANUAL

or Scan this QR



Show full description +
Technical Information

Installation:
The installation process takes approximately one minute and is 100% plug-and-play. This boom-mount configuration enables repeated use across any attachment with up to six solenoids. The adapter is fully assembled and ready for direct connection to any Bobcat® branded machine. It includes power, communication features, and a port status indicator LED to confirm operational status and command reception from the Bobcat® machine.

Upgrade from the inferior control boxes supplied by manufacturers and transition to reliable machine controls!

Important Note for Cat D-Series Attachments:
To adapt, reposition pins G to A and H to J. For high-flow setups, be sure to push the K pin back to disconnect the high-flow sense. This pin serves as a ground in Cat attachments but carries +12 volts in Bobcat machines, which could blow your fuse if connected incorrectly.

Important Note: The Bobcat 2020+ Versahandler 923 is NOT compatible with this model because it does not feature an ACD controller.

Programming Instructions:

Channels C and D are pre-configured as momentary controls. If you would like them to function as locking switches, each channel can be individually programmed to latch.

To program:

  1. Turn off the key.
  2. Select either A1 or A2.
  3. Press and hold the selected button while turning on the machine.
  4. Continue holding the button for 5 seconds until the LEDs flash.

Your channels are now programmed and ready for use.

Product Outputs:

  • A1/A2 (Pins C/D): Configurable to latch; one or both can be set while the others remain momentary.
  • B1/B2 (Pins E/F): Designed for momentary operation only.
  • C1/C2 (Pins G/H): Designed for momentary operation only.
  • B (Ground & K): Provides a constant output.

Operational Limitations:
Due to fuse and circuit constraints, only two outputs can operate simultaneously. Attempting to set three outputs to latch will reset the circuit and require reprogramming of the adapter. This adapter ships with all outputs configured for momentary operation by default.

CLICK HERE TO DOWNLOAD THE USER MANUAL

User Manual
CLICK HERE TO DOWNLOAD THE USER MANUAL
Disclaimer

This product is not an authorized Bobcat® product and is not endorsed by Bobcat®. Under no circumstances should this product be construed as a Bobcat® product. This product is optically isolated from the control systems of your machinery and is designed to prevent any potential damage to your machine or its controls. The use of this product is deemed safe and will not cause any harm.

In the event that a dealer asserts that the use of this product will result in the voiding of your warranty or damage to your machine, we encourage you to report such claims to us immediately.

Skid Steer Genius is a specialized controls company dedicated to ensuring compatibility of products with a wide range of machinery. It is our objective to facilitate the use of any product purchased for your machine across various models. Certain manufacturers may design their products, and their associated controls, in a manner that restricts this compatibility.

Bobcat®, the Bobcat logo, and the color schemes associated with Bobcat machines are registered trademarks of Bobcat Company in the United States and in various jurisdictions worldwide. Bobcat Company operates as a subsidiary of Doosan Infracore Bobcat Holdings Co., Ltd., which is wholly owned by Doosan Infracore Co., Ltd.
