SG-KIT-DT-8-M - 8 Pin Male Kit - Deutsch - Machine Side | Skid Steer Genius

  • $135.00

Ask a Question

Fits old Cat, ASV and Terex.  Includes pins & tool.  You will need to solder or crimp wires to pins.  This is the same connector that the dealers sell for $120 +.  We know, we used to have to buy them.  These are original OEM connectors used on all machines and not a poor quality knock-off.  With decades of experience, you can count on us to supply you with everything needed in this kit.  Others sell you just a part and you have to find and order the accessories just to make this connector work.  We do it all for less.

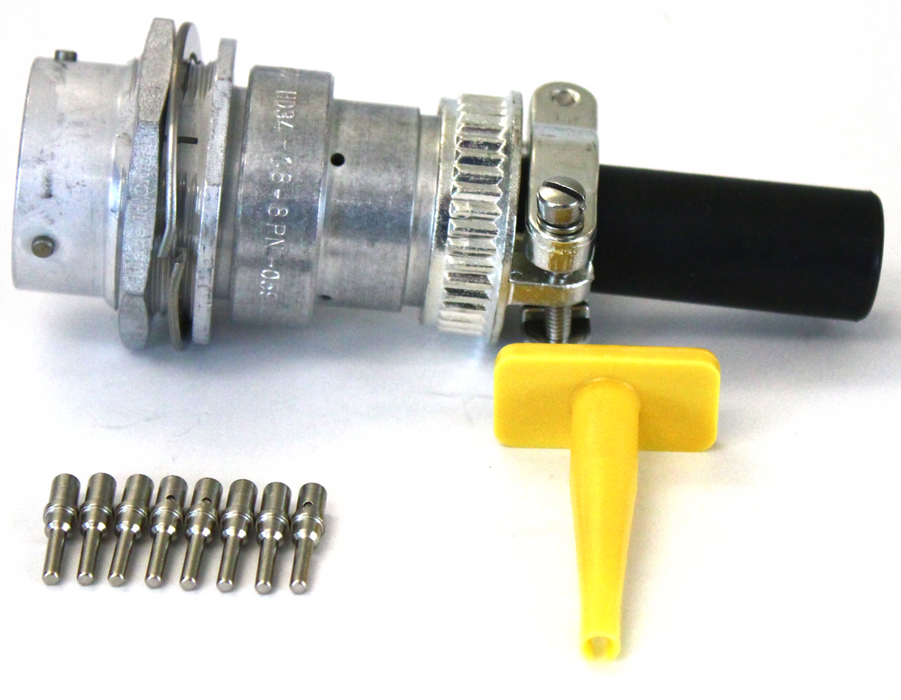

Kit Includes:

  • 1 Receptacle Deutsch Body
  • 1 Barrel Top Cap and Seal/Strain Relief
  • Nut & Washer
  • 8 Male #12 Pins
  • Installation Tool
  • Detailed Instructions Tailored for Skid Steer Use


Kit does not include crimping tool or soldering tool to connect pins to wire or dust cap.

About these connectors:
Many years ago we had to buy these from the dealers for $120 each.  My background is in electronics and I have seen many connectors like this in the past.  I knew they were not worth what they were charging.  The problem was sourcing them.  They are a German made coupler and the part numbers used in the USA came up always taking us back to the dealers.

I traced them back in Germany and finally found an importer that would allow us to buy them if we bought enough.  We took the risk because we use them on our attachments and we knew our customers would want them.  Well, we were right.  This is one of our top selling items based upon quantities sold.

We bring these in and kit them with everything you need to add to your harness.  We are sure you will see just how much effort we put into this item just to save you money.  These are the original German connectors used by all of the major manufacturers.
We also offer real live support 24/7 so if you have an issue and need advice, we are there.


We Also Recommend

QUESTIONS & ANSWERS

Ask a Question
  • Do you sell the wiring that goes attached to this?

    If you mean an 8 pin harness, then yes.  Here is the link.
    https://www.skidsteergenius.com/collections/bypass-cable-kits/products/sg-bph-8-4-9dp-8-pin-female-to-delphi-2-pin-harness-attachment-side

  • have a cat 232B skid steer require 8 pin plug and harness to fit to the machine as there is no plug or wiring on the machine. need it to run a drum mulcher..if you have them please give a price including shipping to Australia. thanking you. John

    You will need to contact your dealer.  Thanks

  • What is the maximum wire gauge you can run with these pins?

    They are 12 guage sockets.

  • I pulled my four wires out of dutch connector on a caterpillar mulched hm316 and i can't find the diagram that shows were they go back into plug, wires have theses numbers on them x1-c, xl-b, x1-d, x1-k

    It looks like they are labelled correctly.

    B is ground
    C is primary control
    D is secondary control
    K is high flow sense for XPS

  • WE HAVE PURCHASED THE PART #SG-CB-6014 HARNESS AND ARE USING IT ON A BOBCAT T770 AND ONLY THE A1 AND A2 FUNCTIONS ARE WORKING ON THE ATTACHMENT. THE ATTACHMENT IS A CAT COLD PLANERS. LOOKING AT THE ATTACHMENT SIDE OF THE BOX THE PINS ARE NOT LINING UP IN THE CONNECTORS FOR ALL OF THE PINS. SOME POSITIONS HAVE PINS IN THEM AND THE ATTACHMENT SIDE DOES NOT AND SO FORTH. DO YOU HAVE A WIRING SCHEMATIC FOR THIS CONNECTOR GET THE PINS ALIGNED TO PROPER FUNCTIONS.

    CLICK HERE FOR THE BACKGROUND

    The short and sweet is that for Cat-D you have to move the following pins.

    On the attachment, move A to G and J to H.  Make sure there is nothing installed in K because for Cat-D it is a ground but Bobcat protocol uses it as a keyed 12 volt supply so it will blow your fuse.
