Wire Extension | SMART Laser Receiver Auto Controller | SG-DPS-2-DT | Skid Steer Genius

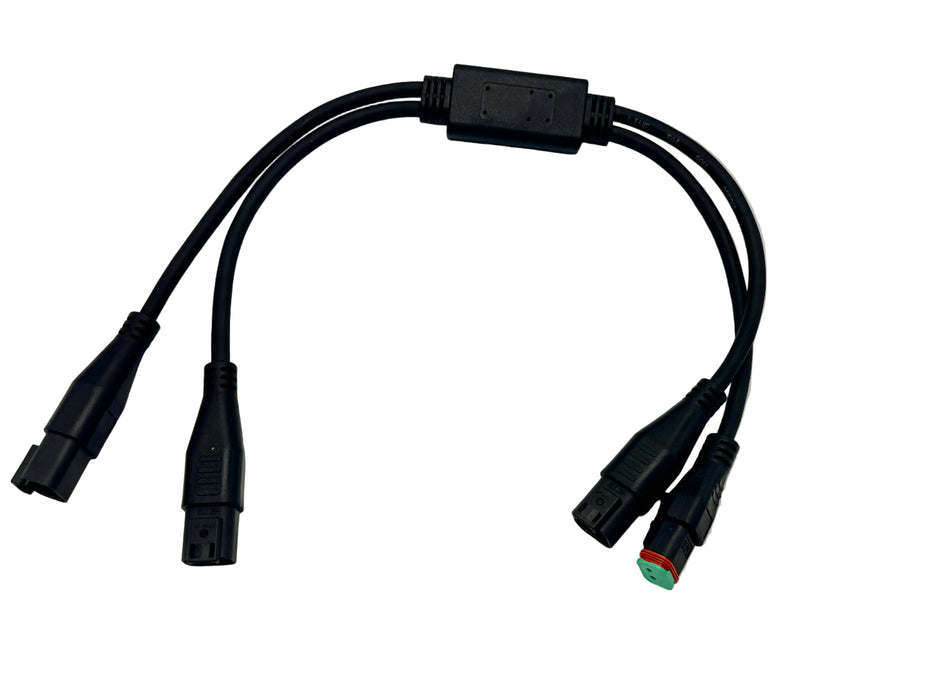

Skid Steer Grader Laser SMART Controller - Dual 2 Pin Deutsch Receptacles on one end (Momentary Inputs).  Single Deutsch Receptacle on other end for Power and single 2 Pin Deutsch output plug for Laser Manual/Auto Control.

Using two Y connectors, you can add this in line with your side shift or blade angle solenoids.  Then add a power tap to power this up and you can then use two existing controls and by pushing them at the same time, they will trigger and latch an additional output that will power your laser Auto control.

In most case you will push your side shift or blade angle controls at the same time for 5 seconds.  This will trigger the output to stay latched until you hold the buttons again for 5 seconds.
