SG-KIT-DT-14-F - 14 Pin Female Kit - Deutsch - Attachment Side | Skid Steer Genius
Fits Bobcat, John Deere, Takeuchi, New Holland as well as others. Includes 14 sockets & tool. You will need to solder or crimp wires to pins. These are the original OEM connectors used on all of the machines and not a poor quality knock-off. With decades of experience, you can count on us to supply you with everything needed in this kit. Others sell you just a part and you have to find and order the accessories just to make this connector work. We do it all for less.

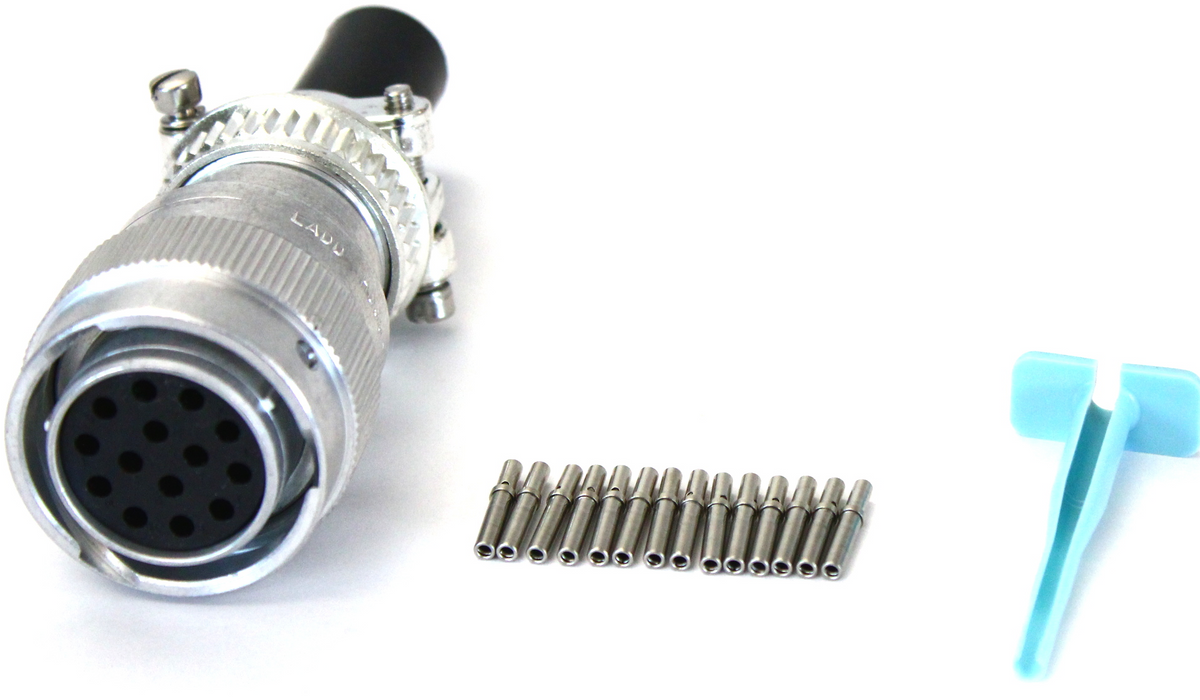

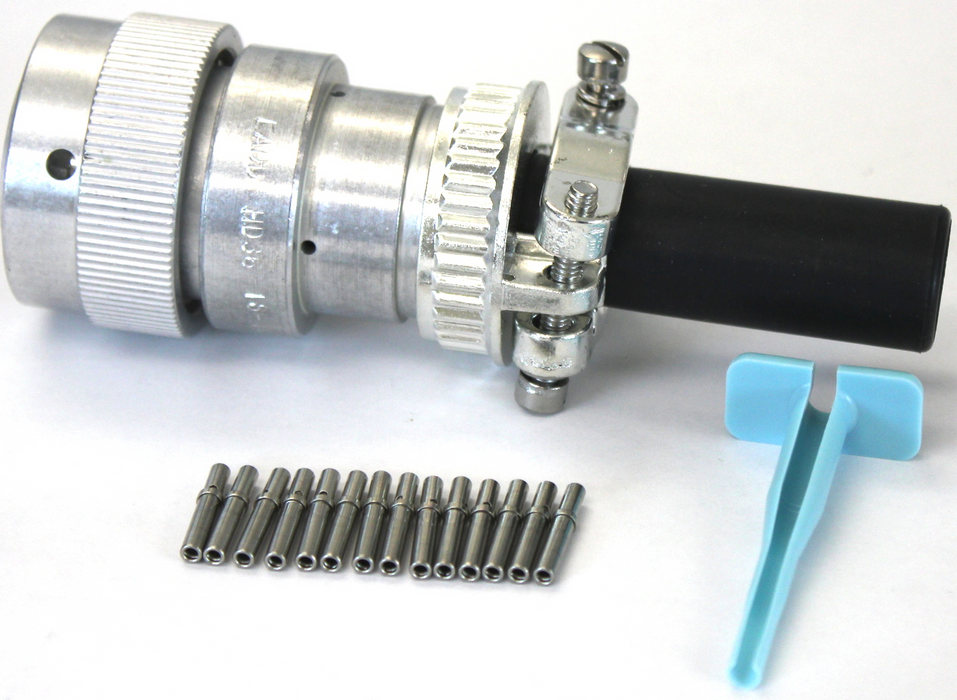

- 1 Female Deutsch Body
- 1 Barrel Top Cap and Seal/Strain Relief
- 14 Female Sockets
- Installation Tool
- Detailed Instructions Tailored for Skid Steer Use
Kit does not include crimping tool or soldering tool to connect pins to wire or dust cap.
About these connectors:
Many years ago we had to buy these from the dealers for $120 each or with full harnesses for $350+. My background is in electronics and I have seen many connectors like this in the past. I knew they were not worth what they were charging. The problem was sourcing them. They are a German made connector and the part numbers used in the USA came up always taking us back to the dealers.
I traced them back in Germany and finally found an importer that would allow us to buy them if we bought enough. We took the risk because we used them on our attachments and we knew our customers would want them. Well, we were right. This is one of our top selling items based upon quantities sold.
We bring these in and kit them with everything you need to add to your harness. We are sure you will see just how much effort we put into this item just to save you money. These are the original German connectors used by all of the major manufacturers. We also offer real live support 24/7 so if you have an issue and need advice, we are there.
We Also Recommend
SG-CB-2000A-100 - 100 Pack - Genius - 7 Pin Controller For Bobcat® Loaders - 2 Port | Skid Steer Genius
SG-CB-6014 - 50 Pack - Genius 7 Pin (6 Output) Controller For Bobcat® Loaders, Toolcat & Versahandler - 4 Port | Skid Steer Genius
SG-CB-1000A-100 - 100 Pack, 7 Pin Controller For Bobcat® Loaders - 1 Port | Skid Steer Genius
SG-CB-4000A-100 X 50 - (50 Pack) Genius 7 Pin Controller For Bobcat® Loaders, Toolcat & Versahandler - 4 Port | Skid Steer Genius
QUESTIONS & ANSWERSAsk a Question
Hi, I'm sorry I should have been more specific with my question. My machine is a 2020 Cat 270D XPS High Flow skid steer. My attachment is a John Deere SB84H High Flow Snowblower. Both are equipped with 14 pin connectors. Is the SG-CT14-JD 14 adapter right for my application and are instructions included for installing the BK jumper with my purchase? Thank you, Brett
What size pins are needed for these? My boss lost the pins that came with the plug by the time it came to me. New holland c232 if it matters. Trying to wire up an aftermarket hydraulic turbine blower with electric swivel on the blower head.
This will not work without a relay flip flop circuit. You have to reverse the polarity in the circuit. I am working on a prototype for release next fall.
Does it come with wire?
No. It is a connector. We sell ones with wires.
Does this take a special crimp tool, or will a standard wire crimper work?
Uses a square crimp of just solder. Do not use a regular crimper or it will squash the top and the socket will not insert into the barrel.
have a Gehl V330. The machine side connector is HD34-18-14PN-059. will this work for the attachment side?
Do you ship to Canada?
Every day. It will charge you more for shipping in the cart.
I have a JCB 320T skid steer. And I want to run a JCB snow blower. Oddly enough the pin locations in the electrical connectors don't match. The main blower requiring hi-flow is functional, however the articulation on the chute and the chute directional adjuster also doesn't work. Wondering if you can send me the correct PIN locations for both halves of the connection.
That does not make sense, but here goes.
B - Ground
C & D Control Set 1
E & F Control Set 2
G & H Control Set 3
I'm looking for the male connector on a Kubota SVL-95 (machine side)
What is the availability on a SG-KIT-DT-14-F
1500 IN STOCK
I purchased the JCB control box from you to control a CAT SR121 blower on my Case SR200. In fact I asked the question if it would work. I got a definite yes. Well, it doesn't. Can I get a number for a support technician to help, at this point the box is worthless. Thanks for your time.
They always work.
1: Make sure there is power to the box by looking at the plug in. Is the LED lit? If no, fix the power connection.
2: Verify the power out. We use B for ground which matches the Cat Spec. Then we use E,F,G,H for control. Cat does not always use these. They may be using A & J so you will need to move those sockets. There is nothing we can do about this. It is a 4 channel box but most manufacturers us up to 6 different connections so we hit maybe 2 connections depending on what it is. It is impossible for us to cover all of the different combinations.
Does this 14 pin female connector fit a new Case Skid Steer?
Yes it does.
do you have the pin out for attachment side of a john deere mh60d mulcher? We have 4 wires that popped out (black red and 2 white) and I would just like to know how to reconnect
Which connector are they using? The three pin or the 14 pin? They use both so I have to ask.
Do you have the wiring diagram for the 14 pin plug for a Cat sr117 snowblower.? I have a Cat 257d machine I want to attach this blower to. Thanks
Sorry, but that is very hard to come by.
will this connect to JCB 2021 270
Yes it will.
What size are the pins that you get with the 14 pin plug
Can I purchase the little tool to remove the pins I broke mine worn out
I apologize for the price but these small items kill us in handling. We tried to make it so you had to purchase a minumum $ value to cover the handling but in the end we settled for win some, lose some so for this one purchase, we make $1 even though the price is so high.
Do you have a wiring diagram for a 14 pin attachment side?
I need to connect a concrete mixer with a 2-pin deutch adapter to my skidsteer with a 14-pin adaptor. Can you confirm what product I should be buying. I'd like to send pictures to confirm. Can I do so and to what email address would I send it. THIS IS URGENT. Please reply soonest.
You are not telling me which mixer brand so I am taking a guess here.
Will thi work?
I have a Cat 6 way dozer blade that I just purchased your plug for. I'm using it on a Kubota SVL-95-2. Would you have the pin out instructions for this application?
B is ground and E is control. Was there not a piece of paper with a colored bunch of cells sent in the package?
I have a JCB skid steer with seven function levers & a number of unused buttons.Would like to connect 1 of these buttons to a 12V solenoid activated flow valve on an air blast sprayer,use a hold down button for spot spraying with a fuse in the circuit .Would your connector complete this circuit.Do you think that a hook up like this could cause problems with the computer?
It all depends on the current requirements of the air blaster. Can you find out the specs of it? Voltage and maximum current requirements? Up to 15 amps, you will be fine as long as there are no spikes. Anything above that and you will need to drive a relay with a direct to battery with fuse connection.
I am trying to add a blade attachment to my John Deere 320E. I bought the kit for the JD, but I need two connectors so I can attach the blade wiring.. I need a 14 pin round female and a 3 pin round male. Do you have a part number for the 3 pin.
Hello Do you have a wiring diagram for a female 14 wire plug on a cat broom? The wires pulled out of the plug. Everything looks good, I just need to put the wires back where they come from.
B is ground - Black Wire. If you were using the left buttons, use E & F. If you use the right buttons, use C & D.
I have a Case Tv380 that has a 14 pin male plugon the machine and I'm trying to hook up a cold planner but it has an 8 pin female plug do you have an adapter?
Does the planer have 5 hydraulic lines? If so you need to have enhaced high flow on your machine so you can run two pumps at the same time. Otherwise you have to change out the hydraulic block. I gather this is a Cat planer. They sell an updated block for $3500.
Morning.... I have a 2916 Cat 262D. Do you know what the auxiliary pin voltages are supposed to be on the loader arm connector? On my machine, I have 4 options to choose from for button position to activate the swivel head and I'm wanting to use pin C which is the bottom button on the right side joystick. I assumed it was 12V, B+ but I measured 2.58V, B+. I thought I needed 12V to activate the diverter relay on my Precision Manufacturing tree shear. https://precisionmfg.com/extreme-duty/ The connector on the boom arm is a 14 pin but only uses 9 male pins. I saw on your FAQs that pin A and E are B-, is that correct?Which pin if any are B-? My cell is 512-588-0110 and I'm in TX. Thanks in advance
B is ground. CDEFJA are controls. Please read this FAQ. It's all covered in depth here. Just click the link.
I have a 2017 case sv280 14 pin connector and want to hook up a cat sg16 stump grinder to this skid steer and was wondering if you could make a connector to work on this setup???
If the grinder has a 14 pin, use this.
If it has an 8 pin, use this.
Can it fit in cat299 14 pin socket
Would this be the attachment side for a 2019 SVL95 2S OEM harness? Thanks,
Yes. Kubota is a strange duck so you should wacth and read the following so you understand the nuances.
I have an older snowblower attachment and would like to use it with my new CAT 236D skid steer. The attachment has a wires for turning the chute. Will your 14pin Female connection work? How do I know what pins to use / wire to?
Does the snow blower use electric motors or solednoids that control hydraulics to hydraulic motors?
I have a 14 pin connector and the wire is terminated in the "D" slot. I need it terminated in the "F" slot. What do I need to this? I have a CAT 259D3 machine.
Hi, wondering if any wire comes with this kit? TIA
No. It's just a connector.
Is there any discounts for Kubota Dealers?
Yes. Please email email@example.com
I am looking at a female 14 pin connector for a John Deere CTL do you have a wiring diagram for the Deere machine?
I don't have color coded schematics because they won;t give me one and no customer has come forward with one. I do know where each control wire goes. Just email me back and I will send you a section of my personal guide.
What gauge crimping tool is recommended for the sockets?
I just ordered this connector, now I’m going to order a crimping tool but I’m not sure what gauge IWD tool I should order, can you help me please?
Hi Skidsteergenius, I recently purchased your JCB-100 four way controller to run the chute on a Erskine Snowblower. The connection is a eight pin female on the blower. Upon your recommendation I ordered this 14 pin connector. My next question is that how will I match up the proper location of the pins after I cut off the old 8 pin connector?
I hope the instructions arrived with the package but you will use the black wire as ground B. Then the other controls go into C, D, E and F.
Hi I have a 2014 cat 242d with the 14 pin set up on the machine. I am looking to run an m6 Harley rake- what is the best set up to purchase to make this happen. Thank you
I will need to know which version of Halrey rake as there are at least 3. Send photos of the connectors and the solenoid so I know what you have please.
Hi, I have a older Erskine snowblower 2418 that came with my 96 bobcat 763 with 14 pin male connector, the snowblower Wiring was cut off by previous owner and am trying to repair it, interested to see if your kit will work for my application; only seeing about 5 or 6 wires in the snowblower bundle. Thanks
It uses a 14 pin connector but you will only use 5 connections. A - Ground, E,F,G & H. for controls.
Will this plug into a John Deere 320D
If your machine came equipped with a 14 pin connector this will work.
is this the corresponding fitting for the implement end of the harness SG-KB-01?
I have JCB/Harley rake with FFC flat inline plug with 3 wires Black, White, Red. Bought your 14-F kit to connect to Kubota SSV75. How should I connect?
Chop off their connector. Find the ground wire which is usually black and install it into B. Install the other two wires into C & D. Make sure you solder the wires into the sockets if you do not have the proper crimping tool.
I have a New Holland L220 and I have a Hanson snow blower with an electric motor for the chute.There are only two wires to the motor. How should I hook it up.
You will need to wire up a relay to cross over the circuit from forward to reverse. We made a couple of boxes for this purpose a few years ago and got grief from people for the price so we no longer bother.
will this work with my John Deere 323E.
Yes it will. Thanks for checking.
Can you ship to me in Canada.
We ship to Canada daily. We use postal. It's a little slower, but less expensive and you are rarely charged taxes.
Trying to control two solenoids on a cat 257D purchased SG-KIT-DT-14-F - 14 Pin Female Kit I'm planning on using pins E and F for the two positive outputs. Which pins do I need for the negative to the two solenoids when there is only one pin B being (-)ground, do I just need to tie the two neg of the solenoid to the one pin B
You group the grounds together and pin them to Pin B. There should have been an instruction sheet in your kit.
Hi will this kit fit my 2018 TR270 with factory installed male end?
Yes. You are correct. Thanks
I have a CAT 242D skid steer with 14 pin electrical connector. I would like to connect my CID angle broom to the 2 left buttons on the left joystick so that when the broom is rotating I can change the angle of it. I got some crappy switch to hook to the battery with it. It has a 2 pin harness with connectors on it. One is a similar to a trailer light connector, flat with 2 opposing pin / socket . I could cut this off but would have no power (12 volt). The connector goes to a motor on the broom to control the direction of the hydraulic cylinder. Can you help with this?
The fastest and cheapest way to do this is to chop off their trailer connector and use this connector. It is the industry standard. Our advice to customers is to avoid companies that do not follow industry standards as there are probably other things that they do to cut corners.
Is there one pin on the work tool connector of a cat 259D the ground?
Yes. A & E are grounds. Copy and paste this link for more details. https://www.skidsteergenius.com/apps/help-center#!caterpillar-8-pin-explained
Hi I'm needing one of these 14 pin connectors but it's for a 2 wire flat pin I guess is what it is called for a 6 way dozer blade for a 333G JD skidsteer. Do you put one of those together there or is that something I do when I receive it? Thank you!
Can I get a link for the tool and some pins I lost mine and need to replace them
Where can I get the wire crimper or will a regular wire crimper work.
We don;t bother trying to sell them because Amazon undercuts us by selling them for our cost.
Hello Hello I see you have a full kit SG-KIT-DT-14-F - 14 PIN FEMALE KIT - DEUTSCH - ATTACHMENT SIDE Do you have a full kit for the machine side including mounting bracket 14 Pin connector if so can you send me the part number?
We don't know which bracket you need so type in the word bracket into the search bar and you will see everything.
Will this work in place of a Deere CB01491974?
Can you explain why that machine needs a cavity plug please?
Will this fit my case skidsteer
1-Do you know the size square crimp tool for the female plugs? 2-Do you have a pin-out diagram for a Case SR210. Details: trying to connect a Wolverine sickle mower. Like some of your videos, this has a relay that controls a hydraulic selector valve. They provide the relay and wire. ON makes the hydraulic raise and lower the blade. OFF makes the aux hydraulics drive the mower blades. One connector goes to ground, Second connector goes through a switch in the SR210 and to 12V. Thx.
If you buy the plugs from us, the machine schematic is attached.
CLICK HERE FOR THE ATTACHMENT SIDE RECEPTICLE
CLICK HERE FOR THE TOOL
Sorry but I will not provide technical support for that product as it is a direct stolen copy on my USA made product. I have to draw the line somewhere on all of this stolen IP and this product really pisses me off.
CLICK HERE FOR THE ORIGINAL USA MADE SICKLES
LOOKING FOR AN ADAPTER TO GO FROM BOBCAT 7 PIN MALE TO CATERPILLAR 14 FEMALE.
CLICK HERE to or the controller.
You will need to move a couple of pins. On the attachment connector, push Pin K through as it is a ground sense used for high flow but on Bobcat it is a keyed hot so it will blow your fuse immediatley. Move A to G and J to H and it will be 100% compliant.
Does it fit CAT 299D3 XE?
I have a t190 bobcat Skidsteer that I have the 14 pin connector on the machine, I have an an attachment that requires electric to operate the clamshell, open and closed. Will this part work?
We need a little more detail.
What brand is the attachment?
What model is the attachment?
I have a Kubota SVL-95-2 what adapter do I need to connect a bobcat 24" planer to the track loader
You have two problems.
1: You need to bypass the attachment computer. CLICK HERE FOR INSTRUCTIONS AND PRODUCT SELECTION
2: Your Kubota does not have enough controls as the stock controls only had two controls, a ground and a +12volt connection. You need 6 controls to operate a planer. CLICK HERE TO ADD CONTROLS
Make sure you read the product page closely as you can dissable the 4 pin Deutsch and add the pins directly into your machine connector so it becomes a factory style connection. This saves you money and hassle. When you are doing the install, please send us some photos of your work for others to see.
Hi I'm in Australia I need 3x 14 pin female, 3x 14 pin male Plug kits. Can't find anywhere to purchase just the connections. Do you ship to Aus? Thanks
I have a Kubota 97-2 skid steer and a turbo saw RS2600. Will this plug work for this set up?
Where can I purchase the square crimping tool mentioned?
Can someone please call me 406-740-1522. My name is Tad
What do you need? We do everything in writing to avoid confusion.
hi i have a jcb 215 skid steer went to hookup a ffc snowblower to it i have the wire and plug what is the pin location on your plug to do this thank you.
Our kit has the guide with the control pin locations. Did you not receive the instructions?
I need a 14-pin attachment side connector to connect to a 2022 Kubota SVL75-2. Operates a Kwik-way V-plow.
This is the correct connector. Do you need the harness as well?
The prior owner took this connector off and welded on something that you would find on the back of a pickup truck (7 pin). I fixed all that and am trying to wire this connector in. I did get the addendum with the pinout and Case is listed but I am having a hard time figuring out what wire goes where by wire color. Do you have something more detailed specific to Case? Again, this is machine side and not implement side. Thanks!
The manufacturers never provide us with any information. We rely on customers to provide us with details as we help them to discover the information for themselves. Follow the guide that we provided and use a testing light. Click the black lead to negative. That will be pin B. Then push each button down and find the corresponding wire that lights. Write it down. These will be your C,D,E,F,G,H control lines. K will be the one that has constant power. Please forward us your results and we will publish them for others in the same predicament. I started this site to help people. I had not idea that we would become so successful and actually turn it into a business. It's still just Craig and I and we go out of our way to try and figure these things out for everyone's sake since the manufacturers are no use.
Does this work for kubota skid steer
YES. For the attachment side.
Looking for a harness to tie into 2022 case tr340 boom control. do you have such a harness. is it can buss? it
I don't know what you are asking.
1. What kind of skid steer?
2: What brand and model of the attachment?
3: Are you looking for a harness or a connector or an adaptor?
