Bobcat Grader External Laser Adapter Harness - SG-GR-X | Skid Steer Genius

  • $585.00

Ask a Question

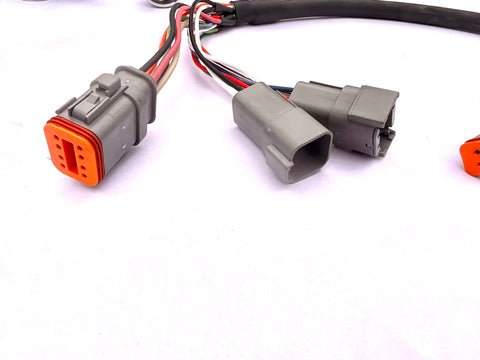

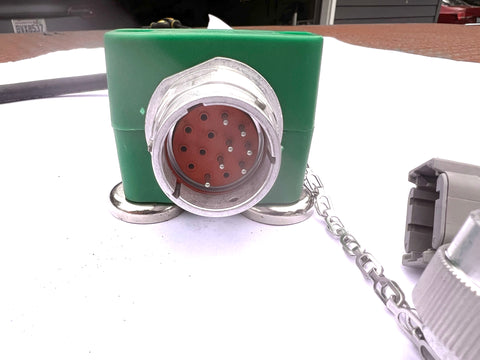

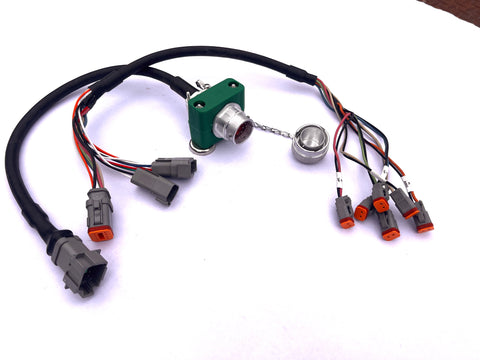

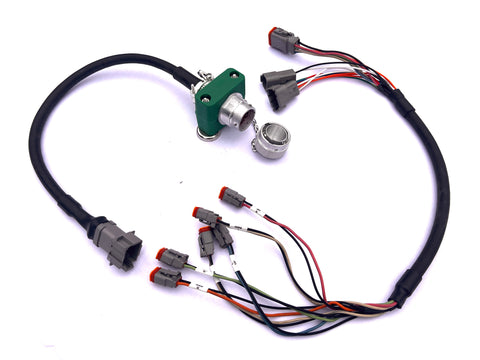

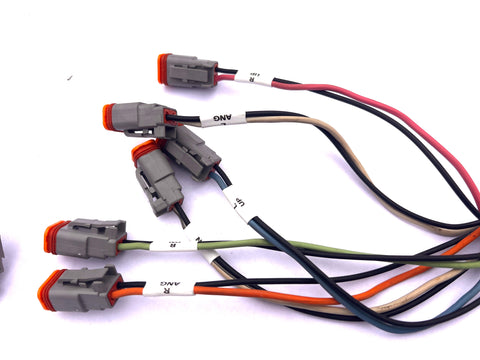

This is the harness that many people have been waiting for.  It allows you to operate your Futurra Laser Receivers with your Bobcat 96/108" Grader.  This harness completely bypasses the Bobcat computer and allows you to operate Futtura Receivers on your grader seamlessly.  This item only does the bypass on the Bobcat controller.

Here are other items that you may or may not need for your application to make everything work on your specific machine.  We have broken everything out since everyone's applications are different.

Machine Controls:  Bobcat grader's require 8 momentary controls just to operate.  In addition as keyed 12 VDC source is required as well as a switched 12 VDC source to operate the laser receivers in manual and auto mode.  We have a couple of solutions for this.  The first one is our Super Controller.  This is a control system that can be added to your machine in addition to your existing controls.  They are very intuitive when using a grader and work exceptionally well.  Here are the links:



We have recently created a new product that allows you to use 66 of your existing controls.  If you own a 14 pin equipped machine with 6 control switches installed, you can use this product.  Examples of machines that are ok are Case, Wacker Neuson, Kubota after 2018, Yanmar, old Bobcat, Gehl, Mustang, Hyundai, New Holland & Manitou.  Cat and John Deere will not work.  Here is the product - CLICK HERE.  You can run the wire through your cab and out the boom.  Open up the machine connector, remove the pins from this harness by removing the wedge lock and sliding them out and you can install them into your existing connector for a factory feel.

Red Wire - Pin N

White Wire - Pin P

Green Wire - Pin M

Black Wire - Pin A

If you do not want to do this, you can buy this adapter - CLICK HERE


It injects the signals into the output 14 pin connector.

Bobcat Grader Harness:  his harness bypasses the 7 pin connection and goes straight into the controller or our GR-X harness.  CLICK HERE

Futurra Part # available @

Contact Shephard Patton Geoshack for the Futurra laser systems, harness & masts @ 1-713-210-9709


We Also Recommend


Ask a Question
  • what is the phone number i need to call to figure out what i need.

    Everything happens in writing.  What is your application?

    Machine Brand and Model?

    14 Pin Installed?

    Make and model of grader?

    14 Pin Installed?
