SG-CB-2000A-100 - Genius - 7 Pin Controller For Bobcat® Loaders - 2 Port | Skid Steer Genius
This adapter is specially designed to plug into any Bobcat® 7 Pin connector and allow the operator to run up to 2 x 12 volt solenoids directly from the left and right paddle controls of your Bobcat®. Works on Bobcat® skid steer loaders as well as Toolcat® and Versahandler® machines.
What is amazing about this is that we have taken our engineering to another level. This controller features a unique latching circuit so that you do not have to hold your thumb down for 8 hours for continuous operation.
It works like this: Plug in our controller and your switching paddles will be transformed. On your left paddle, touch the bottom part of the paddle and it works in a momentary fashion. Touch the top and it latches. Touch either the top or bottom and it releases. The same goes for the right paddle. Amazing, right? This was all done because of feedback from customers like you. Now you can run accessories like sprayers, lighting and accumulators without holding your thumb down for hour after hour while trying to run your machine. Genius, pure Genius!!!
Toolcat and Versahandler owners: Plug it in the same way as on a skidsteer and use the console switchs (Olders Models) or the handle control switches to operate your attachments. It's that easy.
Takes about 1 minutes to install. Is 100% plug and play. This configuration is a plug mount so you can use it over and over on any attachment that has one or two solenoids to control. This is complete and ready for plug and play directly into any Bobcat® branded machine. It has an indicator LED to show you that you have power and that it is receiving commands from the Bobcat® machine as well as when the paddles are operating correctly.
What is included:
- CanBus Controller with 2 outputs via 2 x Deutsch DT06 Plugs. Up for latching or down momentarily control from your left stick for plug A. Up for latching or down momentarily control from your right stick for plug B.

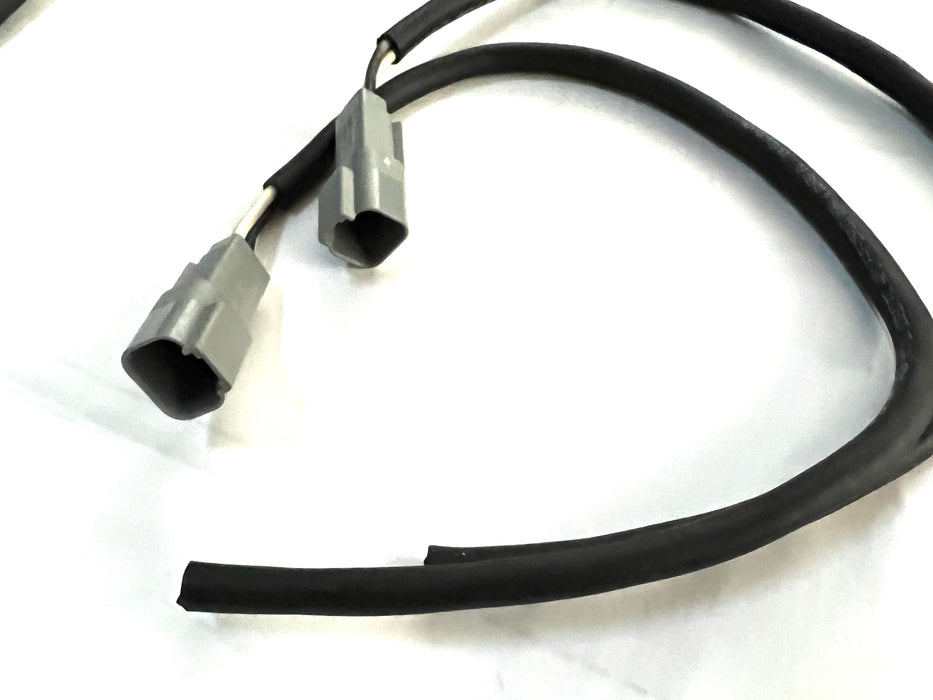

- 2 x 2 Pin DT06 Deutsch receptacles with an 18" pigtail to connect to your attachment solenoids from the controller.
- Easy to Follow Instructions
- Incredible factory support that is not available anywhere but from Genius.
Read more about how this product functions here.
This is not just a plug in adapter. There is a microprocessor with software loaded along with a IC driver circuit that enables this to work. That is why it costs more than just a plain old connector.
Bobcat Versahandler 923 - DOES NOT WORK WITH THIS MODEL BECAUSE IT DOES NOT HAVE AN ACD CONTROLLER.
This is not a Bobcat® product. This product is not endorsed by Bobcat®. We are in no way attempting to make you think this is a Bobcat® product. This product is optically isolated from the controls of your machine and can in no way damage your machine or controls. It is perfectly safe to use and will not damage a thing. If a dealer is attempting to tell you that your warranty will be voided if you use this product or that it will damage your machine, please call and report it to us. Skid Steer Genius is a specialty controls company. Our goal is to make anything you buy for your machine work on any machine. Others design and build in such a way as to stop you from doing this.
Bobcat®, the Bobcat logo and the colors of the Bobcat machine are registered trademarks of Bobcat Company in the United States and various other countries.
Bobcat Company is a subsidiary of Doosan Infracore Bobcat Holdings Co., Ltd., a wholly owned subsidiary of Doosan Infracore Co., Ltd.
All rights reserved.
We Also Recommend
SG-CB-60DP8 - Genius 7 Pin (6 Output) Controller For Bobcat® Loaders, Toolcat & Versahandler - 6 Port | Skid Steer Genius
SG-CB-6014 - Genius 7 Pin (6 Output) Controller For Bobcat® Loaders, Toolcat & Versahandler - 6 Port | Skid Steer Genius
SG-CB-4000A-100 - Genius 7 Pin Controller For Bobcat® Loaders, Toolcat & Versahandler - 4 Port | Skid Steer Genius
QUESTIONS & ANSWERSAsk a Question
I have a Bobcat T590 with 7 pin. I'm need a harness for Bobcat 6 way dozer blade which has 14 pin harness.
You require 4 solenoid drivers.
CLICK HERE FOR THE CORRECT CONTROLLER
What product would I need to operate a wolverine power angle broom with a 2016 T595 Bobcat ( w/ 7 Pin )? I believe this is correct, just want to make sure.
my dealer code is not working trying to get some harnesses on order Central Nebraska Bobcat
All codes were cancelled for this year. You need to send your reseller certificate in and you you will receive a new code.
I have a Erskine 2010 Snow blower and it came with a pistal grip connection cord. Would like to convert the snowblower to a Bobcat 7 pin to run on my T595 Bobcat. Do you offer a harness that will work for this?
would this be able to run a 12v motor for snow blower chute direction (New holland Blower). Just needs full power 12 feeds as far as I know. The blower has a polarity reversing relay on it. I would need constant power and ground then 2 signal wires to work as is. If you have another way to make it work that would be grreat. I would need extra ends to hook up 3 attachments with single solenoids as well.
I built this product for bi-directiona controlled power.
I have a T590 with a 7 pin, I’m installing an FFC blower that has a electric rotation chute and an electric tip on the chute. Will your SG-CB-2000A-100 work for me? Thanks
I have a bobcat t650 with the 7 pin connector but i bought a grouser 6 way dozer blade that someone cut the plug off of so i only have two wires now so i need a 7 pin connector with a controller on it i think so i can control the functions threw the two joysticks, will this work for that?
Yes this will work.
Can this be programmed to make the switches all momentary? I want to run a Metal Pless blade wings and not have latching on. Will I need to get the 6 function one with the 14pin output to do what I need?
The top latches while the bottom is momentary. There is no way to change that. The 6014 allows you to program what you want.
I Have a 2 function Tree shear Will this 2000 model make it work on my Bobcat with a 7 pin
Do y’all make this with one 12v output? I found it listed on skid steer solutions but not here
That's what this is for. CAN input and 12 volt output when you push a switch.
