Futurra Laser Grade System | ET-EG2-FM

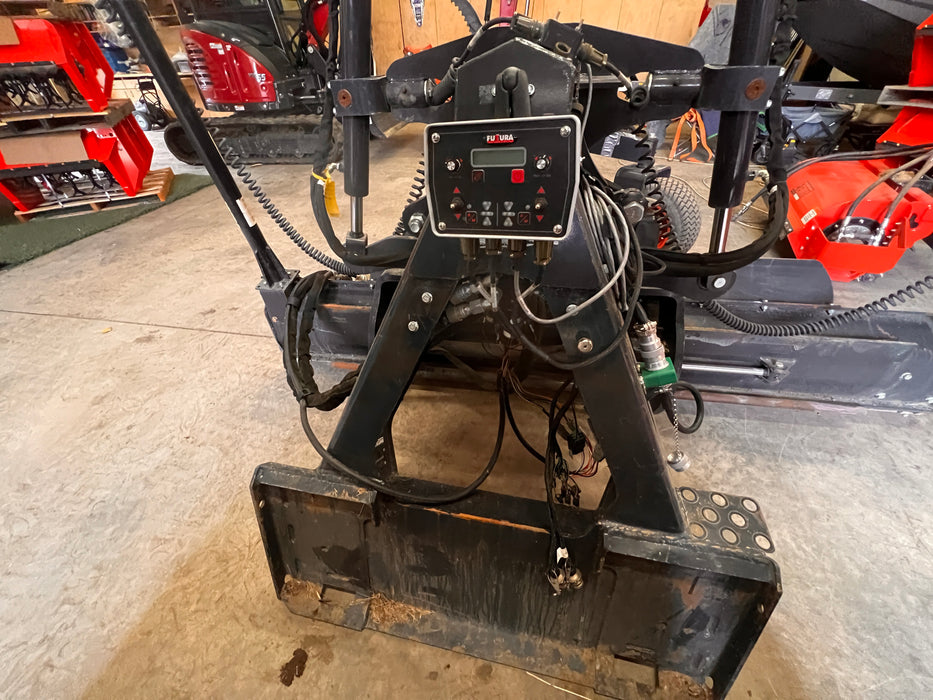

This is a special kit that we worked on with Futurra to connect directly to your Bobcat 96/108" grader and then plug directly into our Genius wire adapter control kit
The kit includes:

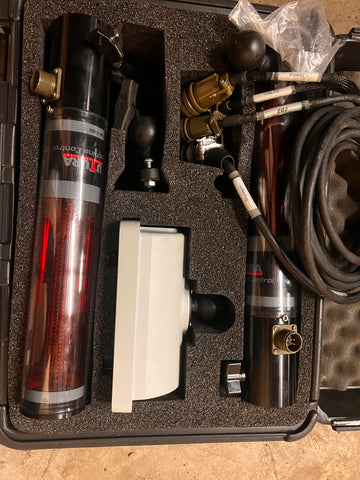

- 2 x Laser Receivers

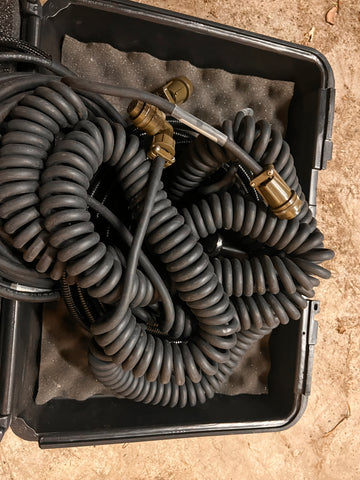

- 2 x Receiver Coily Cables

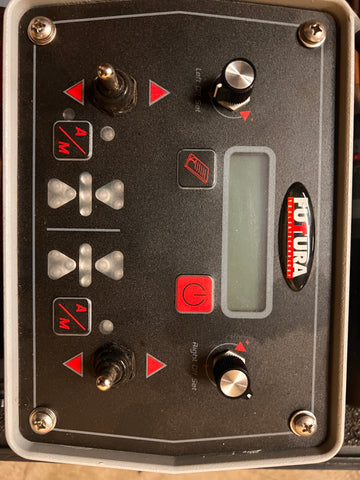

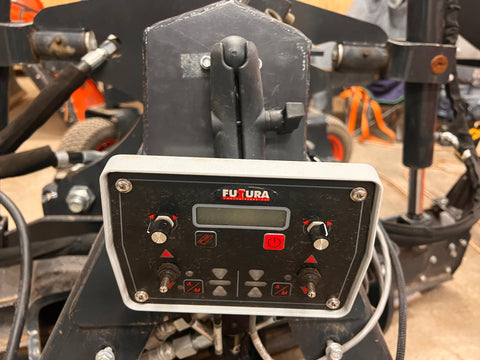

- 1 x Controller Screen

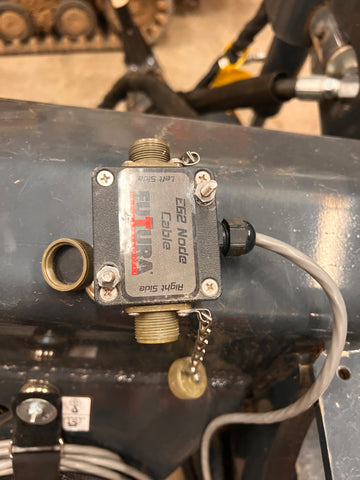

- 1 x Interface Box

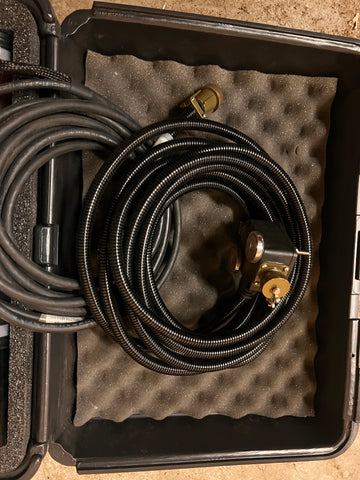

- 1 x Interface Box Cabling
- 1 Genius interface Cable (14 Pin)
- Ram Mount Kit for frame or cab install
For this kit to work, you must have either a Genius Injector or Super Controller installed in your machine. You also need the main harness for the grader that turns it from CAN controlled to 12 Volt standard controlled.
We Also Recommend
SG-CB-2000A-100 - 100 Pack - Genius - 7 Pin Controller For Bobcat® Loaders - 2 Port | Skid Steer Genius
SG-CB-6014 - 50 Pack - Genius 7 Pin (6 Output) Controller For Bobcat® Loaders, Toolcat & Versahandler - 4 Port | Skid Steer Genius
SG-CB-1000A-100 - 100 Pack, 7 Pin Controller For Bobcat® Loaders - 1 Port | Skid Steer Genius
SG-CB-4000A-100 X 50 - (50 Pack) Genius 7 Pin Controller For Bobcat® Loaders, Toolcat & Versahandler - 4 Port | Skid Steer Genius
QUESTIONS & ANSWERSAsk a Question
I need to connect our ‘14 Bobcat S850 to a Lofness snowblower with a electric spout. How can I get this done?
We make a 4000 controller that allows you to program it to reverse the voltage at the attachment. The problem is that our supply change is damaged and we have been unable to get parts for the past two years and we sold out about a month ago. The other product (6014) is temproarily sold out but wil be in stock within the month so this is what I recommend.
For your machine - CLICK HERE
For your attachment - CLICK HERE
To make your attachment reverse polarity - CLICK HERE
This only works if you have Deutsch connections. If you do not or do not know what Deutsch connections are, take photos of your solenoids and send them to me.
I have a 21 Bobcat T770, I would like to get a quote for all components necessary to hook this system up. Am assuming this is an auto leveling system, not sure if it is a single or dual plane system. In addition, will it basically work with any laser transmitter? David Poff 502-639-9445, Thanks
It's all been covered here in depth except we did not really make a kit for Bobcat since most people are purists and want a Bobcat grader with a Bobcat machine. Click here for the in depth instructions.
Since this will now be a NON-BOBCAT set-up, you will need to adapt your Bobcat to run 12 volt functions.
You will need a 6014 Controller - CLICK HERE
Then you need the 14 pin Injector Kit - CLICK HERE
To run the Futurra system, you need this adapter - CLICK HERE
We do have some Futurra's left that we can ship you - CLICK HERE
Will it work with other manufacturers?
No idea since all of them were afraid to work with us as we developed this kit since they all have some kind of tie in to Bobcat and are afraid to tick them off. Futurra was the only company to step up to the plate and actually work with us and announce it publicly.
I have a kubota 97-2 and need a grading system on it. Will this come with all i need to make a 96 bobcat grader work on the machine. Can you suggest the link for Genius Injector or Super Controller for me to install on the machine. Thank you Remy
An Injector will work perfectly on your machine.
The grader needs a harness and a laser bypass. Here are the links.
CLICK HERE FOR THE INJECTOR
CLICK HERE FOR THE GRADER HARNESS
CLICK HERE FOR THE LASER BYPASS HARNESS
CLICK HERE FOR GRADER INSTRUCTIONS
CLICK HERE FOR LASER INSTRUCTIONS
CLICK HERE FOR INJECTOR INSTRUCTIONS
