SG-BC14-JD14 - Machine Side Bobcat 14 Pin to Attachment Side John Deere 14 Pin | Skid Steer Genius

  • $285.00

Ask a Question

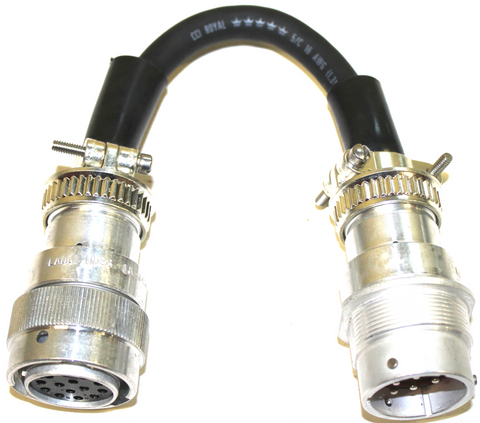

Here's a Genius idea.  Why not allow people with John Deere attachments run them on their Bobcat Skid Steer Loader?  This adapter does just that.  Just plug one end into your Bobcat Loader and plug the other into your attachment equipped with an 14 pin connector.  Turn on your machine and get to work.  This is another Genius product.  The best ideas at the best prices.

Note:  Also works with Kubota, New Holland, Case, Gehl, JCB/Volvo, Takeuchi & Yanmar loaders.

Note:  John Deere 14 Pin outputs 6 switched ports.  You will notice that this adapter has 7 pins installed.  Up/Down, Left/Right and right stick Up/Down are all that is available.  We do not provide the extra power port on pin K.  If you need this, please let us know and we can build it.

Another Note:  This adapter is designed to use electrical connections from one manufacturer's machine and allow it to connect electrically to another manufacturers attachments.  The machine that you connect to must have enough control buttons installed for the attachment you are running.


We Also Recommend

Customer Reviews

Based on 1 review Write a review

QUESTIONS & ANSWERS

Ask a Question
  • Hello, I want to install a Deere/FFC SB60B Snow Blower with Deere 14 pin connector to a Bobcat S450 with a 7 Pin Plug. Would you have an adapter harness for this type of application?

    Yes.  On the 14 pin you will need to move Pin A to B so the ground is in the correct location.  If they use C & D, you will need to move them to E & F.  Not my fault.  It's a John Deere issue.

    CLICK HERE FOR THE CORRECT CONTROLLER

  • I have a John Deere 317G and i want to run a bobcat soil conditioner and SG60 stump grinder. I have a 14 pin on my deere and bobcat runs the 7 pin. Will this connector work or what will i need?

    No.  This is compltetly the wrong adapter.  Your attachments are digitally controlled.  You have to get rid of the computer in each attachment.  Please click the following links for what to do.

    Soil Conditioner

    SG60

    John Deere Pinning

  • hello I have a Bobcat 6 way Grader I'm running on my T770. I'd like to run that grader blade on a John Deere 333g. will this adapter work for the electrical? Thanks

    Does the Bobcat have a 14 pin kit installed?  Does the Grader have a 14 pin kit installed?  What size is the grader?  Are you running laser receivers?

    Most answers can be found here by clicking the link below.

    CLICK HERE

  • Is this BEFGH to AEDGC?

    No.  B - CDEFG to A - CDEFGH

  • Just received our plug , we have a JD331g and a cat190 rake, sg-bc14-jd14 adapter plug, trying to get the left or right roll/side to side

    Then is looks like your ordered incorrectly.  It literally says in the description and the heading that it is for a Bobcat machine connecting to a John Deere attachment.  We do not know what else we could do to not have you order the incorrect item.

  • i have a bobcat 863 7pin femal plug on machine. will this adapter plug into a johndeer sb 78 snow blower

    No it will not.  This is a 14 pin Bobcat to 14 pin John Deere adapter as the heading states.  You require a 7 Pin Bobcat controller to John Deere 14 pin.  You will need this controller but will also have ot move the ground pin in the attachment harness.  Do not try to move any pins in our controller or you will permanently damage it.

    https://www.skidsteergenius.com/collections/7-pin-controllers/products/sg-cb-4014-genius-7-pin-4-output-controller-for-bobcat-loaders-toolcat-versahandler-4-port-skid-steer-genius


  • We have a Case/Bradco cold planer with a 14 pin connector on it, we want to hook it to our Bobcat T770 units that have 14 pin connectors as well. Will this adapter work for what we need?

    If it came from Case, the wiring is the same as Bobcat 14 pin so you should juet be able to plug it in.  Just make sure your hydraulic couplers are swapped because Bobcat is backwards to everyone else.

  • Needing an adapter harness to hook electrical connections from a Bobcat dozer blade attachment to a John Deere 333G skid steer. Please advise, THANKS.

    That uses the following harness kit. https://www.skidsteergenius.com/collections/bypass-cable-kits/products/sg-bph-14-6-9-dp. If you need more information on installation, check out video #117. Thank you.

  • I got 2021 kobota 75 slv -2 14 pin and buying a bobcat soil conditioner with 7pin for left and right angle and up and down cylinder for the wheel what adapter do I need

    CLICK HERE FOR INSTRUCTIONS

    Most common questions with answers can be found in our FAQ section FOUND HERE.

  • I need to go from a bobcat 7 pin tool Jenkins steel 14 pin. Will this work?

    This states that it is a 14 pin Bobcat machine side. You are asking for a 7 pin Bobcat machine side, so no this will not work.

    CLICK HERE FOR THE 14 PIN BOBCAT CONTROLLER

  • I have a snowblower ERSKINE s/n 1067790 package p/n 315263 flow 29-32 model 2410XL and I have a John Deere DB84 Worksite Pro S/N 1TODB84XJM0000801 blade: I want the adapter to fit these implements into my CASE 121F Compact Wheel Loader s/n NMHP03301

    Does the Erskine have a 7 pin trailer connector?  If yes, you will need to change the connector CLICK HERE or the harness CLICK HERE.

    The JD blade just needs the ground moved from A to B.  VIDEO FOUND HERE.
    Or buy this adapter CLICK HERE.

    Does the machine have a 14 pin control installed?  If not, click here for a control box. CLICK HERE and CLICK HERE

  • Hello. I have a Bobcat S185 with 14 pin system to operate my QuickAttach snowblower . I just need the loader side plug as it has a broken pin. Even a pin repair kit would suffice. For some reason, all i can find are the attachment side harness or 7-14 adapter kits. Can i just buy the 14 pin loader side plug or harness? Why is this so hard to find?

    Not sure why you are having trouble finding it since we have an entire section called connectors. CLICK HERE

  • I want to see if I can get a adapter to adapt a bobcat snowblower to a John Deere skid steer

    CLICK HERE

  • So will this plugg work on a bobcat brand millerhead to hohndeer sister

    I think you are asking if this adapter will work on a Bobcat Planer to a John Deere skid steer. If so, the answer is no.

    CLICK HERE FOR OUR FAQ

  • I have a case SR210B with a 14 pin male end. I need an adapter to run a bobcat hoe attachment. The attachment has a 7 pin male end.

    Very dangerous unless you build a proper frame bracket.  You would need a BPH harness to bypass the computer but we have no experience with these.  CLICK HERE

    AGAIN. THIS IS EXTREMELY DANGEROUS AND YOU SHOULD NOT DO IT!!!!

    These backhoes were never designed for any machines except Bobcats.

  • I need to go FROM a JD 317G 14 pin TO a Bobcat SG30 14 pin. Will your SG-BC14-JD14 adapter work?

    No.  You have it backwards.  Please read the title.

    SG-BC14-JD14 - Machine Side Bobcat 14 Pin to Attachment Side John Deere 14 Pin | Skid Steer Genius

    What you want is Machine side John Deere 14 pin to Attachment side Bobcat 14 Pin.

    CLICK HERE FOR THE CORRECT ADAPTER

  • I had a bobcat 883 and now I bought a John Deere 317 my attachment pins are different which one would I order

    If your Bobcat has a 14 pin and your JD has a 14 pin, the control pins are the same.  JD just moved the ground pin so nothing would work.  This makes you think that you can't buy universal attachments yet, they are all built by Paladin.  They just use a harness with a ground pin moved.  I always tell people to just move the pin from A to B in the attachment so the machine becomes universal.

    CLICK HERE FOR INSTRUCTIONS

    CLICK HERE FOR AN INTERESTING READ
