SG-BWC-100 - Bobcat Chipper CAN Bypass Kit | Skid Steer Genius

  • $315.00

Ask a Question

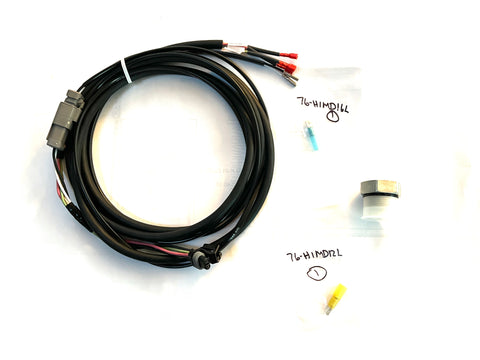

For Bobcat Chippers that have a RACS installed.  This kit allows the operator to bypass the RACS but still use the stop start lever to turn the drum rotation on and off in the forward and reverse direction.

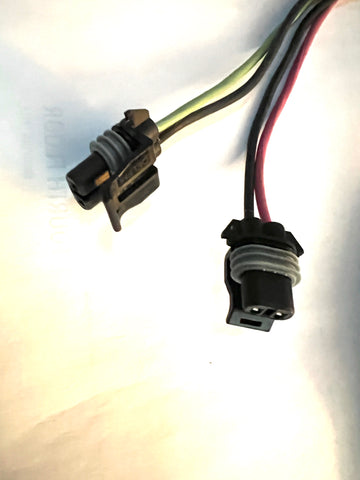

This harness requires a Plug And Play harness as well to connect to your machine.  The plug and play connector will be pinned out to provide a keyed power on source so the push/pull button can be used to provide power to the hydraulic control solenoid. It is the customers responsibility to move one of the momentary pins to the K pin for keyed constant power.  This only works on 14 pin equipped machines and will not work with John Deere prior to 2020 where pin K is not installed.



Does not work with 8 pin machines like ASV,Terex and Cat A,B,C Series.



Instructions:

There are two things that need to happen to make this work.

1:  Replace the solenoid brake with the supplied plug

2:  Remove the CAN controller and harness so you can replace it with our bypass harness.

PLEASE CLICK THIS LINK TO WATCH THE INSTALLATION VIDEO
