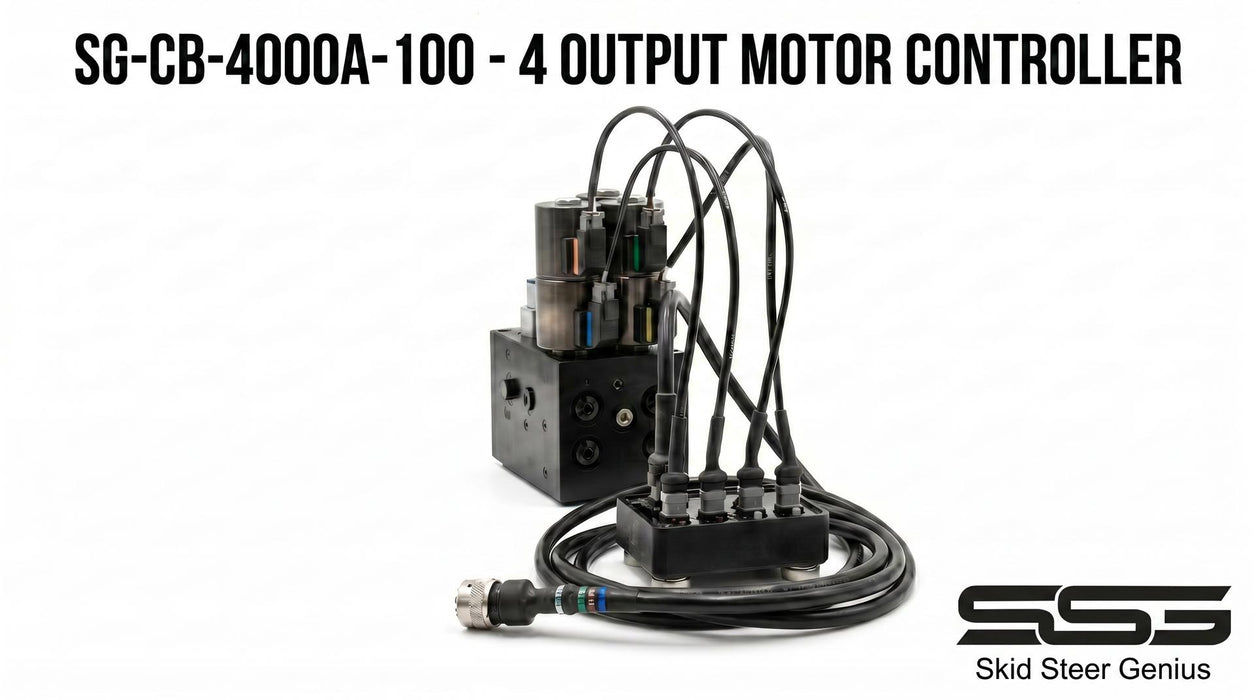

SG-CB-4000A-100 - Genius 7 Pin Controller For Bobcat® Loaders, Toolcat & Versahandler - 4 Port | Skid Steer Genius
This is a true Genius Controller designed for solenoid or electric motor/actuator controls.
First Function - 4 x 12 Volt Outputs: This adapter is specially designed to plug into any Bobcat® 7 Pin connector and allow the operator to run up to 4 x 12 volt solenoids directly from the stick controls of your Bobcat®. Works on Bobcat® skid steer loaders as well as Toolcat and Versahandler machines.
Second Function - Old Electric Motor Controlled Snow Blowers: This adapter is specially designed to plug into any Bobcat® 7 Pin connector and allow the operator to run up to 2 x 12 volt electric motors or linear actuators directly from the stick controls of your Bobcat®. It will automatically swap the polarity of the two outputs depending on which button you push on your control sticks. Works on Bobcat® skid steer loaders as well as Toolcat and Versahandler machines.
Switching between these functions is simple. When you first turn on your key, simply hold the left paddle switch in the up position for 4 x 12 Volt control, or in the down position for 2 x +-12 Volt Control.
Takes about 5 minutes to install. Is 100% plug and play. This configuration is for boom mount or attachment mount so you can use it over and over on any attachment that has up to 4 solenoids to control. This is complete and ready for plug and play directly into any Bobcat® branded machine. It has power, communication, and port status indicator LED's to show you that it is working and that it is receiving commands from the Bobcat® machine. Throw away the crappy controller that the manufacturers supply and switch over to true machine controls.
Buffalo Turbine Owners - This is the product for you. Your turbine uses a 12 volt motor to turn the chute one direction and then you need to reverse the current to go the other direction using the same two wires. Well that is exactly what this product will do for you.
What is included:

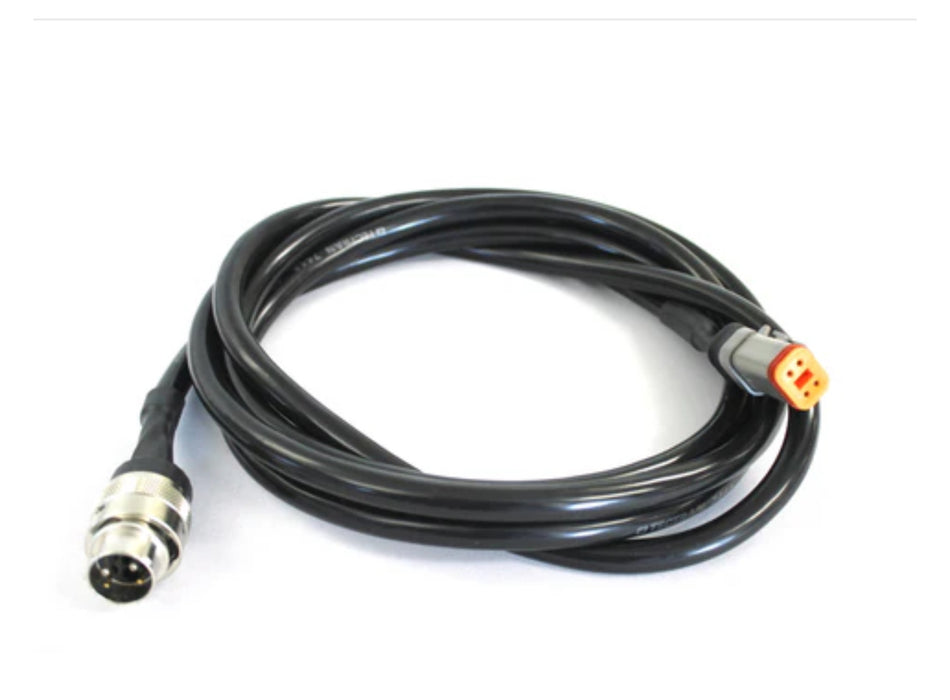

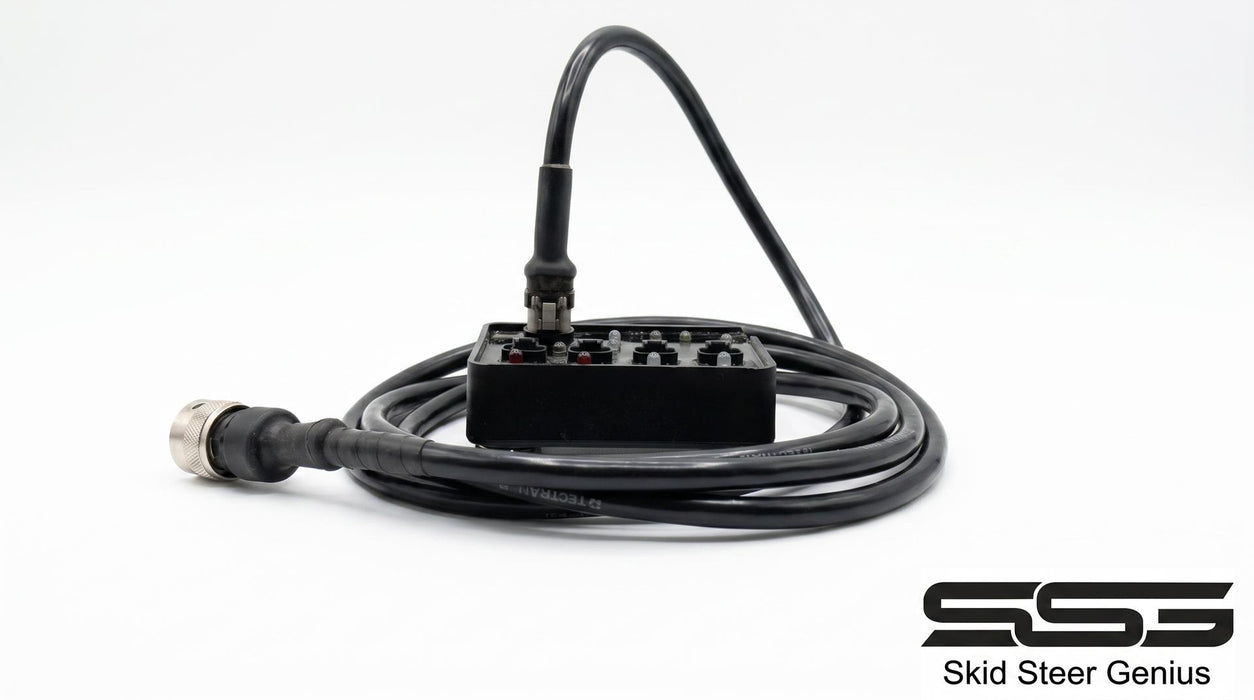

- 7 Pin Cable - 9 Feet Long - PN# SG-CBC-108

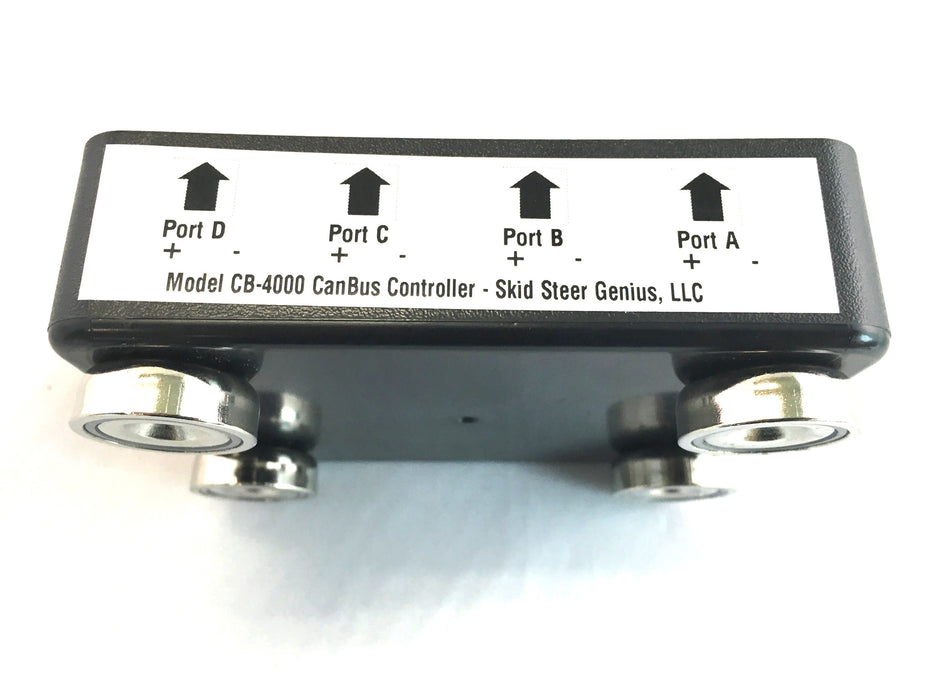

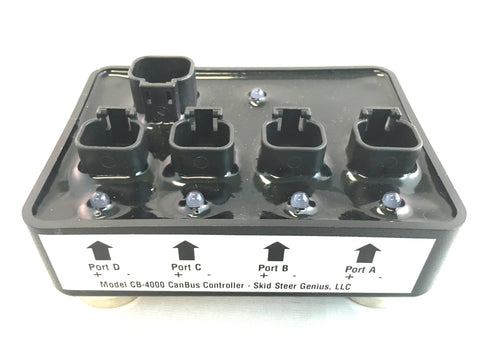

- CanBus Controller with 4 outputs. Up/Down & Left/Right - PN# SG-CB-4000A

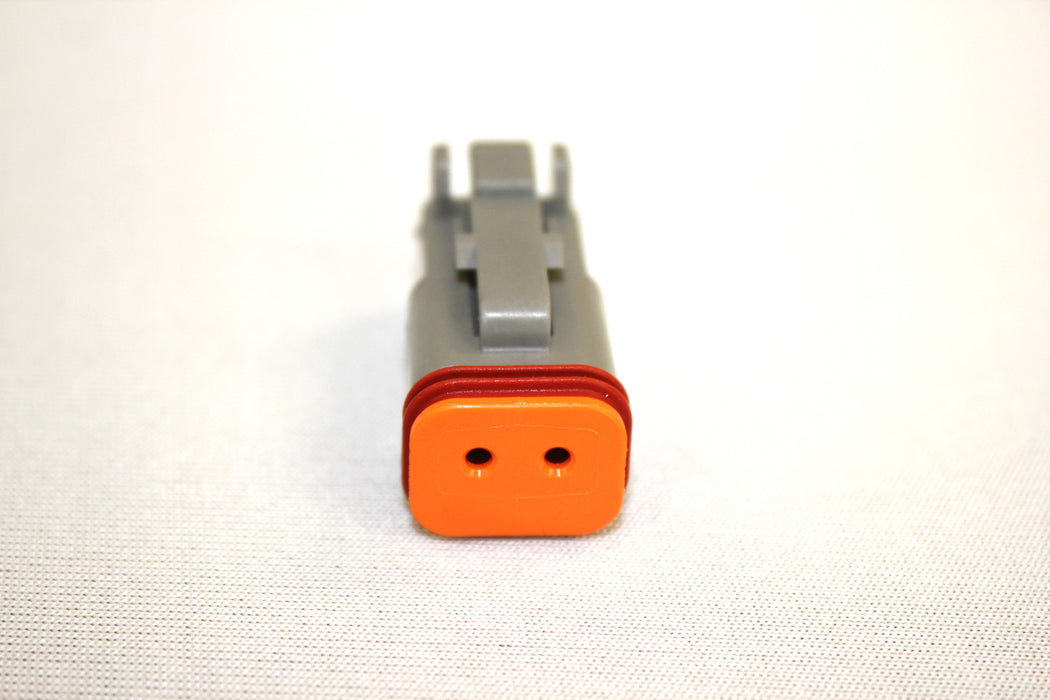

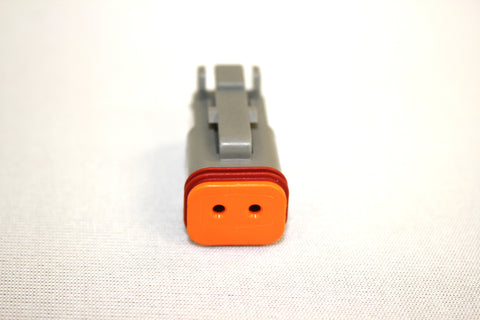

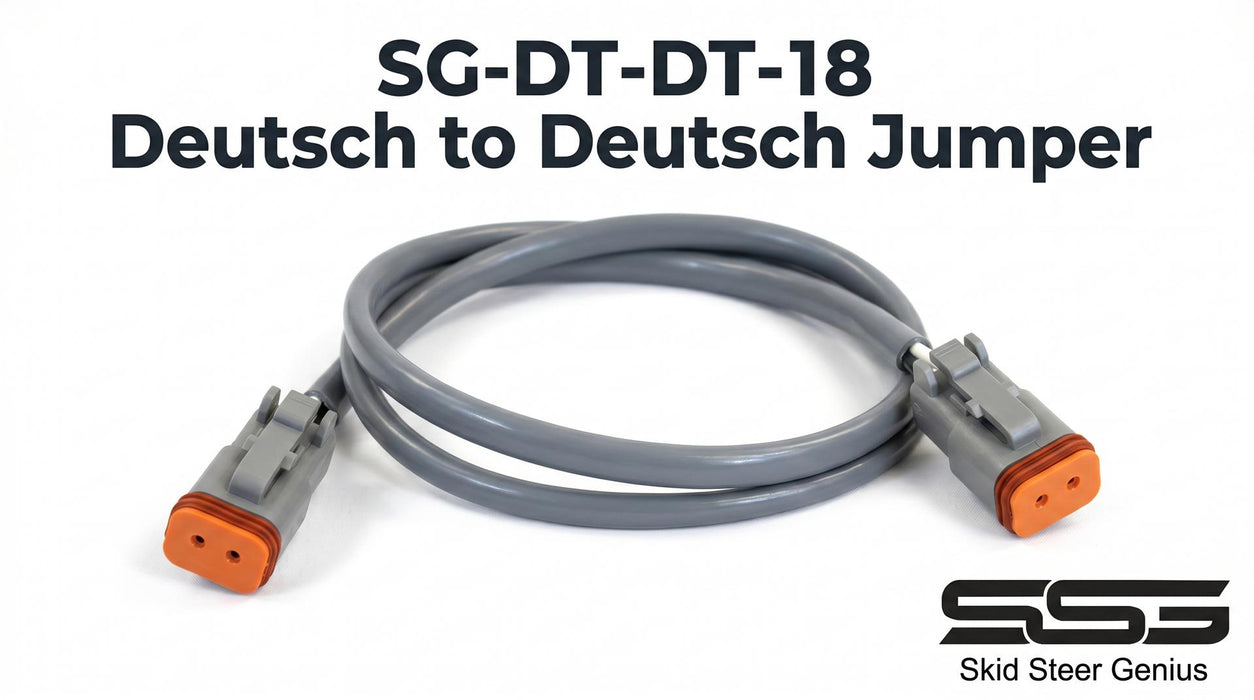

- 4 x 2 pin Deutsch connectors to plug into your Solenoids from the controller Box.
- Easy to Follow Instructions
Read more about how this product functions here.
View Manual Here.
This is not a Bobcat® product. This product is not endorsed by Bobcat®. We are in no way attempting to make you think this is a Bobcat® product. This product is optically isolated from the controls of your machine and can in no way damage your machine or controls. It is perfectly safe to use and will not damage a thing. If a dealer is attempting to tell you that your warranty will be voided if you use this product or that it will damage your machine, please call and report it to us. Skid Steer Genius is a specialty controls company. Our goal is to make anything you buy for your machine work on any machine. Others design and build in such a way as to stop you from doing this.
Bobcat®, the Bobcat logo and the colors of the Bobcat machine are registered trademarks of Bobcat Company in the United States and various other countries.
Bobcat Company is a subsidiary of Doosan Infracore Bobcat Holdings Co., Ltd., a wholly owned subsidiary of Doosan Infracore Co., Ltd.
All rights reserved.
We Also Recommend
SG-CB-6014 - Genius 7 Pin (6 Output) Controller For Bobcat® Loaders, Toolcat & Versahandler - 6 Port | Skid Steer Genius
SG-CB-4008 - Genius 7 Pin (4 Output) | 8 Pin Output Controller For Bobcat® Loaders, Toolcat & Versahandler - 4 Port | Skid Steer Genius
SG-CB-2000A-100 - Genius - 7 Pin Controller For Bobcat® Loaders - 2 Port | Skid Steer Genius
QUESTIONS & ANSWERSAsk a Question
Hello I am a technician in a bobcat dealership in Belgium I am very interested in your products which allow the adaptation of non-bobcat accessories the SG-CB-4000A-100 - GENIUS 7 PIN CONTROLLER FOR BOBCAT® I am very interested is it possible to send me this controller in Belgium ??? and at what price???
We can do this, but first please understand that others have tried this before you and they were shot down because our products are not CE approved. If you are OK with this and can still sell them then email me back and we can get some heading your way.
Hello I have a Top Cat Harley Rake that I need to power the angle from my bobcat T870. Not sure what I need. I have pictures of the connections that run to the wireless controller. I can send the pics once I know where to send them. Thank you
I have a S650 bobcat. 2011 model. 7 pin. I need controller to run my snow blower with hydraulic chute and deflection. It did not come with a harness. And has 4 Delphi connectors on the solenoids. What is my best option for kits to just plug and play. Thanks
What is the warranty of this item?
2 year full replacement unless you damage it. The most common damage is leaving it connected and driving away.
I need something like this to operate attachments for my Bobcat T200. I have a 7 pin plug on the machine side. I just bought a Landhoner Soil Conditioner which has two solenoids stacked on top of each other for the side to side angle. There is no plug for the machine, just loose wires from Douche plugs. I understand that this is two ports. I don’t know if I’ll need four ports. What part number do you recommend for me to purchase.
Chinese attachments are being dumped on RB Auctions in record numbers. As of the publish dates, these are the brands. Generally, they dump them at auctions, they don’t work so they change the brand name and start dumping again. This is really a case of you get what you pay for. Shame on RB for allowing this to happen! A few items will last a while but when they blow, you will need a machine shop to manufacture the parts since companies do not exist. If there is an address, it is fake or a mail drop. I am putting them all on one page since most items are the same, they just have a different name stuck on them.
Land Honor, Wolverine, Great Bear, Suihe, Top Cat, Mower King, TMG, American Manufacturing
NOTE: These companies do not exist so don't waste your time trying to contact them because you are on your own. All materials are China sourced so you will need to fabricate your own repairs, but hey they are cheap to buy.
For all Chinese Attachments:
Verify the voltage of the solenoids as many of them ship with 24 volt solenoids. You must replace the solenoid coils with 12 volt rated ones for the attachments to work. Here is a link to replacement coils.
I have a T650 that i want to run a old bobcat grader and a snow blower what do Ineed
Does the grader have a 14 pin? Are you planning on running lasers? You can use our 6000 controller if you are not planning on running a laser. It will work with your snowblower if you have a 14 pin connection.
i have a HLA sweeper attachment for our bobcat a770 skidsteer with foward/reverse plus sweeper side to side angle adjustment. will this kit work for that?
Yes this will work.
We have a concrete snip attachment that currently has 5 hoses that was ran on a old case machine. we want to add a valve set to make it usable on 3 hose bobcats with 7 pin. we need to open and close a cylinder and run a motor forward and reverse is this unit the correct controller?
If it's just a single valve, you can use this.
and this vavle.
This is a Rexroth valve. Please do not cheap out and buy a Chinese valve. They raise havoc with our controllers.
I have an attachment that uses 2 MPM type 45 solenoid connectors, can I wire this to work with those? Right now it is controlled with a standalone attachment controller but I want to be able to use it with the integrated controls in the bobcat
The CB-4000 comes with Deutsch plugs so you can wire them into the harness of your attachment and it will work.
WIL THIS WORK TO ALLOW MY BOBCAT T250 7 PIN TO CONTROL MY CAT-SG16B STUMP GRINDER ?
Does it require 4 or 6 controls? 6 controls if you see a cylinder on top which means you need a 6000 controller and not a 4000.
What size of conductor is the 4 x 2 pin Deutsch connectors designed to work with (14 AWG or 16 AWG)?
14 or 16 will work. We use 14 as our standard.
This includes the 7 pin cable too right?
108" long. Yes.
I have a t 590 bobcat and want to run two 12 volt solenoids for a snowblower is the sg-cb-4000-108k genuis 7 pin the unit i need
That product will work fine but snow blowers use 4 solenoids.
I have a Bob Cat Snowblower SB 200x72" Serial # 712909033, fitted on a S590 loader both 2014. Mice got into the wiring. Will the SG-CB-4000-108K work on my machine. Yes it is a 7 pin.
You would need a harness for the attachment and a controller for the machine.

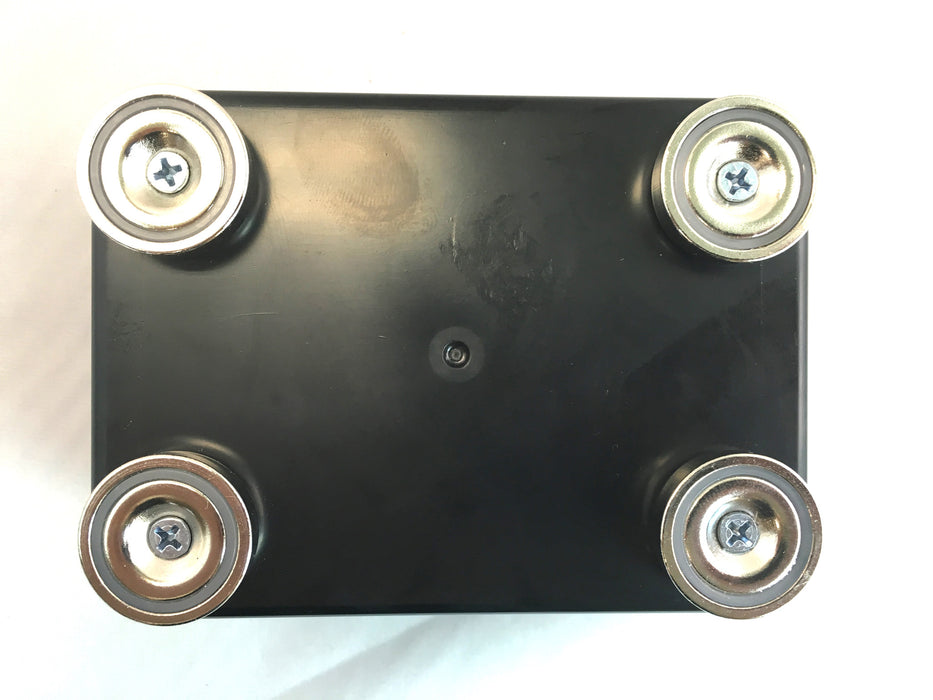

is this housing made of plastic or metal, I live in Fairbanks Alaska, we do get cold like Minnesota, Wisconsin, etc. from what I read we have to mount to lift arms or to implement being controlled, is this right? I have a 2019 T770

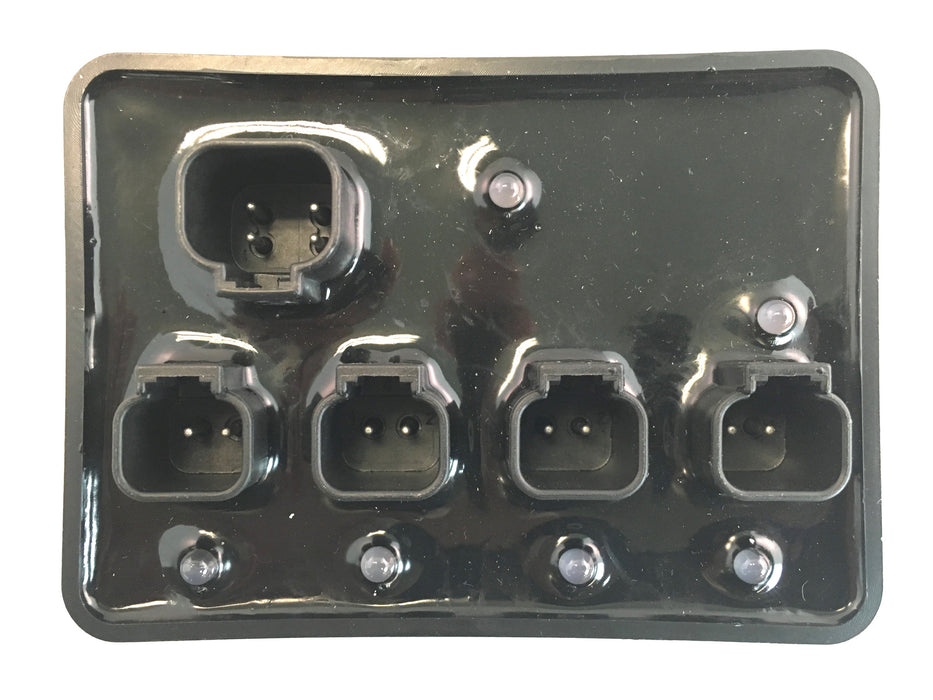

It is a plastic box fitted with a PCB and then filled with potting material that sets up and makes it waterproof. This kit is designed to be mounted in the attachment next to the solenoids the same way that Bobcat has done it since 2002.
I want to verify that the unit(the SG-CB-4000-108K) will work for me: I have a 2005 bobcat S185 7 pin and want to run three different asphalt planers(one set up for a cat 8 pin, and two others with 14 pin plug ins (I don't know what machine ran them)). Two of these asphalt planers have deutsch 2 pin plugs coming out of the hydraulic servos and one has the 14 pin harness wired strait into the servos. What I want to do is wire deutsch two pins plugs from the servos to the SG-CB-4000-108K. (one unit has 4 servos Bradco, one has 3 (Altec), the other has 3 plus an electric 12 volt pressure controller(Altec)). Will this work from? Do you need more info to know if it will work? Thank you
first of all your machine needs pilot controls (Joysticks) to use the 6000 controller. If you do, then the 14 pin planers should be no problem. The 8 pin is usually Cat A,B,C related so it probably has 5 hoses. If so, you will lose the side shift control if you try to operate it because old Cats used an extra set of hydraulic controls to operate two of the functions. Please verify what you have and get back to us. The planer will have 5 hydraulic hoses.
When do you expect this item back in stock?
4000's are about a month. There is a huge demand so they will sell out fast. If you send us your contact information we can add you to the backorder list.
Will you be getting more SG-CB-4000A-100 - Genius 7 Pin Controller For Bobcat® kits in soon?
YES. They had to be redesigned due to a 2.5 year wait for automotive grade driver chips. They should hit the site soon.
When will the SG-CB-4000 be back in stock
Many many months as it has to be redesigned to use parts that we can actually buy.
Hello, we are a leading company for construction in germany. We need two of these controllers, is it possible to just get two insetad of the 10 pack. I've seen, that the single pack is regularly sold out. Kind regards and thank you for your answer.
They are being redesigned to use parts that we can actually buy. They are NOT CE approved so I am told they cannot be imported into Germany.
When will this be available? I see that I can buy 10 or 50 but not just 1. I am in the market ASAP
They are no longer sold retail but only for dealers and OEM's for their specific products. They understand that there is an 8 - 10 week wait.
SG-CB-6014-100 is the replacement. There are shortages on everything right now with re-designing in progress to bypass the chips that the automotive industry uses. Respond back and we can add you to the waiting list for when everything becomes available.
Any idea when this product will be back in stock?
It will be many months as we haveno choice than to redesign it so we can finally get some parts.
Any idea when you’ll have the SG-CB-4000A-100 back in stock?
No clue. We have an extremely unreliable supply chain right now.
When will you get the SG_CB_4000A-100 back in stock.
They are trickling in as we manage to fill the pipelines again. Best to preorder so that you are in the queue.
I have a 2015 bobcat skid steer i have the POS top cat boom mower I have bought your (SG-CB-4000A-100 - GENIUS 7 PIN CONTROLLER FOR BOBCAT®) kit i put it on i can get my up and down to work but my side to side wont work. i did verfiy that i am getting voltage to the SOL any help would be greatly appreciated?
i have a 4000a 100 from you just bought a telescoping swiveling tree sheer it has a remote but i want to use bobcat control’s can i use this on it? It has 2 solenoids on it but has one doesh on each solenoid
Sure. I see nothing wrong with using it on that attachment.
We have a 4 spool attachment with double acting cylinders, and are trying to control it with a t76 with 7 pin out put. I believe we need the 4000a controller, but am curious what joystick controls it will use to operate the different functions/spools.
B1/B2 & C1/C2
CLICK HERE FOR A VIDEO
I have a Level Best PD84 Laser Scraper Box. I need to adapt 14 pin connector to Bobcat S300. Requires Bobcat 14-Pin Connector Kit (P/N 6733136) which is very expensive, complicated to install and not readily available. https://www.dropbox.com/t/9KnXSEMsLUHtHSNV Installing Topcon 9164 2D system. Must read Can-Bus signal. Is the SG-CB-400A-100 the correct kit?
I tried 4 times to meet up with the Level Best engineer at Conexpo last week so I could get a schematic from them. None of their people seemed to care about what I did so I gave up. From what I could see they have 6 controls installed. This means you would need one of our SG-CB-6014 controllers. I would need a schematic from you to be able to see how to wire it. If you just ask for Bobcat 14 pin wiring you should be good to go.
It's funny how these people don't understand that we are here to help them sell their products. Drives me crazy.
Have a bobcat t76 and I need to know if this is what I should buy in order to go from my 7 pin on the machine the the 14 pin on the land pride kubota bb3084 box blade attachment? Or would you suggest a different kit?
If the Land Pride is 14 Pin, then I would use this CLICK HERE
Do you have any dealers in Alberta Canada
Everything is shipped direct from our warehouse in Las Vegas. Dealers add 40%.
Have a bobcat s76 with 7pin. Will this be what I need to control a erskine snow blower?
It's possible if they have Deutsch connectors on their solenoids. We need to know what connectors are being used before we can tell you for sure. Pictures of the harness and solenoids would help us help you faster.
Hi I have a t630 bobcat and I bought a stump grinder for it and it has four solenoids will this control work with my bobcat I am trying to operate it with my two joint sticks
Yes it will operate up to 4 solenoids.
I am trying to convert a 6 way grader to my Bobcat T770, the grader has 3 solenoids with 2 wires on each solenoid. What adaptor do I need?
What brand of grader? Do you want to run laser receivers?
