SG-BC14-JD03A - Machine Side Bobcat 14 Pin to Attachment Side John Deere 3 Pin | Skid Steer Genius

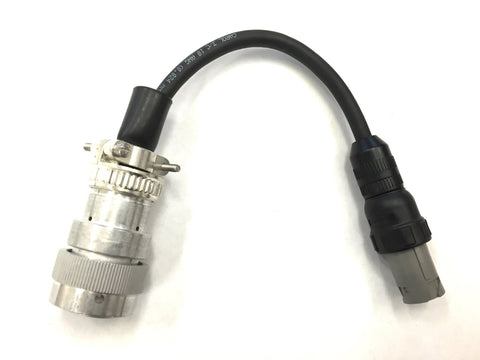

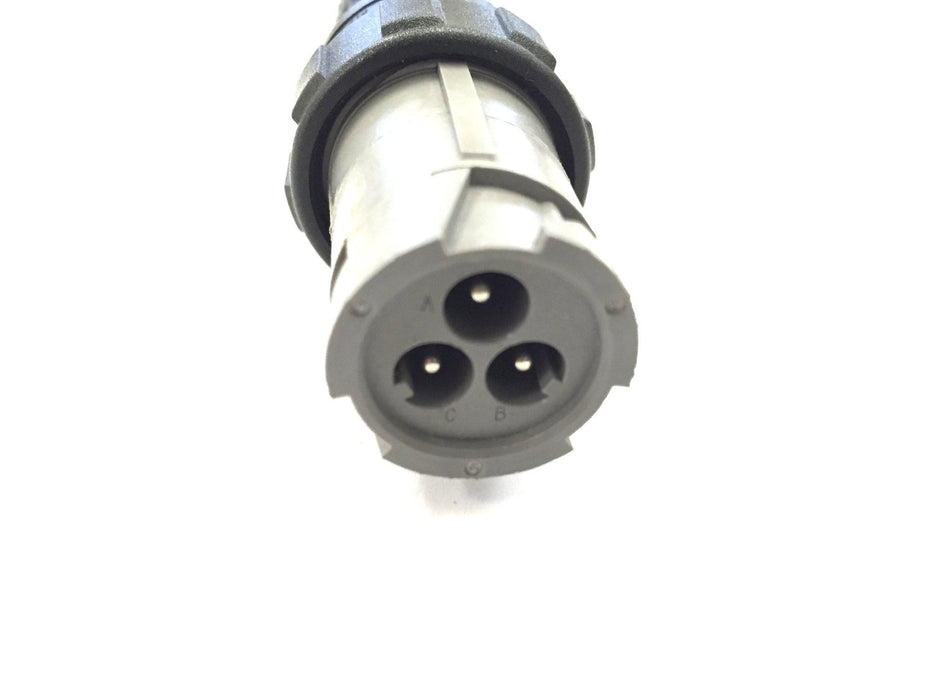

Here's a Genius idea. Why not allow people with John Deere 3 Pin controlled attachments run them on their Bobcat Skid Steer Loader? This adapter does just that. Just plug one end into your Bobcat 14 Pin Connection and plug the other into your attachment equipped with a 3 pin connector. Turn on your machine and get to work. This is another Genius product. The best ideas at the best prices.
Also works with Cat-D Series, Kubota, Case, Gehl, Mustang, Takeuchi, New Holland 14 pin.
Note: John Deere 3 Pin outputs only 2 switched ports.
We Also Recommend
Customer Reviews
QUESTIONS & ANSWERS
Ask a Question-
Will this work on a 2021 Takeuchi TL12V2 high flow skid steer?
Yes it will work if you have a machine with a 14 pin installed and a John Deere attachment with a 3 pin connector.
-
Mine has the 7 pin
What you selected will not work. It states that it is for a 14 pin to 3 pin.
CLICK HERE FOR THE 7 PIN LINK -
Will this work for the t76 bobcat
Does your T76 have a 14 pin connector or a 7 pin? This adapter is for older Bobcat's that have a 14 pin or newer ones where a 14 pin has been added.
-
I have this adapter to run a JD power rake on a Kubota skid steer, can you tell me what buttons to use on the Kubota to angle the JD rake ? Thanks for your help.
It is fired by the C & D pins. Every year and option of Kubota is different. If you respond to this, I can send you the Kubota spec sheet.
-
Is this the adapter I need to go from a JD PR72B power rake to a Kubota skid steer? Thanks for your help
How about this?
CLICK HERE -
Can I get the female three pin also with this.
-
I have this adapter for a new holland c337 and a John Deere power rake. What button do I need to use on the loader to angle it?
The left handle top buttons that trigger pins C & D.
-
Is this the adapter I need to attach a JDPR 84B power rake to my Cat 289D3 ?
If the rake has the 3 pin JD connector, yes. Sometimes there is a square connector farther down.
-
Will this connection fit a case tr340 to a John Deere Harley rake
If the Harley rake has the small 3 pin connector it will work.
-
Needing to go from 3 pin Deere Attachment to 14 pin Cat machine. Cannot seem to find that exact match on the website unless I have just overlooked it. Thank you.
This is the item.
SG-BC14-JD03
The first 4 pins are all common between most machines. Cat just screws it up on the last two. -
I'm looking for a Bobcat Machine side 14 pin to a John Deere Attachment side 14 pin. I don't see that option.
It's very easy to find our items with our search feature. In this case, you have a Bobcat machine BC going to a John Deere Machine JD. The call out would be BC14-JD14.
Here is the link.
https://www.skidsteergenius.com/collections/adapters/products/sg-bc14-jd14-machine-side-bobcat-14-pin-to-attachment-side-john-deere-14-pin-skid-steer-genius -
Will this harness work on a JCB Skidsteer on the 14pin?
Yes it will fit on the 14 pin and then it needs to plug into an attachment from John Deere with a 3 pin connection.
-
Would this connector work with a Kubota SVL75-2 HFWC
If you are connecting to a John Deere attachment.
-
would you be able to tell me which pin locations control the button 5 and 6 on a Caterpillar 262 D? I bought the Cat 14 pin to John Deere 3 pin connector, but some pins need to be moved around to correct locations
This should be pinned out to B - Ground and C & D for controls which are the buttons next to your left leg on top of the stick. There is a sticker on the glass showing you this.
-
I’m picking up a John Deere power rake I think it has a three pin connection I’m trying to hook it up to my bobcat skid steer’s how much is the adapter and how fast can I get it
I believe that this is what you need.
https://www.skidsteergenius.com/collections/7-pin-controllers/products/sg-cb-2000x-100-jd-genius-7-pin-controller-for-bobcat-loaders-john-deere-3-pin -
I have a customer with a Deere CTL, PIN 1T0333DBPB0201978. He would like to run his Bobcat attachments with this machine. What adapter harnesses are necessary to make this happen? Is there one, or is there a combination of harnesses. Originally we ordered your harness SG-BPH-14-6-9DP as well as the Bobcat harness 6725353, but this doesn't seem to work.
Your best to look at the harness selector. John Deere does not provide a powered K pin so Bobcat harnesses won't work. It's all part of their plan.
https://www.skidsteergenius.com/pages/choose-your-harness-here
-
I have a Cat 279D skid steer with a JD Power rake. is this the adapter that I need?
If the power rake has the small 3 pin plastic connector, then this would be the right one.
______________________________________________________ -
WOULD PART# SG-BC14-JD03, FIT ON A CASE TV380 SKIDSTEER WITH A 14 PIN HOOK UP, ANS A JD 3 PIN ATTACHMENT?
Correct.
-
Will this work for a JD power rake with 3 plug to my new cat 255
Yes, it will work.
-
Will this work with a Manitou 2150RT? I am assuming so since it works with Mustang/Gehl.
Yes. It will work.
CLICK HERE FOR MORE MANITOU INFORMATION -
Will this work on a Kubota SVL 90-2
Kubota to a John Deere 3 pin attachment - Yes.
-
Will this fit new Kubota Ssv 65?
Yes to a JD 3 pin attachment.
-
I’m needing to run a Harley rake. The rake has a 3 pin John Deere to a Kubota 75-3. Do you have a adapter for this?
This is the correct adapter CLICK HERE
-
I am looking for a wiring harness to control a McClaren 6 way dozer blade. My skid steer is a Case TR340. What product/products do I need?
-
Will this work on a new holland 337 to use a three pin tree shearer
If the connector matches and it is a John Deere brand then I see no reason that it won't work.
-
I have a John Deere 319D that has the 7 pin connection and I need to convert it down to a 3 pin for a John Deere power rake. Will this adapter work
It is a 14 pin connector. Yes this is close but if you have not moved the ground pin in your machine and you don't want to you will need to move the ground from B to A in the adapter on the 14 pin side.
-
need the number to your customer service or parts department. Need to know do you accept government credit cards. If you do, I need to talk to someone, because I have a part that I need to order. Also, we are tax exempt and I need to know if we need to set up a government account with you. I can be reached at:(270) 798-0625
Yes we do, but you need to send us your exemption certificate and we will set it up on the web site.
-
trying to get giant 2700hd+ 3pin converted to a 14pin connector
Googles shows this as a compact wheel loader. Is this correct? If so, the best I can offer is to chop off their connector and add a 14 pin. CLICK HERE
-
Will this work on Case SV 250 for a Deere BA84 Sweeper?
Yes. In the description, it says this:
"Also works with Cat-D Series, Kubota, Case, Gehl, Mustang, Takeuchi, New Holland 14 pin." -
does this fit the Caterpillar D-series skid steers? Description states it is for bobcat branded units
The has been copied and pasted below.
Here's a Genius idea. Why not allow people with John Deere 3 Pin controlled attachments run them on their Bobcat Skid Steer Loader? This adapter does just that. Just plug one end into your Bobcat 14 Pin Connection and plug the other into your attachment equipped with a 3 pin connector. Turn on your machine and get to work. This is another Genius product. The best ideas at the best prices.
Also works with Cat-D Series, Kubota, Case, Gehl, Mustang, Takeuchi, New Holland 14 pin.
Note: John Deere 3 Pin outputs only 2 switched ports.
-
I have a Weber Mfg. Hydraclip Tree Shear that I would like to run on a Bobcat T750. Do you have an adapter for that?
-
Do I need to re-pin this to make it work on Case? And if so, what and where?
No. Case uses the old Bobcat 14 pin standard. It state this in the description.
"Also works with Cat-D Series, Kubota, Case, Gehl, Mustang, Takeuchi, New Holland 14 pin." -
I have a 2022 Kubota 97-2 and a John Deere power rake. Is this the proper adapter?
If the rake has the 3 pin plug installed, then yes this is the correct adapter.
-
Will this work on a 14 pin cat?
Yes.
-
I have a cat 299d2 xhp do I need to change any of the pins for this to work on a johndeer Harley rake
NO. Only two controls though.
-
What about a jcb 14pin?
JCB uses the same pin out as the original Bobcat 14 pin. The only issue is that they option out the controls so you could be missing some buttons and your attachment may require 1,2,4 or six controls. That is the toughest thing to judge.
