SG-CTSS-8 | ASV/Terex Seat Jumper Plug & Cat ABC-Series HF Plug

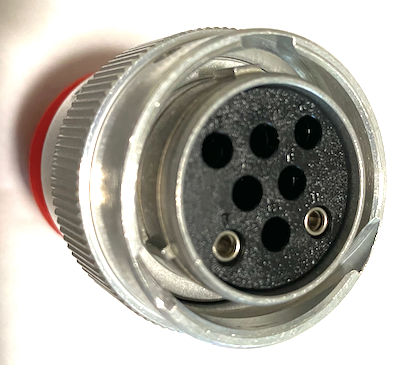

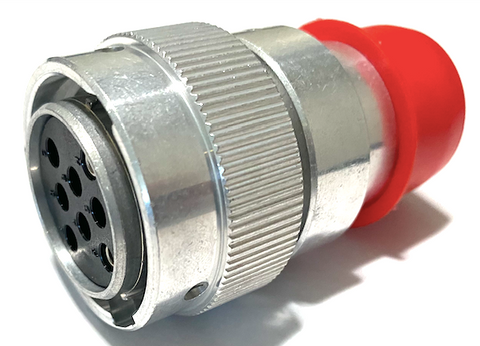

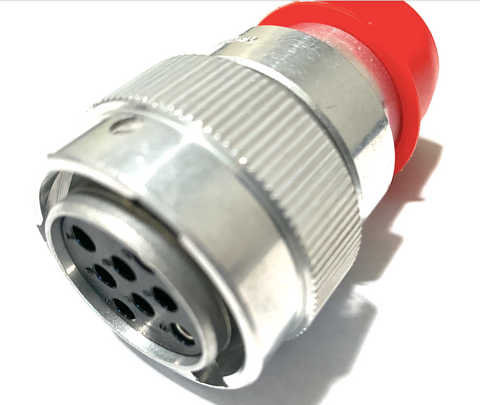

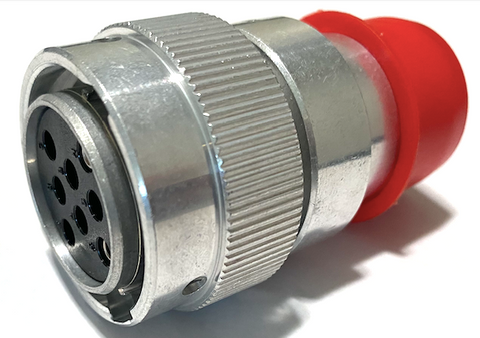

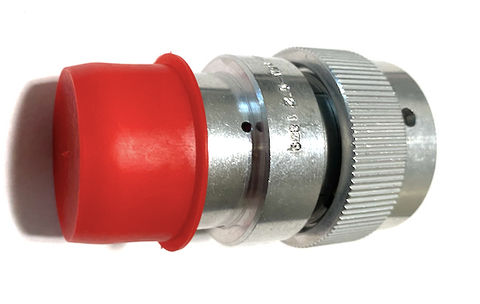

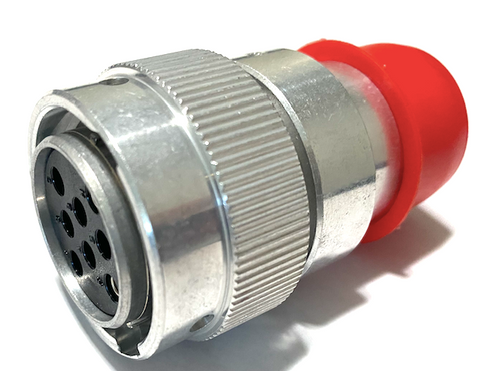

Cat A/B/C Series or ASV/Terex Seat Jumper Plug - This is the 8 pin jumper plug for the older Cat machines or ASV 8 pin or Terex 8 pin. It allows you to get out of the cab if you are running attachments like log splitters without the hydraulics shutting off as soon as you get out of the cab.
DO NOT ORDER THIS IF YOU HAVE A CAT D-SERIES MACHINE.
Note: It will stop the tilt cylinders from actuating as well as your power quick attach. You have to remove it to operate these functions.
CAT ABC Series machines need to have the sockets moved to jumper F & G.
We Also Recommend
QUESTIONS & ANSWERSAsk a Question
Will this fit a CAT 299C ? (Mine has an 8 pin plug)
You can use this with the understaning that you may need to change a connection as no one has ever given us a definitive answer to which connections to jump.
will this enable the high flow on my 2009 CAT 299C as it comes or am i going to have to rewire the plug for a different PIN location
You will need to move H to G. The tool is included. CLICK HERE FOR INSTRUCTIONS
Does this jumper enable the high flow on a 279C2 caterpillar skid steer?
Looking to order this "SG-CTSS-8 | ASV/TEREX SEAT JUMPER PLUG & CAT ABC-SERIES HF PLUG" and I need to get the lugs that you crimp to the wires. Please attach.
It comes already wired.
Can you move the pins around easily inside of the body? To accommodate jumping different pins. I am looking to jump a 272c into high fliw
Will this work to get high flow from a cat 287b Xps? The explanation with this connector is it enables the hydraulics when the operator isn't seated. mine is an older machine with an 8 pin connector.
You may need to swap the pins around as they were all different by year. It is possibly F & G that need to be jumpered.
