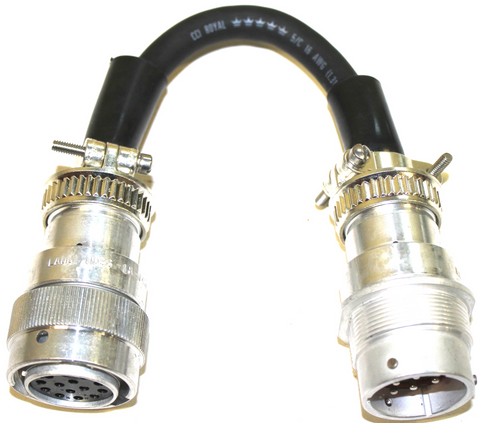

SG-JD14-CT8 - Machine Side John Deere 14 Pin to Attachment Side Cat, Terex & ASV 8 Pin | Skid Steer Genius
Here's a Genius idea. Why not allow people with Caterpillar attachments run them on their John Deere Skid Steer Loader? This adapter does just that. Just plug one end into your John Deere Loader and plug the other into your attachment equipped with an 8 pin connector. Turn on your machine and get to work. This is another Genius product. The best ideas at the best prices.
Note: John Deere 14 Pin outputs 6 switched ports. Caterpillar/ASV/Terex only outputs 4 ports. You will notice that this adapter has 5 pins installed. Up/Down & Left/Right are all that is available. This is a manufacturer limitation and not something that we have introduced.
We Also Recommend
QUESTIONS & ANSWERSAsk a Question
i have a john deere 326 e with a 14 pin plug with only 7 pins .i want to run a cat hm418c mulcher will the SG-JD14-CT8 WORK? THANK YOU.
If the mulcher is an old 8 pin and olny has 3 hydrauic lines, then yes.
We have a customer with a CAT PC310B Planer, on serial number tag says built in 2016, that we need to attach to a newer John Deere 333G. Would adapter SG-JD14-CT8 be the correct for this situation?
You are right in a transitional year. The older units had an 8 pin connector and 5 hydraulic lines. These will not work as is on a modern 14 pin machine. The cost to convert wil cost about $4000. The modern 14 pin attachments can be converted to use with this adapter.
I NEED THIS HARNESS IN THE REVIERS CAN YOU DO THAT? ALSO DO YOU DO RETURNS?
Do you mean in Reverse? If so, the part number is SG-CT8-JD14. Here is the link.
I have a customer with a Cat planer that has this connector but it has 7 pins in it. I want to hook it to a Deere skid loader (14 pin). Will this still work?
There are two types of connections on Cat attachments. 8 Pin which are installed in Cat A,B,C series and 14 pin which are for Current D series models. Older 8 pin planers have 5 hydraulic lines. These will not work on your JD. Newer D series planers have 3 hydraulic lines and will work on your JD.
You need to verify exactly what you have an choose this adapter if it is a D series.
Here are more details about your possible situation.
Erskine 2410XL ser# 1028417 snowblower uses 6 pins of the 8 pin connector. Attaching to a 2021 Deere 324G hiflow eh control 14 pin. The sg-jd14-ct8 seems right but I will need blower motor on/off, spout rotation and deflector cylinder. The blower has 3 lines. Can I have all 3 functions with this adapter
I have a cat 8 pin dozer blade trying to get an adapter for a deere 14 pin
This is the correct adapter.
Can this machine deer skid to cat attachment jump work the opposite way? I have a cat skid and a Deere Harley rake. Got rid of my Deere skid and need a jump for the new skid
This is exactly backwards to what you are asking. You have a CAT machine so the part number would be SG-CT8 or 14. You have a JD attachment but the attachment usually comes with a 3 pin and not a 14 pin so we cannot guess for you. How about you send us a photo of the machine connector and the attachment connector and we will send you a link to order?
Will this work for a 333g high flow on a cat high flow snowblower
If the Cat snow blower has an 8 pin connector.
I have a 2019 JD 333G, I am wanting to hook it up to a new 2022 FAE Rock Crusher. Will this harness work?
If the FAE is wired for a Cat 8 pin, then yes.
DO YOU HAVE DEALER PRICING? CAN WE GIVE YOU A RESALE CERTIFICATE AS WE WILL BE BILLING THE CUSTOMER.
Correct. Fill out the form on the web site and Craig will set you up once you send the reseller certificate. This is the forum. Not the form.
