The Injector - Add On 4 Controls | 14 Pin Output Bundle

  • $735.00

Ask a Question

THIS IS THE 14 PIN INPUT - 14 PIN OUTPUT BUNDLE

If you order from this page, you will receive only the switch pack and harness and a 14 pin output adapter.

This device will add 2 momentary controls and 2 locking controls to any machine which in most cases will give you 10 outputs.

This product does not work with John Deere machines unless you move the main ground wire on the machine.  CLICK HERE FOR DETAILS

Genius Control Injector Kit - CLICK HERE TO WATCH OUR VIDEO

This product was designed specifically to add controls to machines that are lacking enough for a specific attachment or to enhance their existing controls.

Here are some examples of why we created this kit.

1: Kubota years 2012 - 2018 only had two buttons meaning two functions.  With our kit, they get 6. * You will have to move some pins around since the primary functions will be missing from your stock machine.

2: Wanna run a Bobcat grader on a New Holland, John Deere (swap Ground), Kubota (2018+) and others.

How does it work?

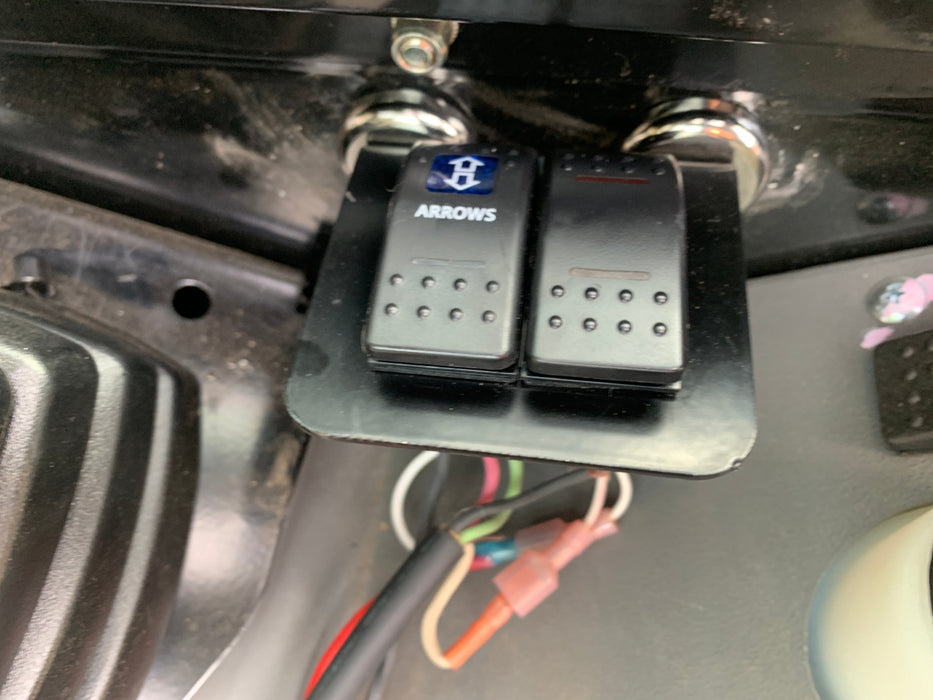

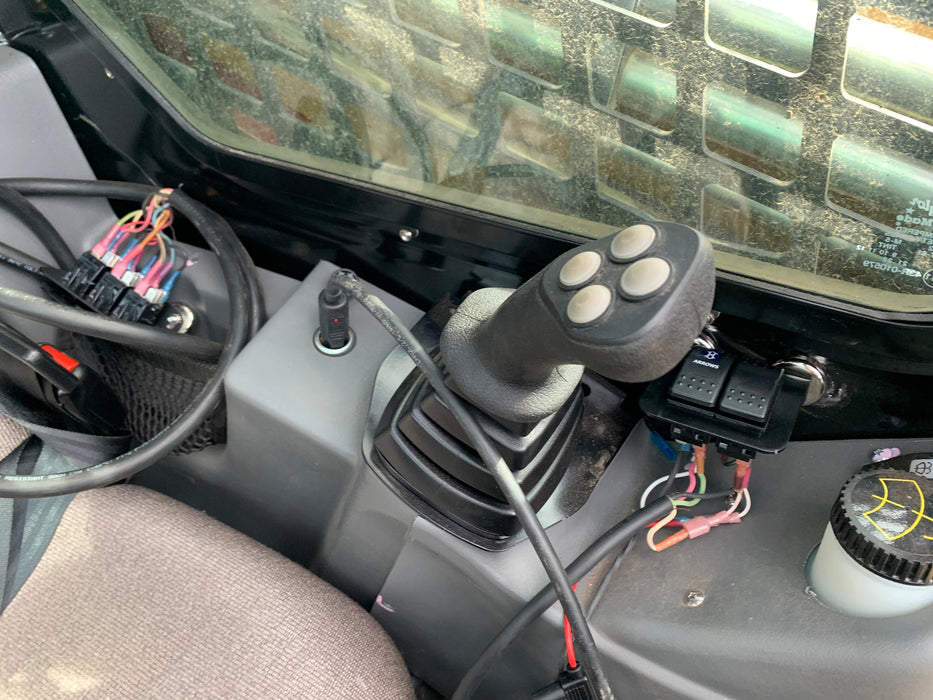

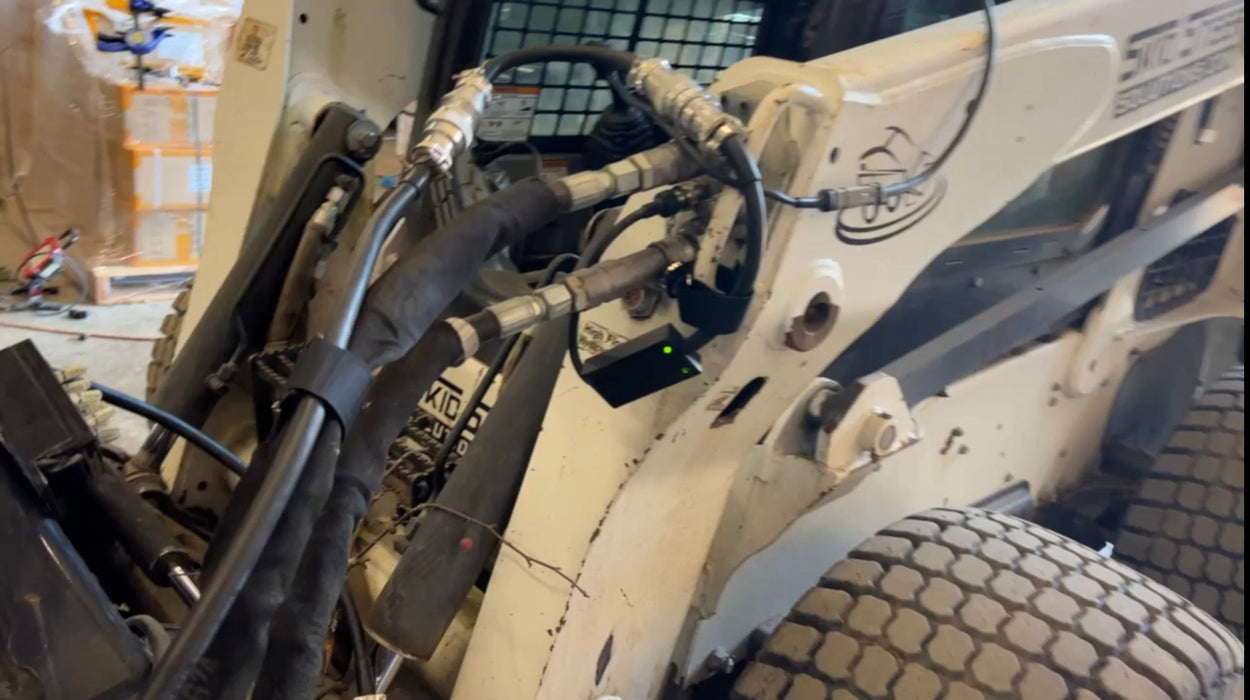

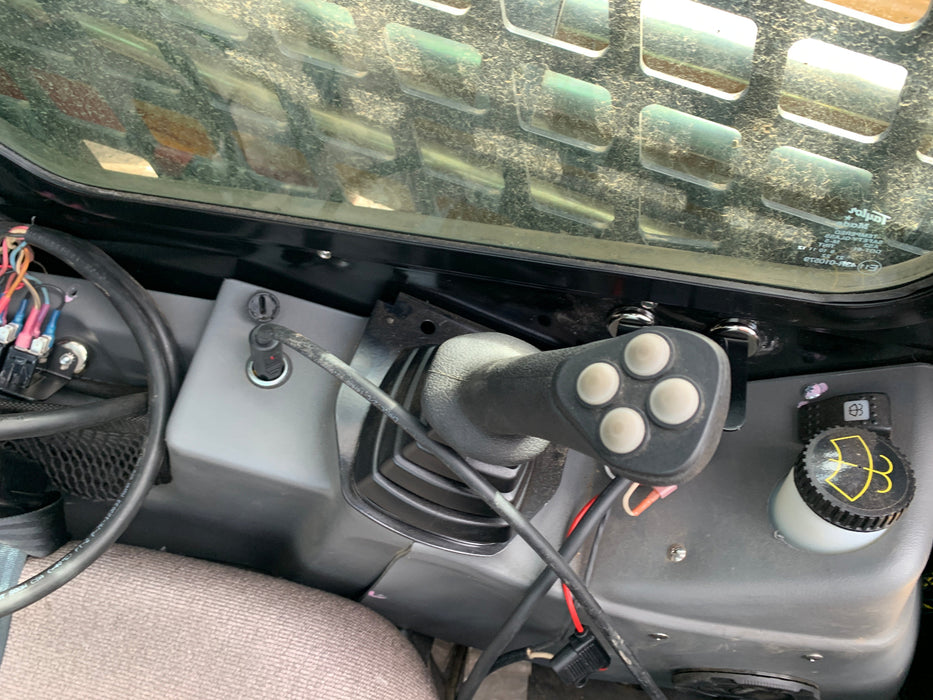

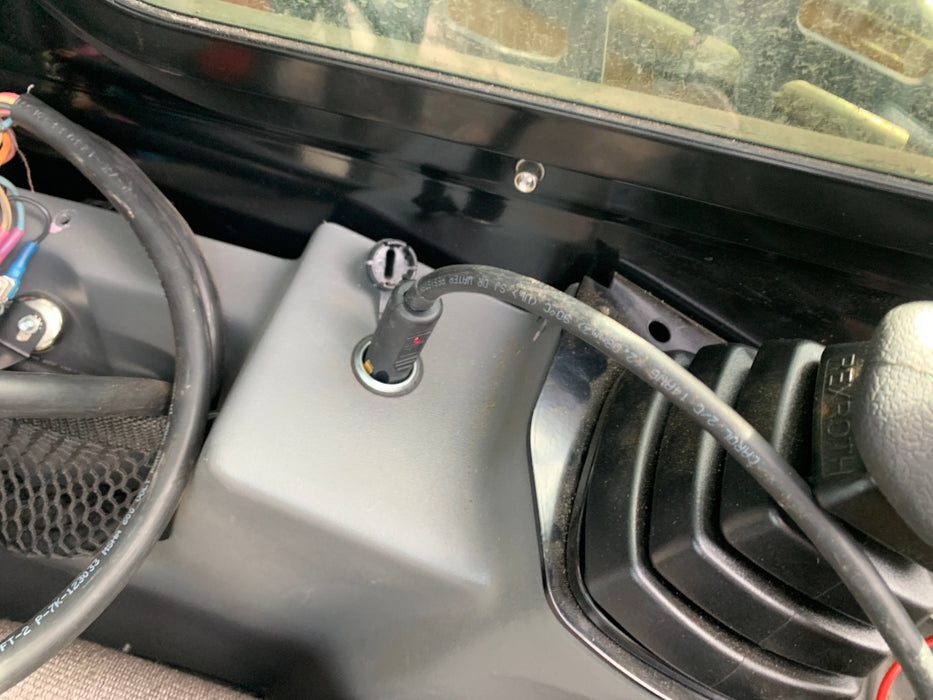

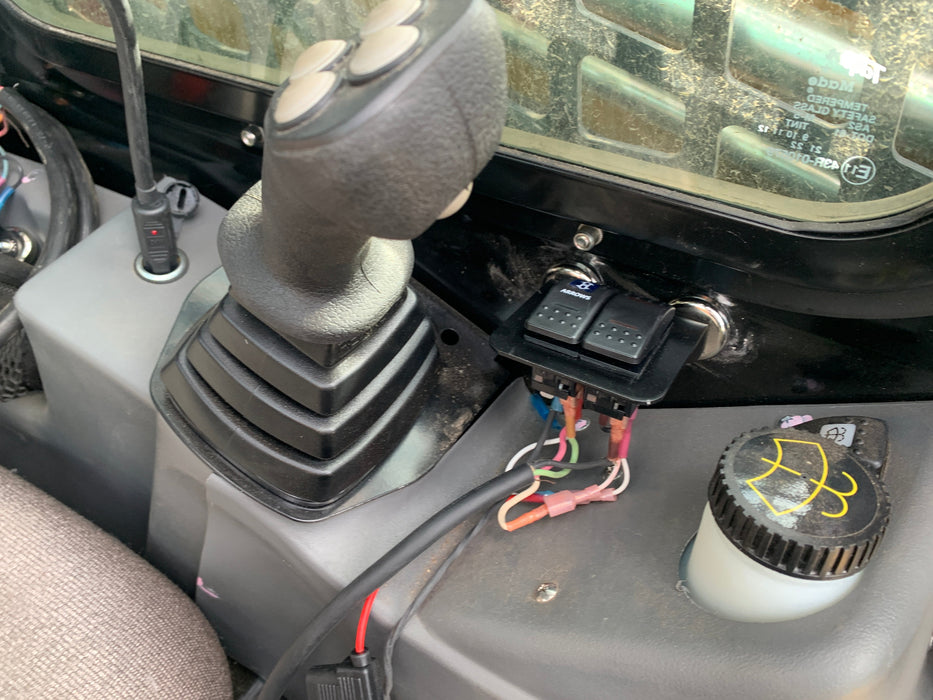

Our switch pack plugs into your cigarette lighter and provides two toggle switches to provide four additional controls to whatever your machine is already equipped with.  Simply attach the switch holder inside your cab using the supplied magnets, run the output cable out the boom to the hydraulic couplers following your hoses.

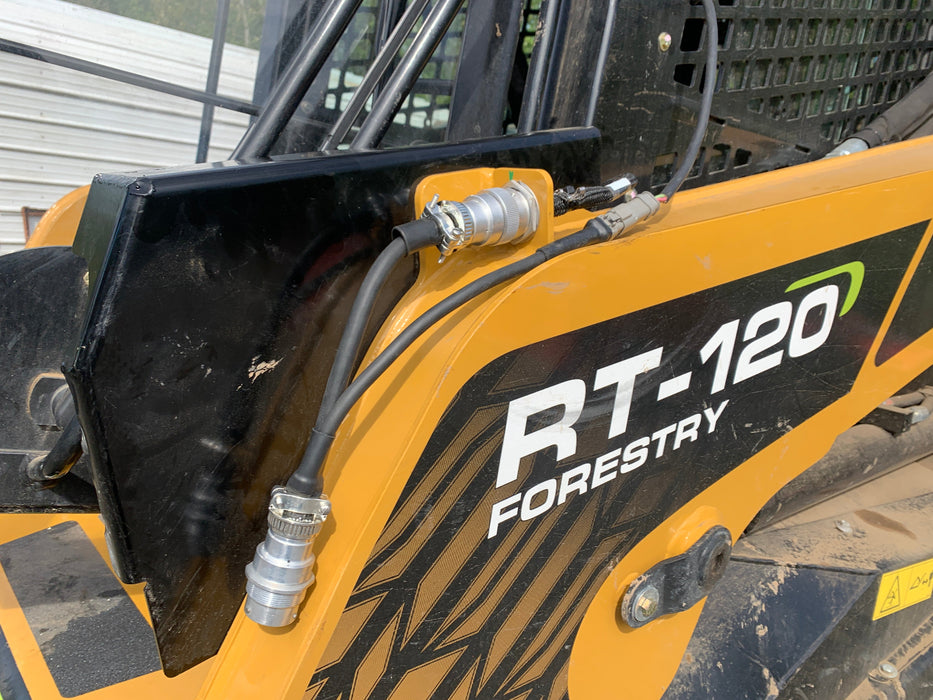

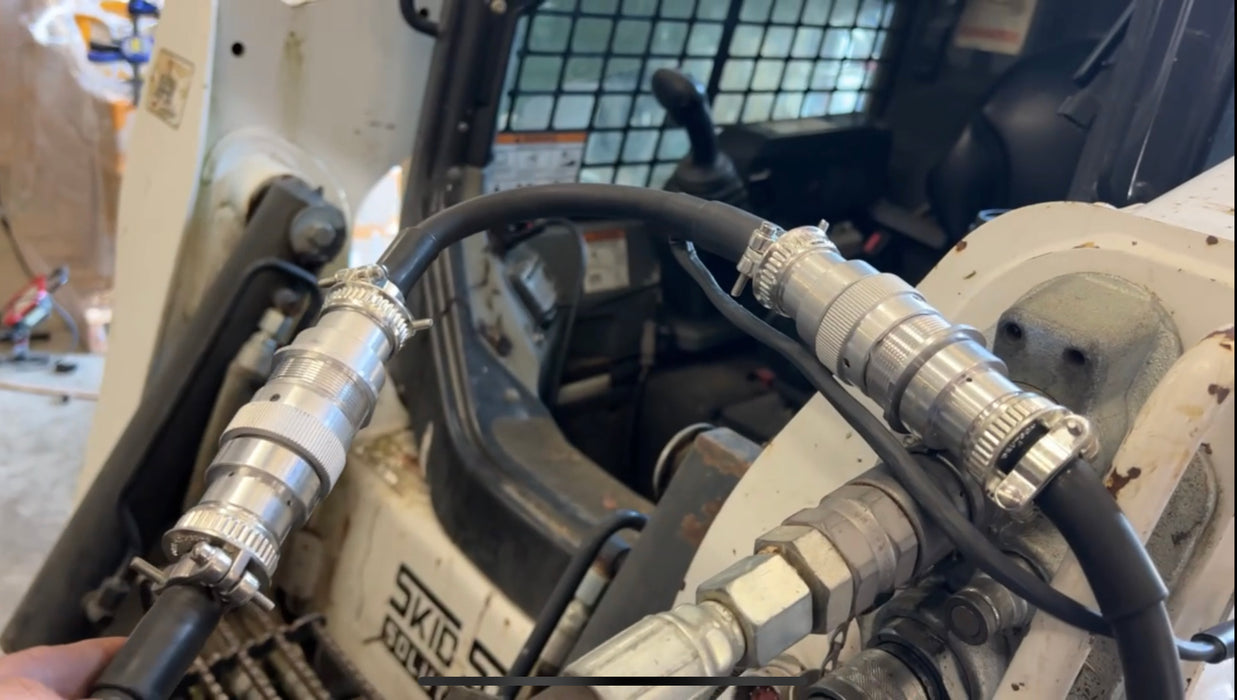

Using one of our adapters, simply plug in the connector and adapter at the end of your boom and you are ready to go.

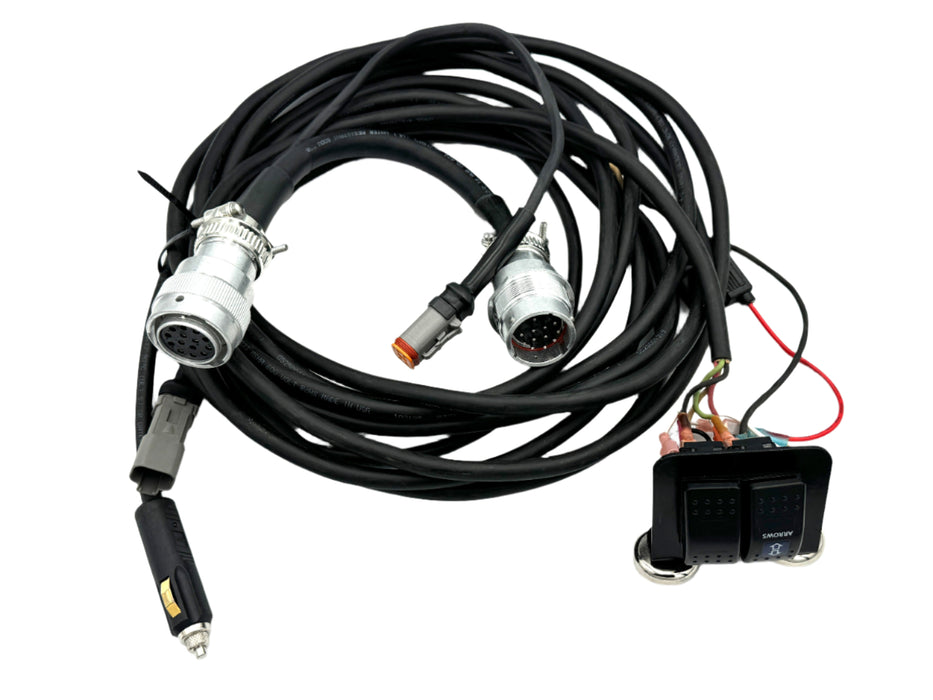

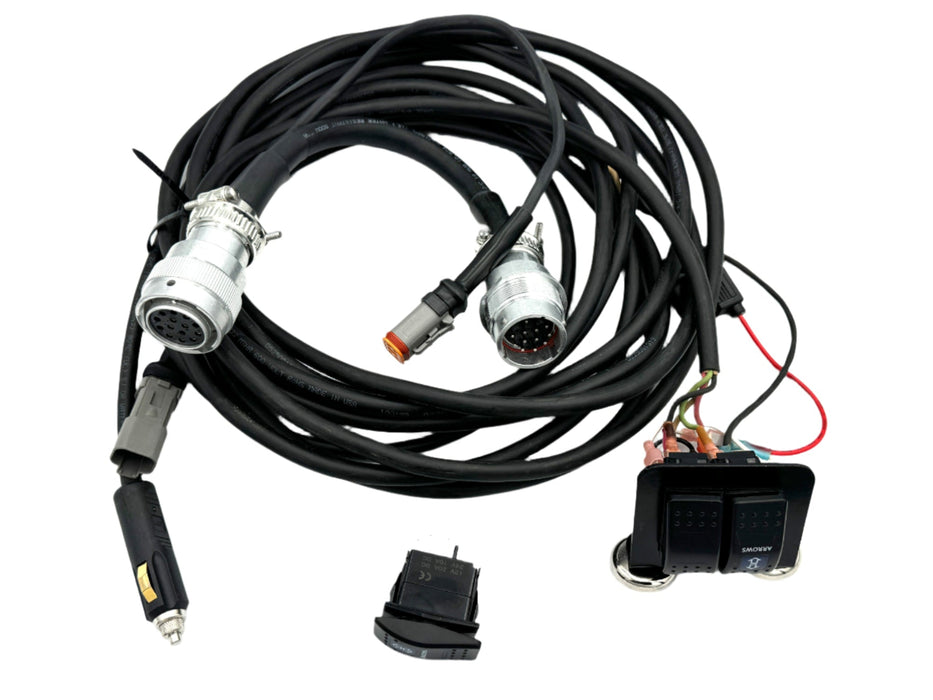

What's included.

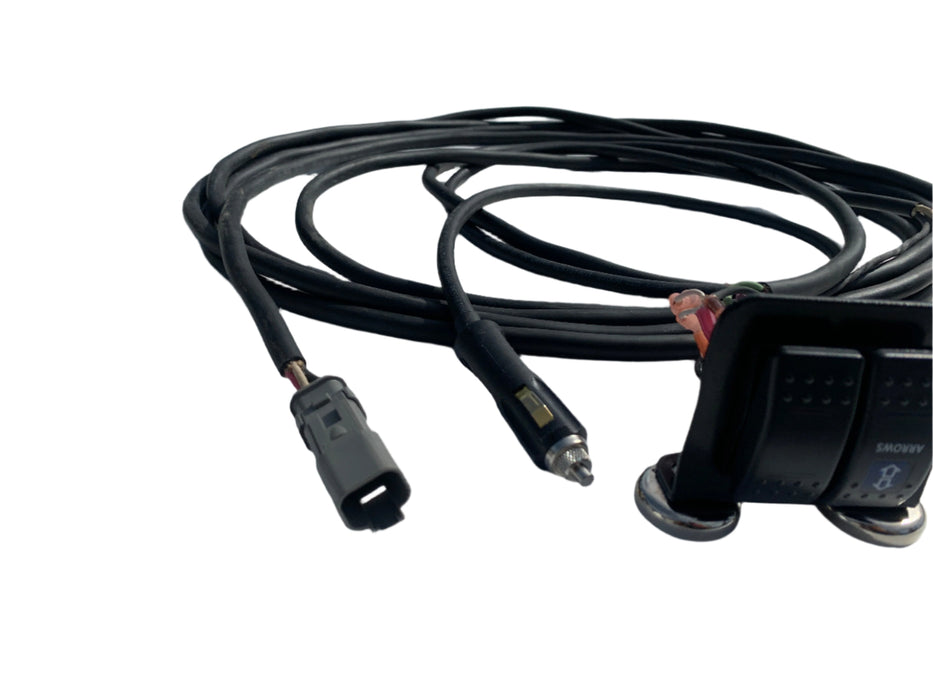

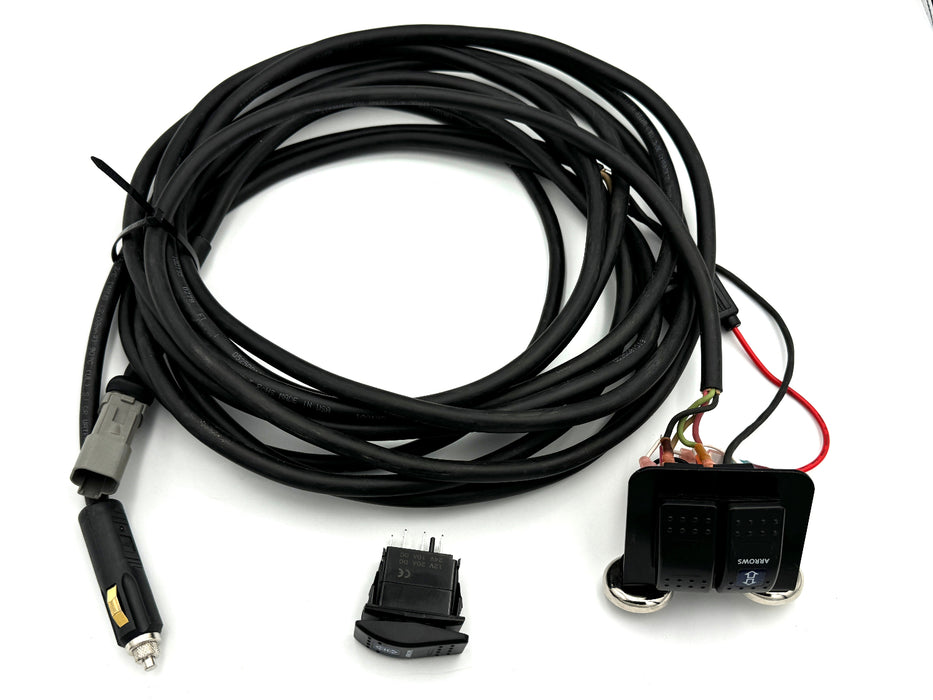

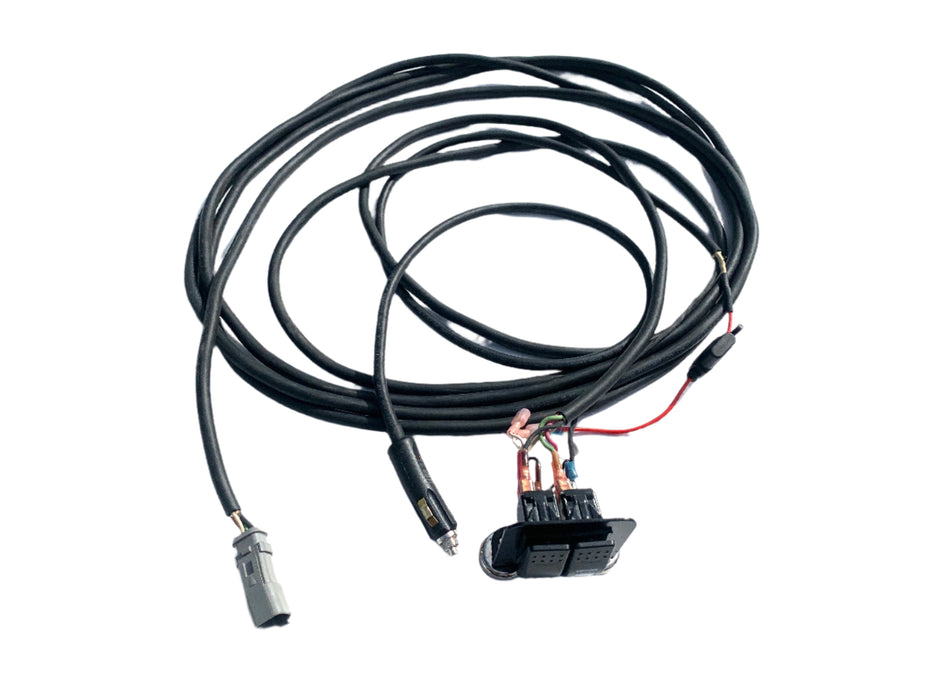

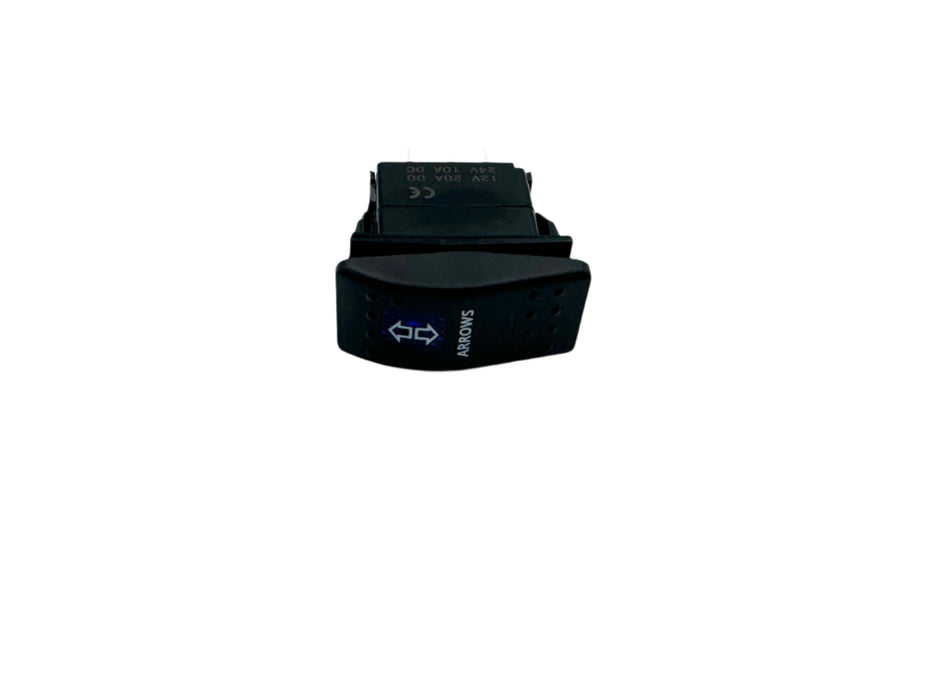

  • Switch packs installed in holder with magnets attached.  One toggle is momentary while one is locking so that you can switch some functions on and leave them.
  • Cable set with 20 feet of extension to get out your boom.
  • Cigarette style plug in for power (fused).

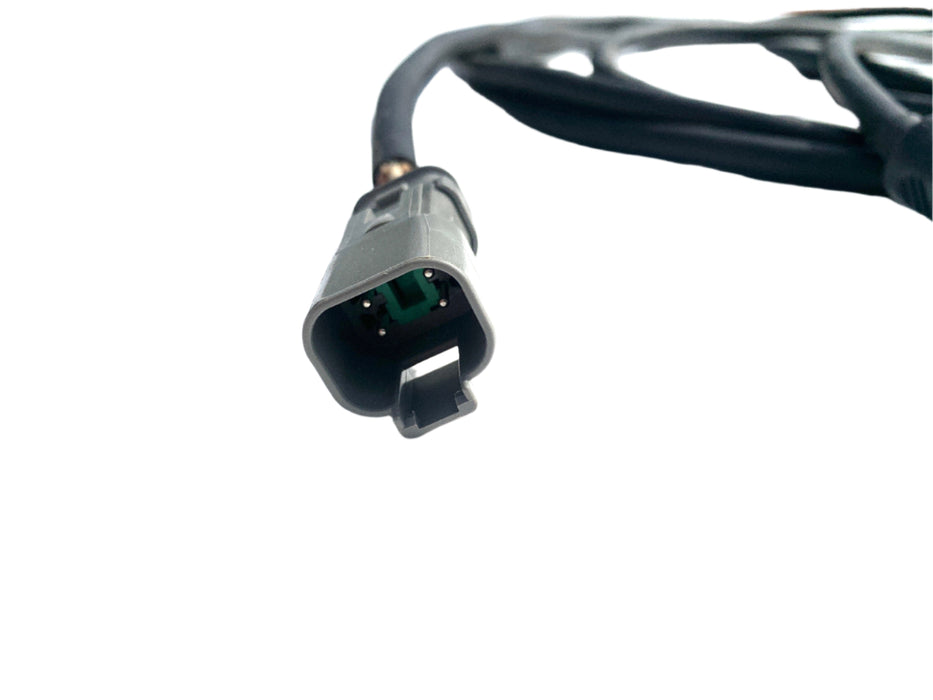

  • End connector to plug into the output adapter.

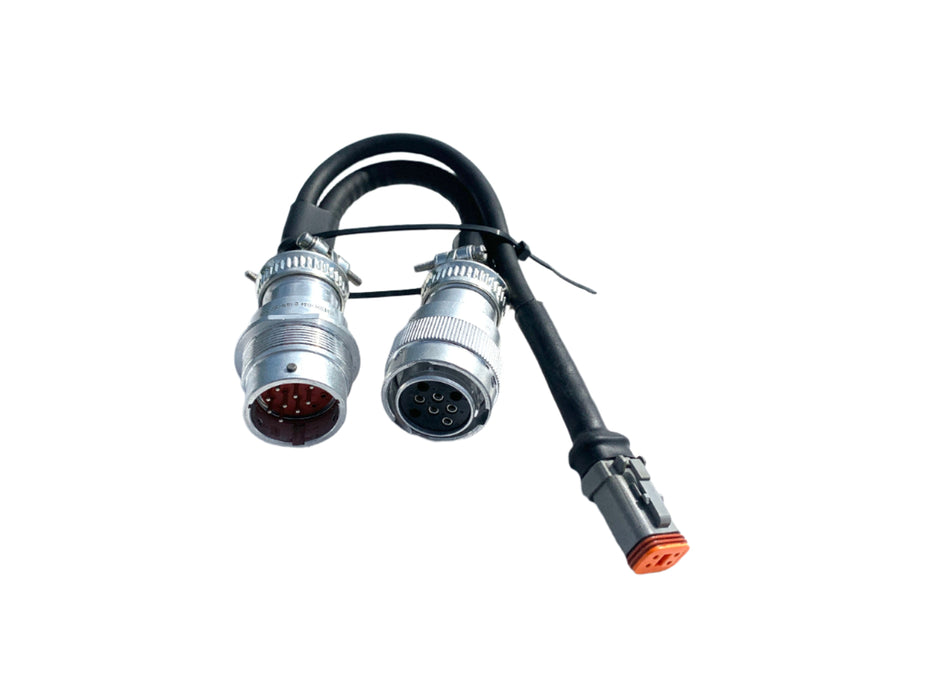

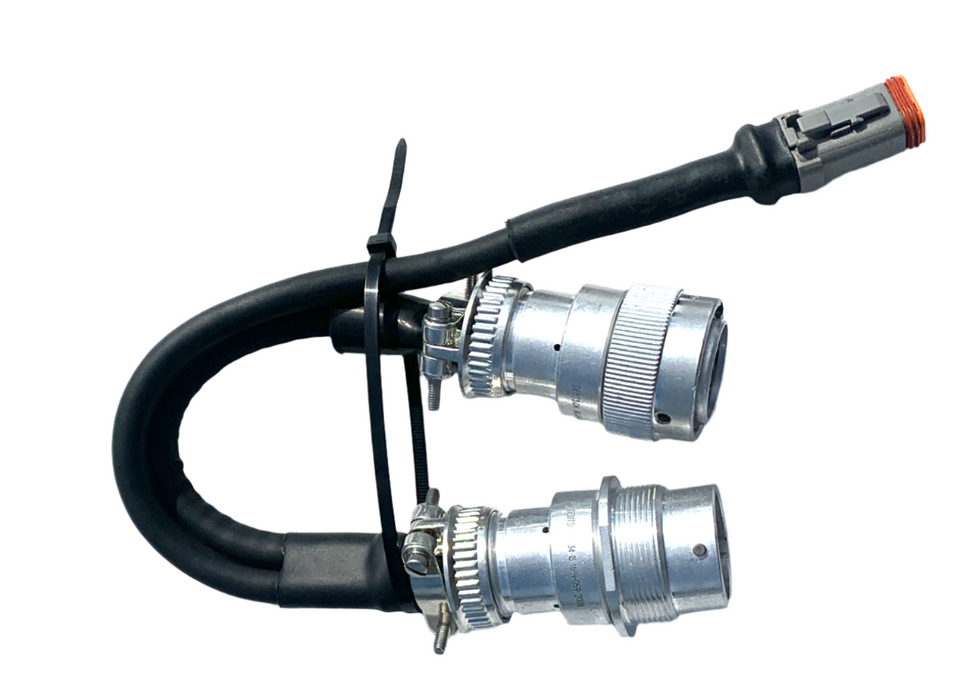

  • 14 Pin Input Adapter that connects to your machine and a 14 pin output which adds the additional circuits into the 14 pin.

Works with all 14 pin equipped machines e/w cigarette lighter plug.  john Deere requires moving the ground from A to B on the machine.

14 pin - 14 pin Injector Adapter - Use this on Old Bobcat, New Cat D-Series, New Holland, Kubota, Gehl, Mustang, etc.
