The Injector - Add On 4 Controls | 8 Pin Output Bundle
THIS IS THE 8 PIN OUTPUT BUNDLE
If you order from this page, you will receive only the switch pack and harness and an 8 pin output adapter.
This device will add 2 momentary controls and 2 locking controls to any machine which in most cases will give you 8 outputs.
Genius Control Injector Kit - CLICK HERE TO WATCH OUR VIDEO
This product was designed specifically to add controls to machines that are lacking enough for a specific attachment or to enhance their existing controls.
Here are some examples of why we created this kit.
1: Old Cat Series A Machines had one toggle so operators could only operate two functions. With our kit, they get 6. * You will have to move some pins around since the primary functions will be missing from your stock machine.
2: Old Cat 8 pin Series A,B,C, ASV and Terex use an 8 pin connection. Most attachments require a 14 pin and more controls. Our kit adds 4 controls and converts these machines to 14 pin output.
NOTE: For ABC you must move one input socket from G to H. Tool is included to do this. CLICK HERE FOR INSTRUCTIONS
How does it work?

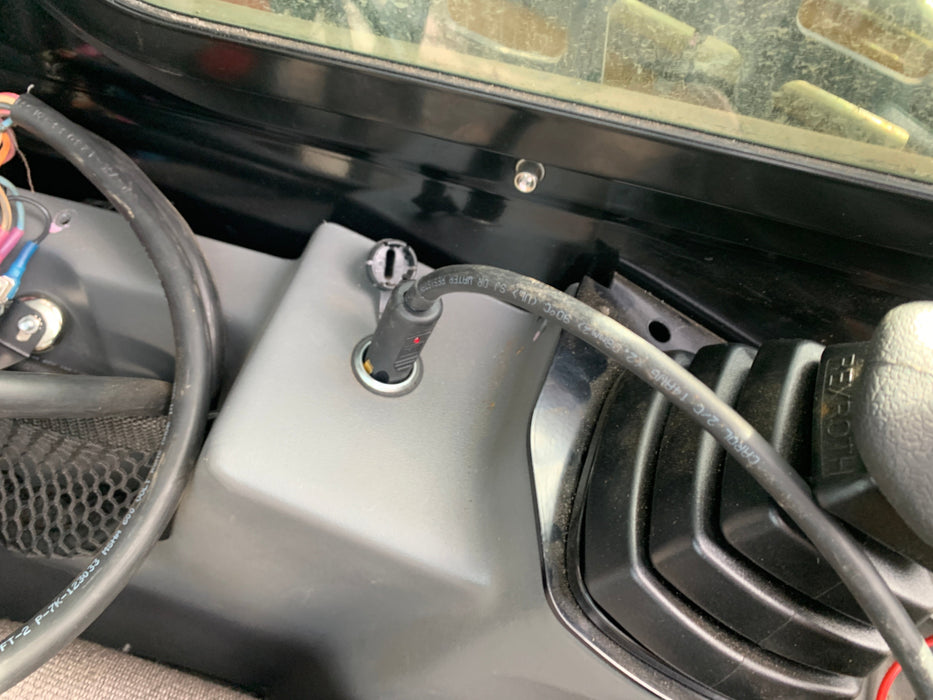

Our switch pack plugs into your cigarette lighter and provides two toggle switches to provide four additional controls to whatever your machine is already equipped with. Simply attach the switch holder inside your cab using the supplied magnets, run the output cable out the boom to the hydraulic couplers following your hoses.

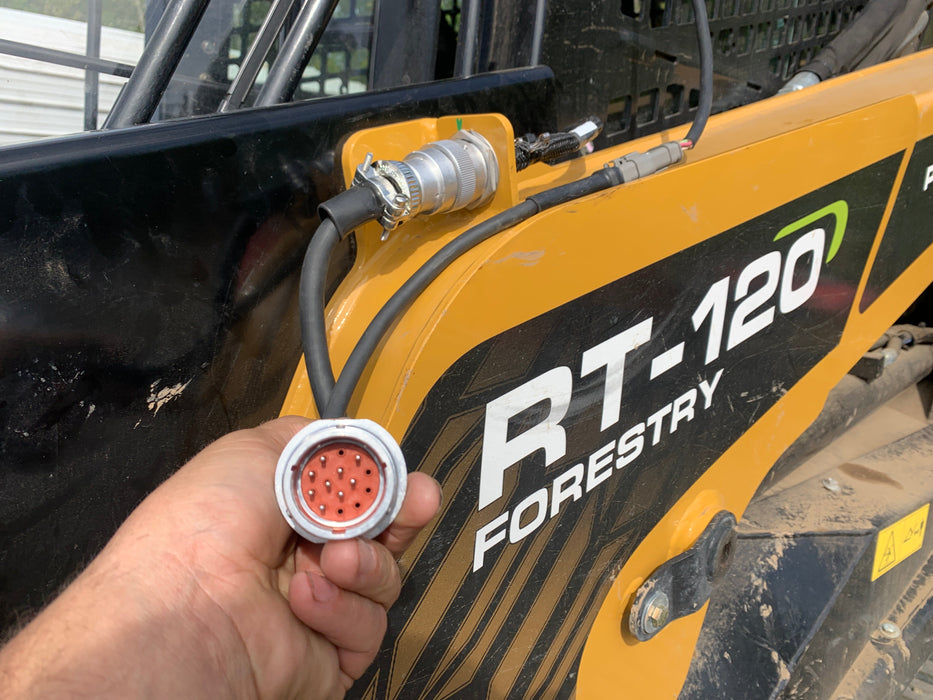

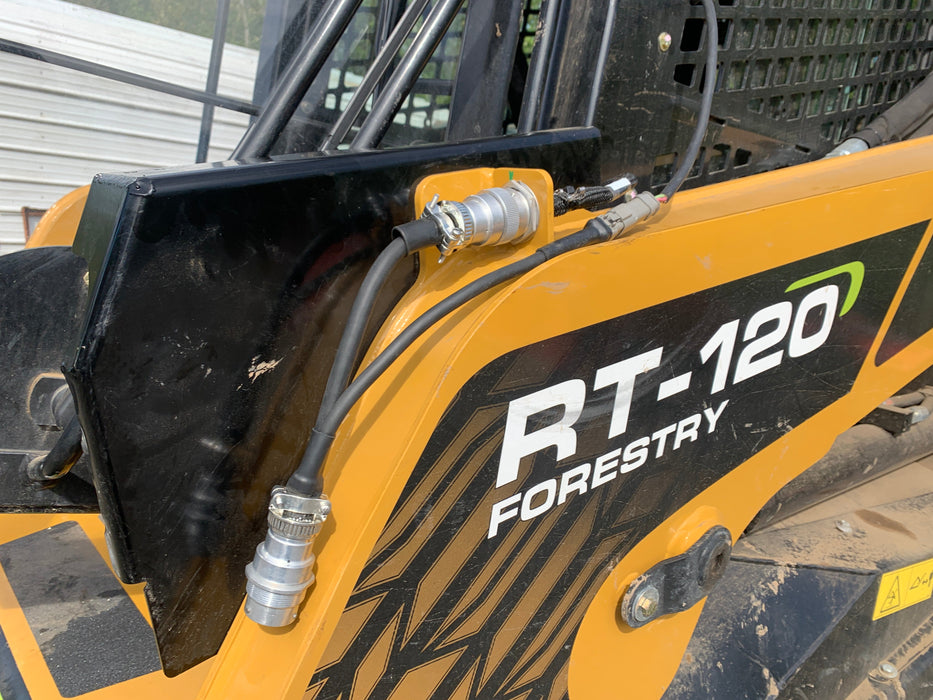

Using one of our adapters, simply plug in the connector and adapter at the end of your boom and you are ready to go.
What's included.

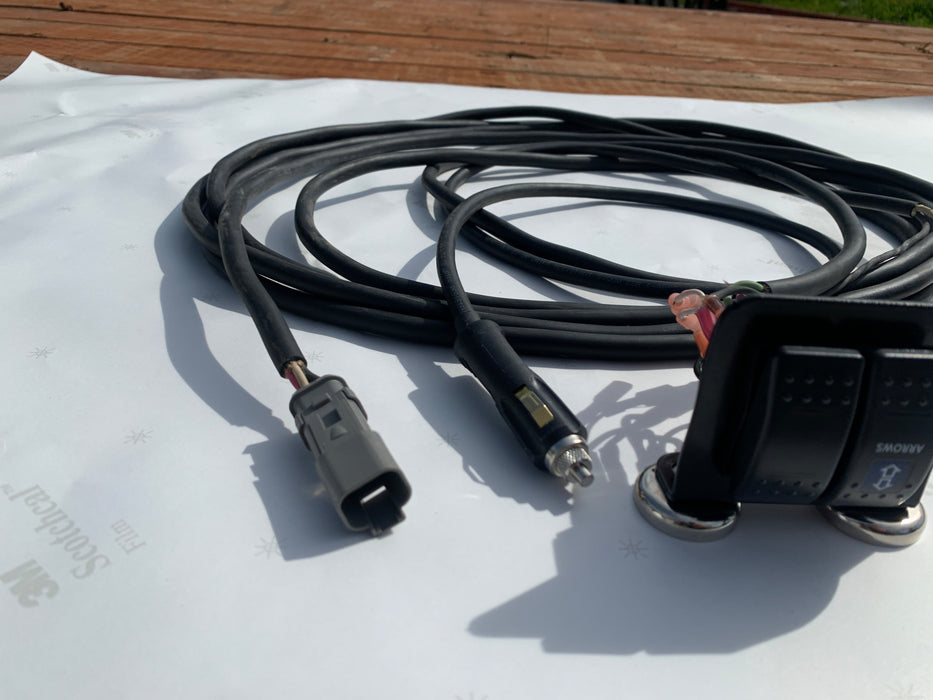

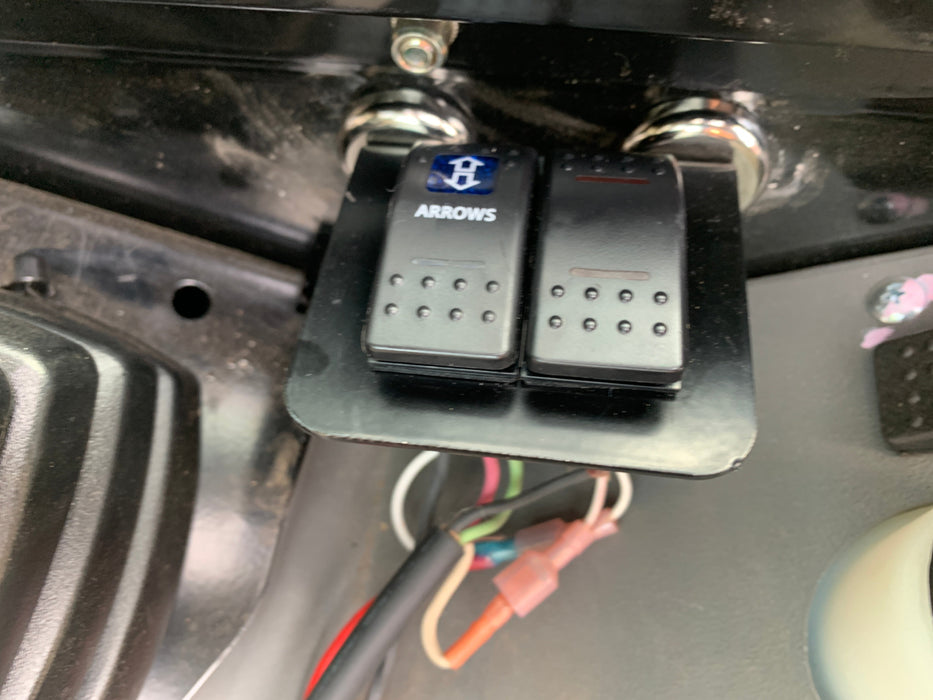

- Switch packs installed in holder with magnets attached. One toggle is momentary while one is locking so that you can switch some functions on and leave them.
- Cable set with 20 feet of extension to get out your boom.
- Cigarette style plug in for power (fused).

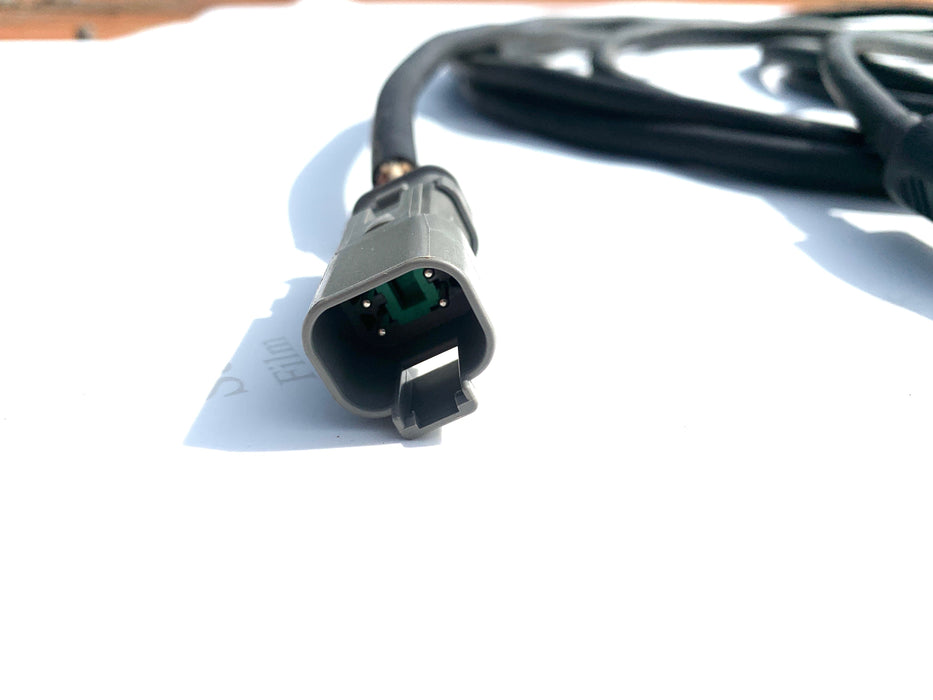

- End connector to plug into the output adapter.

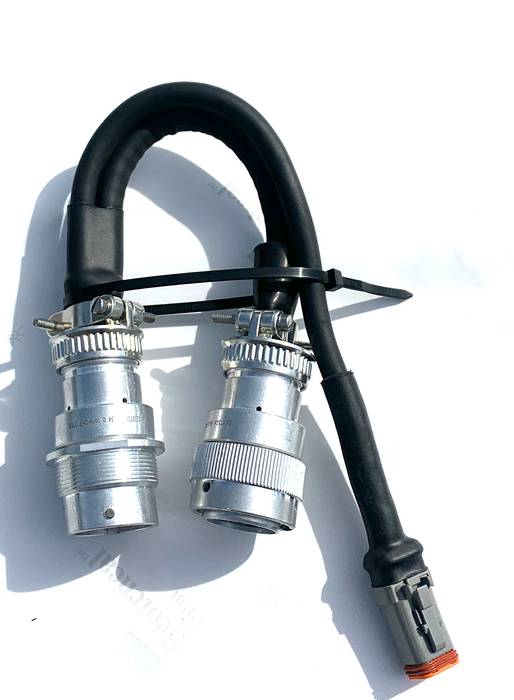

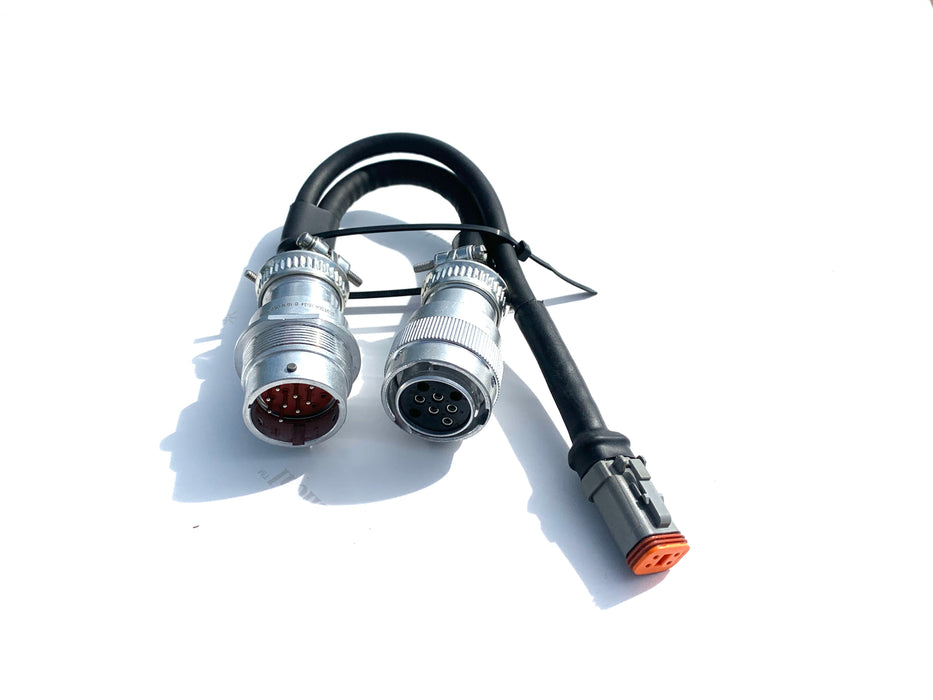

- 8 Pin adapter plugs into existing machine connector and provides a 14 pin output.
A LINK TO THE INDIVIDUAL ADAPTERS CAN BE FOUND BELOW IF YOU WANT MORE.
CLICK HERE FOR THE 14 PIN TO 14 PIN ADAPTER - SG-BC6-BC10
CLICK HERE FOR THE 8 PIN TO 14 PIN ADAPTER - SG-CT4-BC-8
_____________________________________________________________________________________
Why did we develop this product?
Customers like you asked for it. We have the experience and the know how with skid steer loaders to make things like this work easily for you. If you think that you are frustrated with the manufacturers trying to block you from freely using your attachments on any machine that you want, you should see how we feel. It still blows our minds how these companies can act like they care about their customers and then screw them over so they have to spend hundreds to undo their misdeeds.
We designed this specifically for people with 8 or 14 pin machines where you are lacking enough controls to operate attachments. We do this by adding 2 momentary switch positions and 2 locking positions on a mount with a cigarette lighter plug. You can simply throw this out your window and plug into one of our special adapters or you can choose to permanently install it through your cab. When you need to use the extra functions, you simply install the special adapter and you are off to work. This also works great for Kubota 14 pin machines where you only see 4 pins inside the 14 pin connector. Also Takeuchi and older machines often times have only 4 buttons. Some CAT D-Series low flow machines needed to be ordered with additional switches and to order them after the fact is a wallet crushing experience. You should check with us about 14 pin Cat machines because they are kind of a mess for us to figure out.
How to use it?

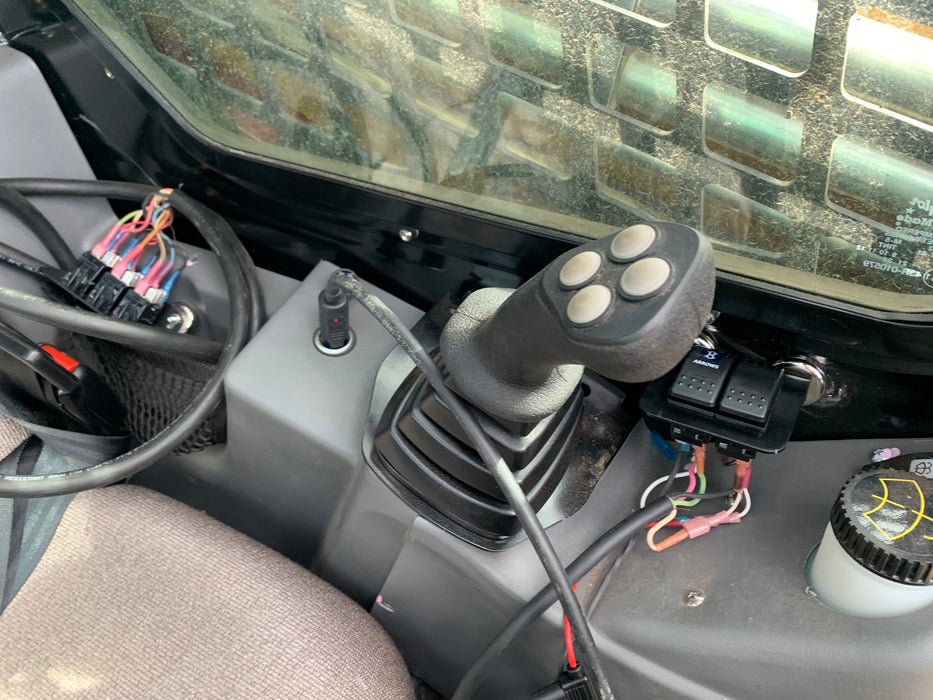

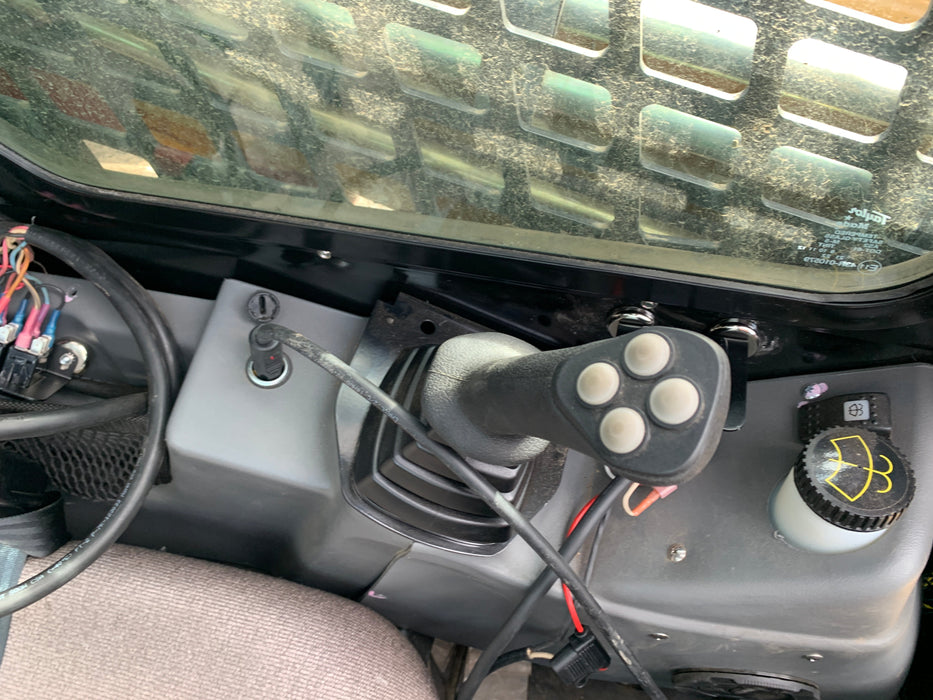

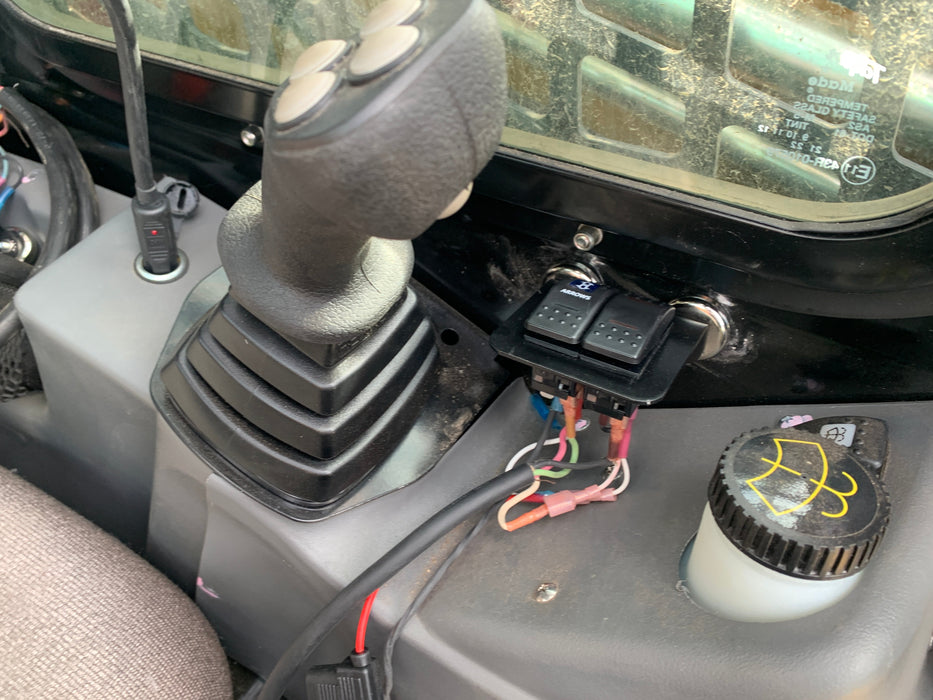

Install this handy toggle inside your cab. Use the supplied magnets to attach the bracket to your frame or use self tapping screws to permanently install it in your cab. Then all you do is run the power wire to a 12 volt source inside your cab. The output wires for 20 feet long and are designed to follow your hoses to the hydraulic couplers. Fish them through your cab and out to your boom. It is best to follow your hydraulic lines out to the boom and tie wrap the wire to the inside of the lines for protection.
Here's where it get's tricky. If you have a 14 pin machine like a Kubota, you can open up the main connector on the machine and insert the pins directly into the connector. For Kubota, it will be either pins E & F or G & H. For others, check to see if E,F,G or H are open and install in those positions only. This is only if the connector is a 14 pin.
Please read our FAQ prior to purchasing. It may save you some money.
We Also Recommend
QUESTIONS & ANSWERS
Ask a Question-
I have a 2008 New Holland L170 tire/pedal skid steer with no electronic controls for accessories. It does have aux. Hydraulic plumbing with Right stick manual control. I am attempting to attach a 72" Bobcat broom which has a 7pin connector from a 6678677 ACD controller mounted on the body of the broom. Can you help with supplying a harness/cab button controller?
We can do this very simply. I will show you this way first.
CLICK HERE FOR THE SWITCH PACK
CLICK HERE FOR THE EXTENSION HARNESSES - ORDER 2
CLICK HERE FOR ADAPTERS IF NEEDED - ORDER 2 -
Will this be appropriate to connect a Deere CP30 cold planer to a Takuechi TL12?
YES, but you must move the ground in the attachment connector.
