Machine Side Connector - Female
Fits Bobcat only. From the moment we released our attachment side kit, our email and phones have been inundated with people having the following issue. I had a tree fall on my machine and it hit the connector and ruined it. Can you get me the machine side connector as my dealer won't sell just the connector and they want me to replace the harness for over $350. Once again, our blood started to boil that such a simple item for the manufacturer to supply was made so difficult. For us it took 6 months to get the connectors and we had to buy a lot of them, but in the end our customers have come to rely on us to deliver the Genius Solutions that mean so much to them. Starting in January 2014, we will be stocking the machine side kits for a lot less than the manufacturer wants for the full harness. Just another reason to shop Skid Steer Genius for all of your product needs.

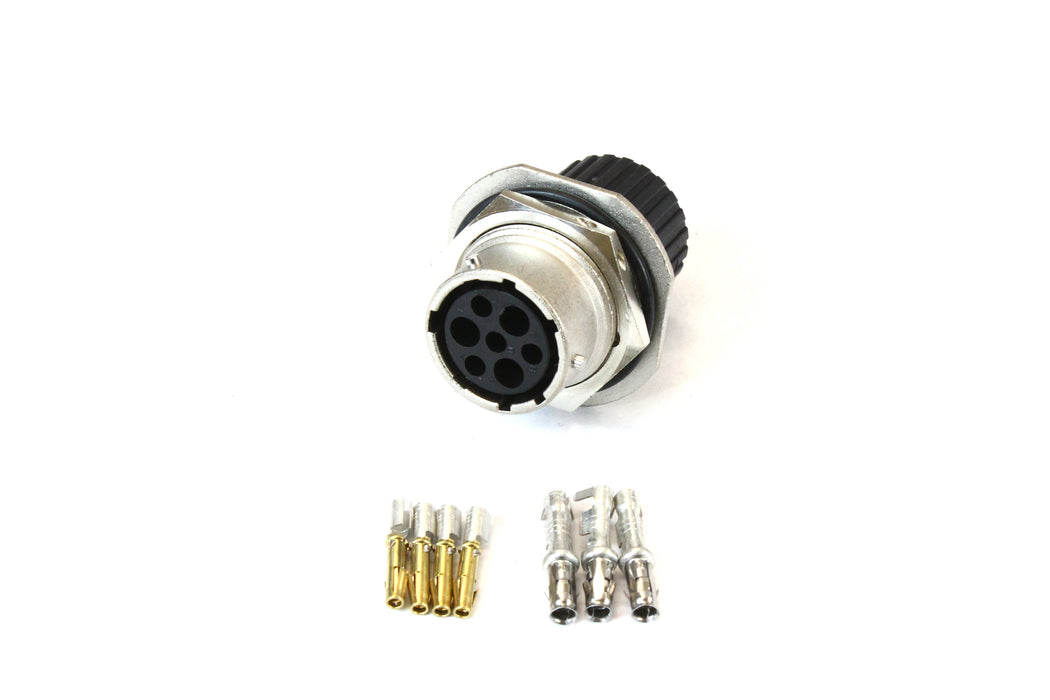

- 1 Female Trident Body
- 1 Barrel Top Cap and Seal
- 1 x Locking Nut
- 3 x Female Sockets
- 4 x Female Canbus Sockets
- Installation tool not required
- De-Installation Tool is not supplied at this time because they are very expensive. If you find something that works, please share it with us so that we can pass it on to others.
Kit does not include crimping tool or soldering tool to connect pins to wire.
About these connectors:
We have had so many customers complain that when they damage the connectors on their machines, their dealers will not sell them a new connector. Instead they are forced into buying a whole new wiring harness just to get the connector. Some of these harnesses cost as much as $500. This is crazy!
Since we buy huge volumes of the attachment side connectors, we were able to buy the machine side for the same great price. They were next to impossible to find and we finally had to blindly buy 100 units and wait for 16 weeks just to see if they were the right connectors. It has paid off for us and now it will for you. Buying these in bulk allows us to offer just the connector with pins for a much better price. We bring these in and kit them with everything you need to repair your harness. We are sure you will see just how much effort we put into this item just to save you money.
